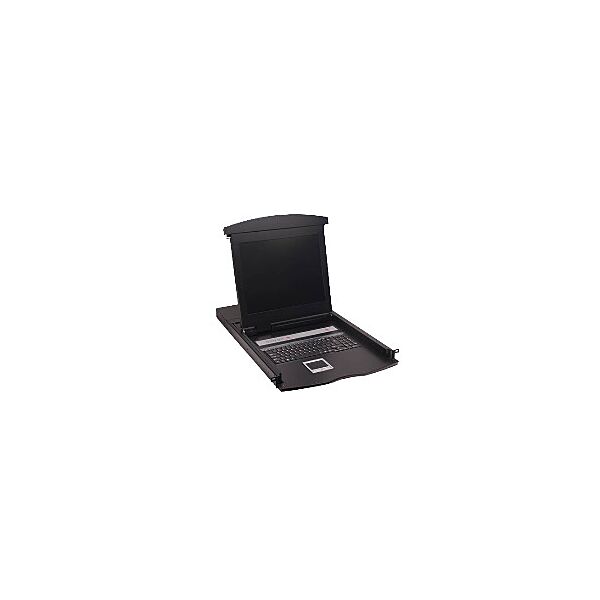

Cattex 16 Port 17" LCD KVM Console (Cables Included)

In stock
SKU
CX-1716
R 22,488.00
Quick Overview
16 Port 17" LCD KVM Console (Cables Included) Product Overview: The KVM CX-1716 control platform is a powerful and adaptable solution that merges a multi-port KVM switch into a compact 1U height chassis. This innovative platform empowers users to manage multiple computers with a single interface, including a keyboard, mouse, and monitor. Capable of handling both single and multiple PCs through direct connections, it allows control of up to 256 PCs via a 2-tier cascade connection. Quick and Easy Installation: Simple setup with direct cable connections, no software configuration needed. Intuitive Control Methods: Effortlessly manage computers using keyboard shortcuts or through the user-friendly On-Screen Display (OSD). Powerful Automatic Scanning: Automatically scan and monitor all connected computers for efficient management. Cost and Space Efficiency: Reduces resource usage, saving time and money. Consolidates control to one KVM platform, eliminating the need for individual keyboards, mice, and monitors. Slim Form Factor: 1U height makes it perfect for standard 19" cabinet installations; sturdy metal construction ensures durability. Enhanced Display Options: Available with a crisp 17” LCD screen and high-resolution 19” widescreen, ensuring clear and bright visuals. Exceptional Flexibility: Fully extendable from the cabinet with the LCD screen tiltable up to 120 degrees for added convenience. Versatile Input Devices: Includes an ultra-thin keyboard with a keypad and a responsive mouse touchpad with function buttons. Robust Security Features: Equipped with a front panel lock to prevent accidental damage. Additional Convenience: Comes with an extra power adapter and automatic power on/off feature for energy efficiency. User-Friendly Interface: Navigate and configure effortlessly with the intuitive OSD menu. Technical Details: LCD Monitor: 17” Screen, 4:3 Ratio SXGA TFT-LCD with high brightness and clarity Resolution: 1280x1024@60HZ (Optimal) / 1920x1200@60HZ (Max) 16.7M colors, 1000:1 contrast ratio Long-lasting LED backlight with 100,000 hours MTBF Keyboard: 100 key detachable design Supports multiple languages Compatible with various Windows operating systems Mouse: Responsive touch screen High X/Y resolution Durable design with over 1,000,000 usage times Connections & Dimensions: Directly connects to 16 PCs, expandable to 256 Multi-functional port selection including OSD, front panel buttons, and optional remote control Compact dimensions: 407 x 445 x 45mm, weighing 6.15kg LED Indicators & Operating Conditions: Displays connection and activity status Operates efficiently in a variety of environments with temperatures ranging from -10 to 50˚C Invest in the 16 Port 17" LCD KVM Console today and streamline your computer management with a single, highly efficient platform.
16 Port 17" LCD KVM Console (Cables Included)

Product Overview:

The KVM CX-1716 control platform is a powerful and adaptable solution that merges a multi-port KVM switch into a compact 1U height chassis. This innovative platform empowers users to manage multiple computers with a single interface, including a keyboard, mouse, and monitor. Capable of handling both single and multiple PCs through direct connections, it allows control of up to 256 PCs via a 2-tier cascade connection.

  • Quick and Easy Installation: Simple setup with direct cable connections, no software configuration needed.
  • Intuitive Control Methods: Effortlessly manage computers using keyboard shortcuts or through the user-friendly On-Screen Display (OSD).
  • Powerful Automatic Scanning: Automatically scan and monitor all connected computers for efficient management.
  • Cost and Space Efficiency: Reduces resource usage, saving time and money. Consolidates control to one KVM platform, eliminating the need for individual keyboards, mice, and monitors.
  • Slim Form Factor: 1U height makes it perfect for standard 19" cabinet installations; sturdy metal construction ensures durability.
  • Enhanced Display Options: Available with a crisp 17” LCD screen and high-resolution 19” widescreen, ensuring clear and bright visuals.
  • Exceptional Flexibility: Fully extendable from the cabinet with the LCD screen tiltable up to 120 degrees for added convenience.
  • Versatile Input Devices: Includes an ultra-thin keyboard with a keypad and a responsive mouse touchpad with function buttons.
  • Robust Security Features: Equipped with a front panel lock to prevent accidental damage.
  • Additional Convenience: Comes with an extra power adapter and automatic power on/off feature for energy efficiency.
  • User-Friendly Interface: Navigate and configure effortlessly with the intuitive OSD menu.

Technical Details:

LCD Monitor:

  • 17” Screen, 4:3 Ratio
  • SXGA TFT-LCD with high brightness and clarity
  • Resolution: 1280x1024@60HZ (Optimal) / 1920x1200@60HZ (Max)
  • 16.7M colors, 1000:1 contrast ratio
  • Long-lasting LED backlight with 100,000 hours MTBF

Keyboard:

  • 100 key detachable design
  • Supports multiple languages
  • Compatible with various Windows operating systems

Mouse:

  • Responsive touch screen
  • High X/Y resolution
  • Durable design with over 1,000,000 usage times

Connections & Dimensions:

  • Directly connects to 16 PCs, expandable to 256
  • Multi-functional port selection including OSD, front panel buttons, and optional remote control
  • Compact dimensions: 407 x 445 x 45mm, weighing 6.15kg

LED Indicators & Operating Conditions:

  • Displays connection and activity status
  • Operates efficiently in a variety of environments with temperatures ranging from -10 to 50˚C

Invest in the 16 Port 17" LCD KVM Console today and streamline your computer management with a single, highly efficient platform.

More Information
SKUCX-1716
ManufacturerCattex

Type 17” LCD Console - CX-1716

LCD Monitor:

  • Ratio: 17” Screen, 4:3
  • Video: SXGA TFT-LCD
  • Visible Square: 337.920(H) × 270.336(V)
  • Resolution: 12801024@60HZ (Optimum) / 19201200@60HZ (Max)
  • Support Color: 16.7M (RGB 6 bit + Hi_FRC)
  • Contrast: 1000:1 (Typ)
  • Backlight: LED
  • Pixel Pitch: 0.264x0.297mm
  • LED MTBF: 100,000 hours
  • Input Power: 12V

Keyboard (Demountable Design):

  • 100 Keys, detachable
  • 9 different languages for choose
  • Compatible with IBM/AT, Microsoft Windows 9, Me/NT/2000/XP, WIN7, Server2003, WIN8, WIN10
  • Port: Standard PS/2; USB
  • Using Life: >1,000,000 Times

Mouse:

  • Type: Touch Screen
  • Port: Standard PS/2
  • X/Y Resolution: >1000dots/inch (40x40/mm)
  • Using Life: >1,000,000 Times

Installation Dimension: 40744545mm

Weight: 6.15kg

Type 16 Port (ULSV16):

  • Model No. (Completed Device): AS7100ULS(F)+ULSV16 (CX-1716)
  • Computer Connection: Direct Connects 16
  • Maximum Connects: 256
  • CPU Port Selection: OSD Menu, Front panel buttons, Hot Key, IP Remote Control (Optional)

Connectors:

  • Console Connector: DB 37PIN
  • PC Connector (Monitor, Keyboard/Mouse Switch Module): 16 x VGA DB15, Female Blue
  • Power: 1 x DC Jack
  • Network Port: 1 x RJ45 (Optional)

Key Switch Connection:

  • Port Selection: KVM Operation Panel Digital keys
  • KVM Reset: KVM Operation Panel Function Keys
  • IP Module Reset: 1 x semi-embedded key
  • IP Module Default: 1 x semi-embedded key

LED’s:

  • Selected: Nixie Tube Display
  • Online: 16 x Red
  • IP Network: 1 x Green, 1 x Orange

Analog Mode:

  • Keyboard/Mouse: USB, PS/2
  • Resolution (Max): 1920 x 1200 @ 60HZ Local & Remote
  • Scan time interval: 3, 5, 10, 15, 20, 30, 40, 60s (3s by default)

Operating Environment:

  • Operating temperature: -10-50˚C
  • Storage temperature: -20-60˚C
  • Humidity: 0-80%RH, No Condensation

Physical Properties:

  • Housing: Metal
  • Dimension: 148.444545mm
  • Weight: 4.96kg
