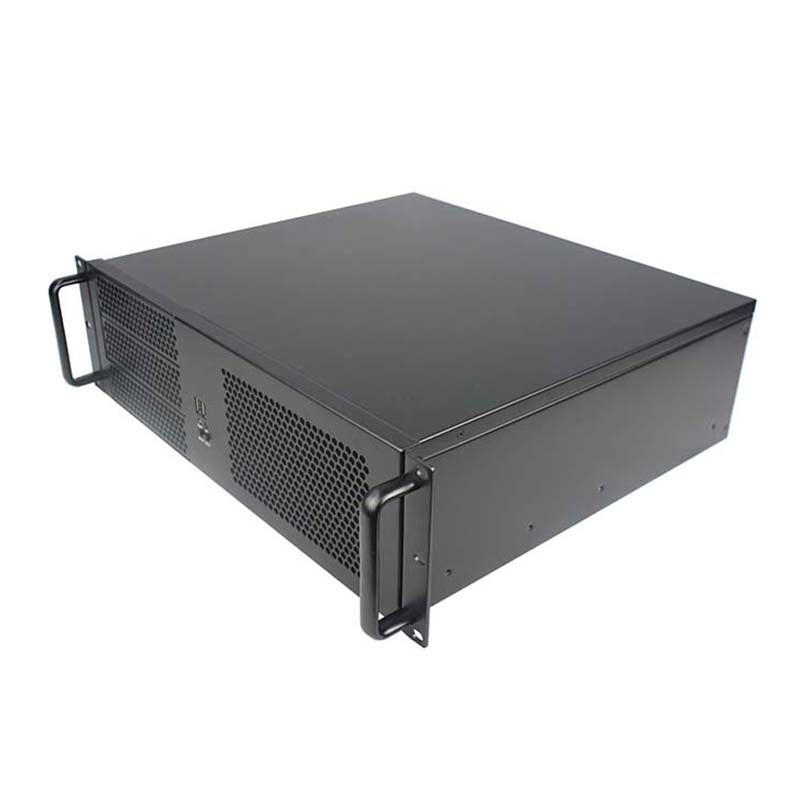

Introducing the K339F Industrial Case Module, a robust and versatile solution for your industrial needs. Here are the key features and technical specifications:
Product Feature:
Design: 19-inch rack-mounted design with a sturdy 390mm frame.
Buttons and Indicators: Equipped with front-installed ON/OFF Button, Restart Button, Power Indicator, HD Indicator, and Two USB 2.0 ports for convenient accessibility.
Technical Parameters:
Dimensions: Compact dimensions measuring 482(W) * 390(D) * 133MM(H) for space efficiency.
Main Board: Supports a 12" * 9.6" (305 * 245MM) main board, providing compatibility with various setups.
Hard Disk: Accommodates up to eight 3.5-inch Hard Disks, offering ample storage capacity.
CD-ROM: Features space for three 5.25-inch CD-ROMs for additional functionality.
Power: Compatible with ATX PSU, ensuring reliable and efficient power supply.
Fan: Includes two 8025 Fans for effective cooling and temperature management.
Expansion Slot: Five Full High and Straight Slots for enhanced expansion capabilities, allowing you to customize your setup.
Panel Setting: Front panel with Two USB 2.0 ports, One Power Switch, One Restart Switch, One Power Indicator, and One HD Indicator for user-friendly control.
Case Material: Constructed with Ma Steel flowers-free zinc plating for durability and corrosion resistance.
Material Thickness: Sturdy build with 1.0MM material thickness for long-lasting performance.
Choose the K339F Industrial Case Module for a reliable and feature-rich solution that meets the demands of your industrial applications.
Featuring 19-inch rack-mounted design and 390mm frame, it is equipped with front-installed ON/OFF Button, Restart Button, Power Indicator, HD Indicator and Two USB2.0 ports.
Technical Parameters:
Dimensions
482(W)*390(D)*133MM(H)
Main Board
12"*9.6"(305*245MM)
Hard Disk
Eight 3.5-inch Hard Disks
CD-ROM
Three 5.25-inch CD-ROMs
Power
ATX PSU
Fan
Two 8025 Fans
Expansion Slot
Five Full High and Straight Slot
Panel Setting
Two USB2.0; One Power Switch; One Restart Switch; One Power Indicator and One HD Indicator
