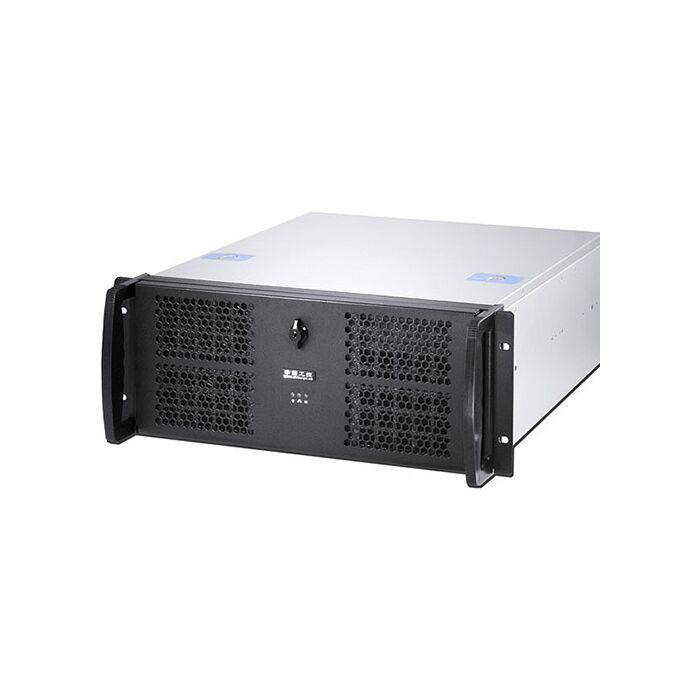

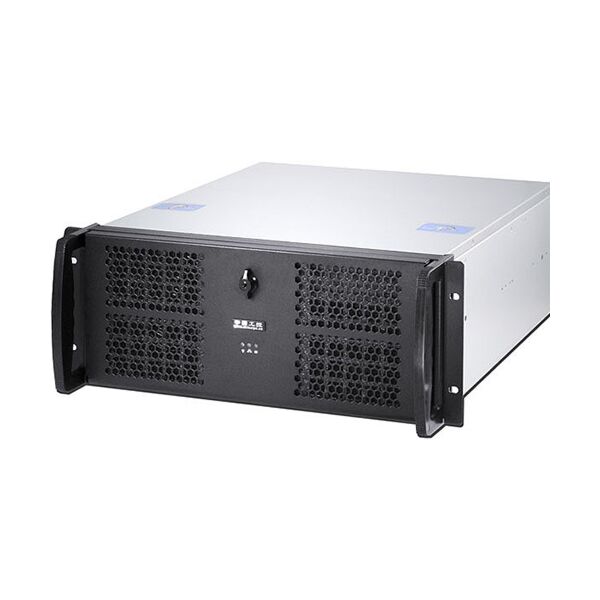

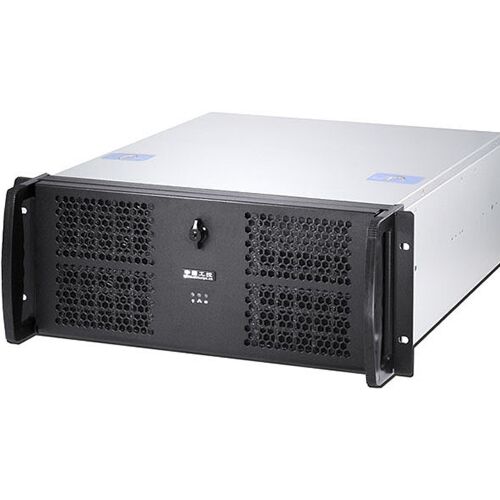

4U Rackmount Server Chassis / PC Case Empty - 450mm Deep - No PSU
Unleash Performance: The Ultimate 4U Rackmount Server Chassis - 450mm Deep
This advanced 4U Rackmount Case, identified by SKU: 4U-450RX, is meticulously engineered for those who demand outstanding performance and reliability. Perfect for tech enthusiasts, IT professionals, and engineers crafting custom server or high-end PC builds.
Technical Specifications:
- Drive Capability: Accommodates up to three 5.25″ optical drives and a maximum of seven 3.5″ hard drives, optimized for ATX motherboard deployment.
- Vibration Control: All drive bays include damping functions designed to minimize vibration, enhancing your storage lifespan.
- Security Features: Front door protection with a butterfly security key lock and an easily removable dust air filter.
- Design Elements: Experience a screwless, hand-free top cover; conventional screws can also be used for added stability.
- Construction: Built from robust 1.2mm to 2.0mm thickness SGCC sheet metal for unrivaled durability.
- Connectivity & Indicators: Includes two USB 2.0 ports with optional USB 3.0, alongside LAN, HDD, and Power LED indicators on the front bezel.
- Cooling System: Equipped with a 120mm x 25mm intake fan at the front (model D12SM-12) and adjustable rear panel with two 80mm x 25mm ABS fan brackets (optional fans).
- Compatibility: Supports EEB, CEB, ATX, MicroATX, and Mini-ITX motherboard formats.
- Expansion Cards: Facilitates seven full-height expansion cards; max depth of 240mm with front-installed HDD, and 320mm without.
- Finish: Front chassis finished in a scratch-resistant, textured black paint to assure sleek aesthetics and long-lasting appeal.
- Power Supply Support: Compatible with 8cm or larger PS2 PSU standards, plus specific SureStar and Zippy mini redundant PS from 300W to 800W.
- Manufacturer: Cattex – your trusted partner in advanced tech solutions.
Embrace supreme efficiency with the 4U-450RX – a cornerstone of your IT infrastructure. Get yours today and revolutionize your technical environment.
* Drive Space: Three 5.25″ ODD bay & Seven 3.5″ HDD bay (max. 7 HDD allowed if ATX MB installed)
* All drive bays equipped with damping function to reduce vibration & extend storage life
* Equipped with front door by a butterfly security key lock & with removable dust air filter function
* Screwless hand-free top cover design (screws can also be used & fixed)
* The main sheet metal constructed by 1.2mm~2.0mm SGCC thickness mechanism
* Equipped with two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)
* Standard with one brand new 120mmx25mm intake fan at front (fan part# D12SM-12)
* Adjustable hold-down card holder with 7 upward & downward adjustable clamps
* Build-in two 80mmx25mm ABS screwless fan brackets at rear panel (fans are option)
* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140mm~260mm)
* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)
* Compatible MB: EEB 12″×13″, CEB 12″×10.5″, ATX 12″x9.6″, MicroATX 9.6″x9.6″, Mini-ITX 6.7″x6.7″
* Support 7 full height expansion cards (max. 240mm deep if HDD installed at front)
* Support 7 full height expansion cards (max. 320mm deep if no HDD installed at front)
* Standard paint: scratch-resistant black textured at front side of chassis
| Estimated Shipping Weight | 15.000000 |
|---|---|
| Estimated Shipping Length | 62 |
| Estimated Shipping Width | 57 |
| Estimated Shipping Height | 26.5 |
