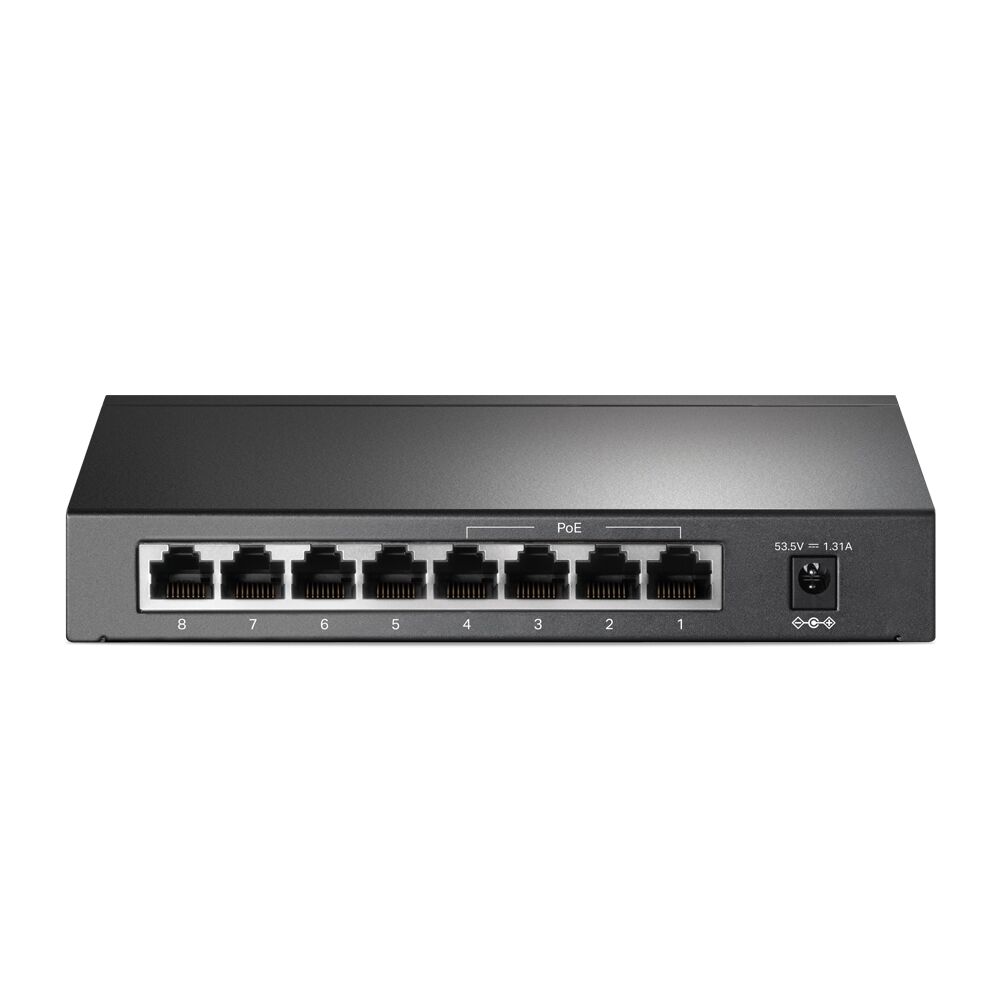

8-Port 10/100Mbps Desktop Switch with 4-Port PoE | TL-SF1008LP
Quick Overview TP-LINK SF1008LP 8 PORT 10/100MPS DESKTOP POE SWITCH WITH 4 PORT POE.
Details
TP-LINK SF1008LP 8 PORT 10/100MPS DESKTOP POE SWITCH WITH 4 PORT POE
Technical Details
| Interface | • 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
• AUTO Negotiation
• AUTO MDI/MDIX |
|---|
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m) |
|---|
| Fan Quantity | Fanless |
|---|
| Physical Security Lock | Yes |
|---|
| External Power Supply | External Power Adapter (Output: 53.5 V DC / 0.81 A) |
|---|
| Packet Forwarding Rate | 1.1904 Mpps |
|---|
| PoE Ports (RJ45) | • Standard: 802.3 af compliant
• PoE Ports: Ports 1–4
• Power Supply: 41 W |
|---|
| Mac Address Table | 2K |
|---|
| Jumbo Frame | 2 KB |
|---|
| Switching Capacity | 1.6 Gbps |
|---|
| Dimensions ( W x D x H ) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
|---|
| Max Power Consumption | • 2.2 W (220 V/ 50 Hz. no PD connected)
• 47.1 W (220 V/ 50 Hz. with 41 W PD connected) |
|---|
| Max Heat Dissipation | • 7.5 BTU/h(no PD connected)
• 160.61 BTU/h(with 41 W PD connected) |
|---|
| SOFTWARE FEATURES |
|---|
| Transmission Method | Store-And-Forward |
|---|
| Advanced Functions | • Compatible With IEEE 802.3af Compliant PDs
• Extend Mode Button (Ports 1–4)
• Priority Mode Button (Ports 1–2)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
|---|
More Information
More Information| SKU | TL-SF1008LP |
|---|
| Last Updated (Price & Stock) | Mar 6, 2025 |
|---|
| Manufacturer | TP-Link |
|---|
