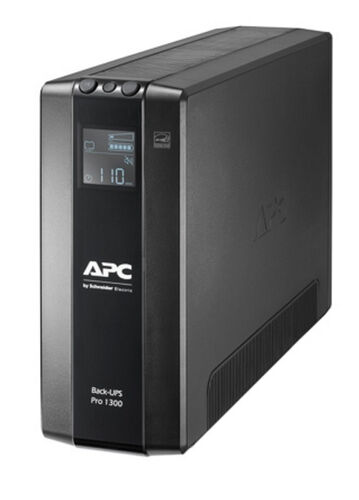

APC Back-UPS Pro, 1300VA/780W, Tower, 230V, 8x IEC C13 outlets, AVR, LCD, User Replaceable Battery BR1300M
This APC Back-UPS Pro BR1300MI offers premium power protection for high performance computer systems, routers/modems, external storage devices, game consoles and other electronics in your home or business. The 1300VA tower UPS has 8 total outlets, 6 of which are battery back up and surge protection, and 2 that are surge protection only. It has a surge energy rating of 509 Joules. This UPS is UL1778 Listed. Its dimensions are 33 x 48.5 x 22.5 cm and 10.2 kg. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics. This UPS has a 2-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
|
Run time for load
Min-max: 78-780 W
|
2min 8s
|
|---|---|
|
Max. Capacity Used
|
100 %
|
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power in W | 780 W |
| rated power in VA | 1300 VA |
| Product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | IEC 60320 C13 |
| output connection type | 6 IEC 60320 C13 2 IEC 60320 C13 surge |
| Battery type | Lead-acid battery |
| Range of product | Back-UPS Pro |
| Run Time | |
|---|---|
| Efficiency | |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 16 h |
| Number of battery replacement quantity | 1 |
| Battery voltage | 24 V |
| Battery capacity | 6.0 Ah |
| Battery charger power | 11 W rated |
| Battery life | 3…5 year(s) |
| Replacement battery APCRBC165 |
| Provided equipment | user manual USB cable |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Colour | Black |
|---|---|
| Height | 10 cm |
| Width | 25 cm |
| Depth | 38.2 cm |
| Net weight | 10.2 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
|---|---|
| Input voltage limits | 176...294 V |
| Maximum input current | 10 A |
| Switching current capacity | 10 A |
| Maximum configurable power in W | 780 W |
|---|---|
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains |
| UPS type | Line interactive |
| Maximum configurable power in VA | 1300 VA |
| Product certifications | A-Tick C-Tick CE EAC RCM TISI |
|---|---|
| Marking | GS Mark |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -15…45 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0.0000000000…15240.0000000000 m |
| Acoustic level | 45 dBA |
| Heat dissipation | 21.5 Btu/h |
| control panel | Multifunction LCD status and control console |
|---|---|
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 509 J |
|---|---|
| Noise suppression | Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous |
| Estimated Shipping Weight | 12.450000 |
|---|---|
| Estimated Shipping Length | 49 |
| Estimated Shipping Width | 24 |
| Estimated Shipping Height | 36 |
