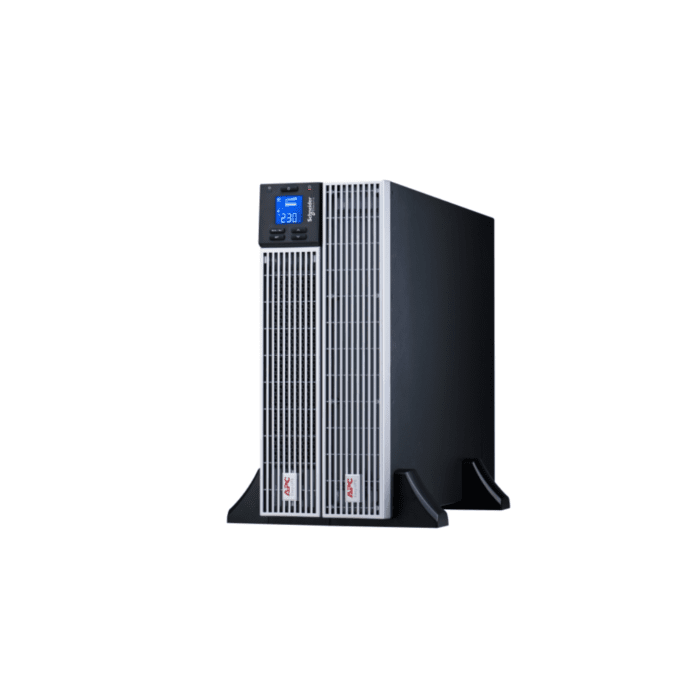

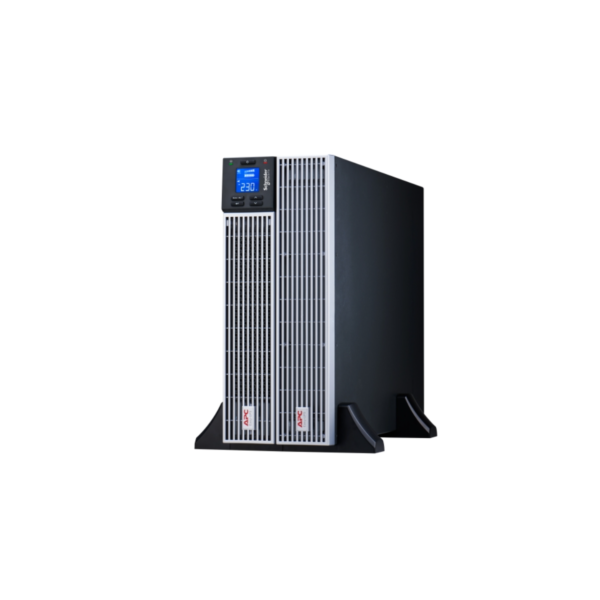

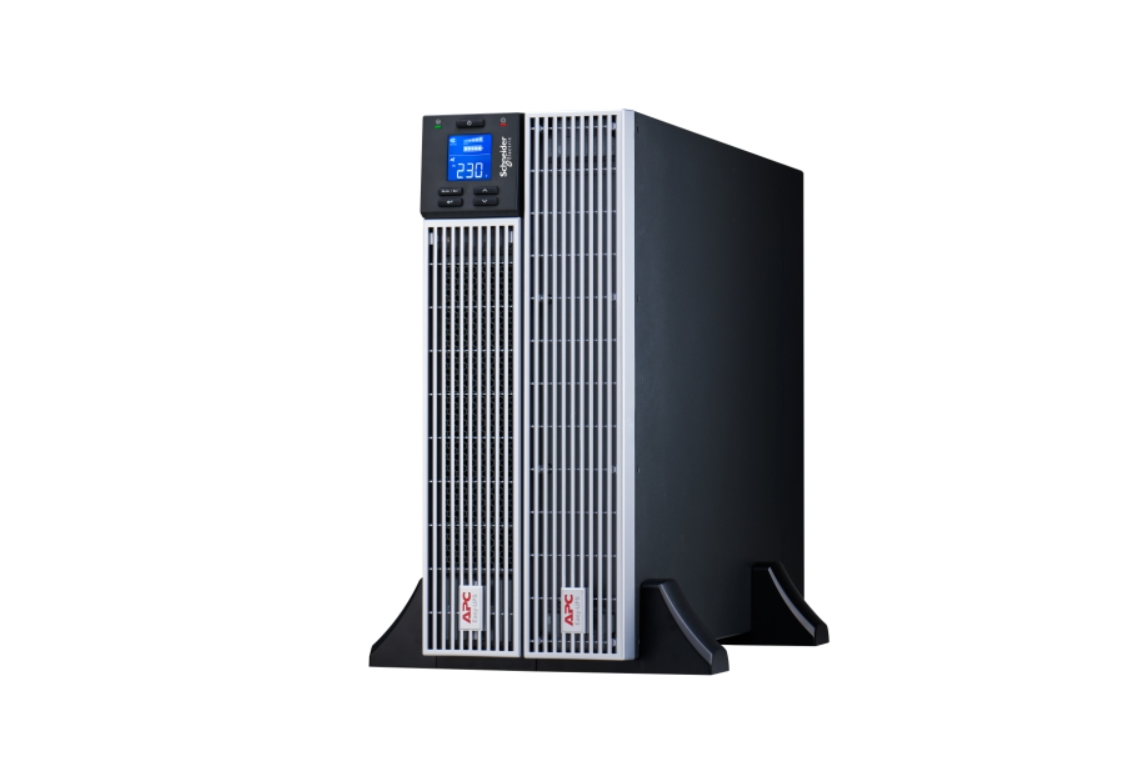

APC Easy UPS On-Line, 2000VA, Lithium-ion, Rack/Tower 4U, 230V, 6 IEC C13 outlets, Intelligent Card Slot, Extended runtime, W/ rail kit
This APC Single phase Easy UPS SRVL2KRILRK is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2000VA double-conversion on-line 4U rackmount lithium-ion UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRVL comes with IEC320 C20 input and 6x IEC320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. With purchased Network Management Card and license, the UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Emergency Power Off (EPO) function can remotely shut off the UPS in an emergency. It's ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. The UPS has a 3-year warranty and Lithium-Ion battery has a 5-year warranty. The SRVL comes with a easy-to-read 90 degree rotatable LCD display for detailed and accurate information on UPS status. This lithium-ion UPS is ideal for Micro data centers, Surveillance, Server rooms, POS, and Healthcare IT. Rack/ Tower convertible design with default accessory kit.
Main
Run time for load
1800
W
Min-max: 180-1800 W
1h 5min
Max. Capacity Used
100 %
Main Input Voltage
230 V
Product or component type
Uninterruptible power supply (UPS)
Other Input Voltage
230 V
Main Output Voltage
230 V
Other Output Voltage
220 V
240 V
Rated power in W
1800 W
rated power in VA
2000 VA
Input Connection Type
IEC 60320 C20
output connection type
6 IEC 60320 C13
Number of rack unit
4U
Provided equipment
Basic UPS signalling RS-232 cable
USB cable
RJ45 cable
RJ11 cable
C13-C14 power cord
IEC-C20 - Shuko input power cord
Rack mounting brackets
Stabilization feet
User manual
Safety guide
Battery cable
Range of product
Easy UPS On-Line
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Battery type
Li-Ion (Lithium-Ion)
Battery voltage
48 V
Extended runtime
1
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
4.8 h
Battery life
8…10 year(s)
Battery charger power
480 W
General
Number of power module filled slots
0
Number of power module free slots
0
Redundant
No
Physical
Colour
Black with silver front bezel
Height
17.2 cm
Width
43.8 cm
Depth
61.6 cm
Net weight
37.1 kg
USB compatible
Yes
Mounting position
Horizontal and vertical
Input
Input voltage limits
160...300 V full load
110...300 V 60 % load
Network frequency
40...70 Hz auto-sensing
Output
Maximum configurable power in VA
2000 VA
Maximum configurable power in W
1800 W
Output frequency
50/60 Hz +/- 3 Hz sync to mains
UPS type
Double conversion online
Wave type
Sine wave
Efficiency
90 % (full load)
Bypass type
Internal bypass (automatic and manual)
Crest factor
3 : 1
Conformance
Product certifications
CB
CE
RCM
EAC
TISI
UKCA
KC
UN 38.3
IEC 62619
Environmental
Ambient air temperature for operation
0…40 °C
Relative humidity
0…95 % non-condensing
Operating altitude
0...3000 m
Ambient air temperature for storage
-20…50 °C
Storage Relative Humidity
0…95 % non-condensing
Storage altitude
0…15000 m
Acoustic level
50 dBA
Heat dissipation
683 Btu/h
IP degree of protection
IP20
Communications & Management
Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off
Yes
control panel
Multifunction LCD status and control console
Surge Protection and Filtering
Surge energy rate
945 J
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
48 cm
Package 1 Width
8 cm
Package 1 Length
60 cm
Package 1 Weight
50.15 kg
Contractual warranty
Warranty
3 years UPS repair or replace; 5 years battery repair or replace
| Estimated Shipping Weight | 60.000000 |
|---|---|
| Estimated Shipping Length | 114 |
| Estimated Shipping Width | 83 |
| Estimated Shipping Height | 72 |
