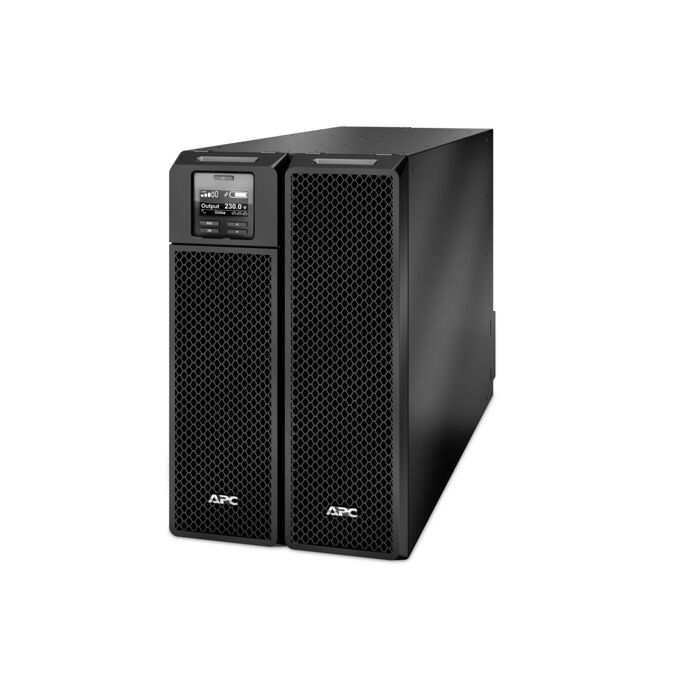

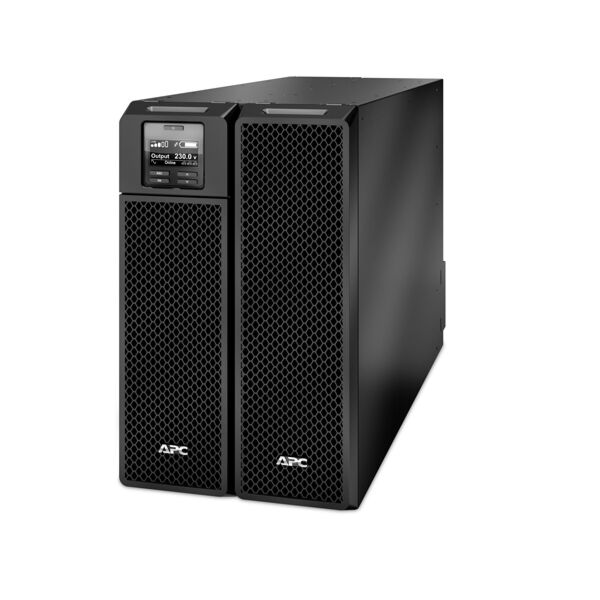

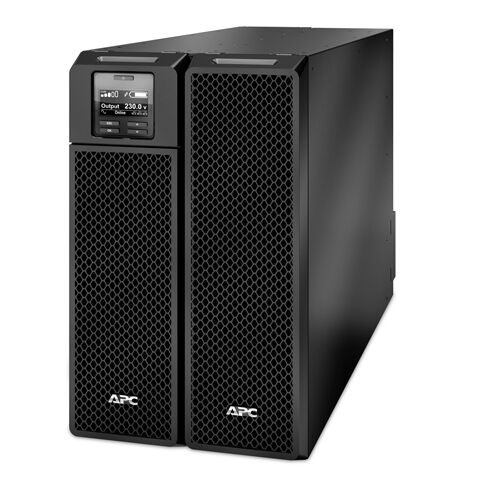

APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit
This APC Smart-UPS SRT10KXLI is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.
Main
Run time for load
10000
W
Min-max: 1000-10000 W
3min 45s
Max. Capacity Used
100 %
Main Input Voltage
230 V
400 V 3 phases
Product or component type
Uninterruptible power supply (UPS)
Other Input Voltage
220 V
240 V
380 V
415 V
Main Output Voltage
230 V
Other Output Voltage
220 V
240 V
Rated power in W
10000 W
rated power in VA
10000 VA
output connection type
6 IEC 60320 C13
3 IEC Jumpers
4 IEC 60320 C19
Output connector type
Hard wire 3-wire (H N + E) 1
Provided equipment
CD with software
Documentation CD
Installation guide
Temperature probe
USB cable
Warranty card
Web/SNMP management card
Range of product
Smart-UPS On-Line
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Battery type
Lead-acid battery
Battery voltage
+/- 192 V (split battery referenced to neutral)
Extended runtime
1
Number of battery filled slots
0
Battery recharge time
1.5 h
Number of battery replacement quantity
2
Battery life
3…5 year(s)
Replacement battery
APCRBC140
Battery charger power
876 W rated
General
Number of power module filled slots
0
Number of power module free slots
0
product web sub-family
High density
Redundant
No
UPS type
Double conversion online
Physical
Colour
Black
Height
43.2 cm
Width
26.3 cm
Depth
71.5 cm
Net weight
111.82 kg
Mounting location
Front
Mounting preference
No preference
Mounting mode
Rack-mounted with kit
Two post mountable
0
USB compatible
Yes
Input
Input voltage limits
100...275 V adjustable (half load)
173...476 V adjustable (half load)
Number of input connectors
1 hard wire 3-wire (1P + N + E)
1 hard wire 5-wire (3P + N + E)
Network frequency
40...70 Hz auto-sensing
Output
Bypass type
Internal bypass (automatic and manual)
Crest factor
3 : 1
Harmonic distortion
Less than 2 %
Maximum configurable power in VA
10000 VA
Maximum configurable power in W
10000 W
Wave type
Sine wave
Output frequency
50/60 Hz +/- 3 Hz sync to mains
Conformance
Product certifications
CE
EAC
IRAM
RCM
VDE
Marking
CE Mark
Standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Acoustic level
55 dBA
Heat dissipation
1947 Btu/h
Operating altitude
0...10000 ft
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-15…45 °C
Storage altitude
0.0000000000…15240.0000000000 m
IP degree of protection
IP20
Relative humidity
0…95 %
Storage Relative Humidity
0…95 % non-condensing
Communications & Management
Emergency power off
Yes
Free slots
1
Preinstalled device
Network management card 3 with environmental monitoring
Alarm
Audible and visible alarms : prioritized by severity
Surge Protection and Filtering
Surge energy rate
480 J
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
46.100 cm
Package 1 Width
100.000 cm
Package 1 Length
60.000 cm
Package 1 Weight
126.820 kg
Contractual warranty
Warranty
3 years repair or replace (excluding battery) and 2 years for battery
