Main
Run time for load
1500
W
Min-max: 150-1500 W
5min 9s
Max. Capacity Used
100 %
Main Input Voltage
230 V
Product or component type

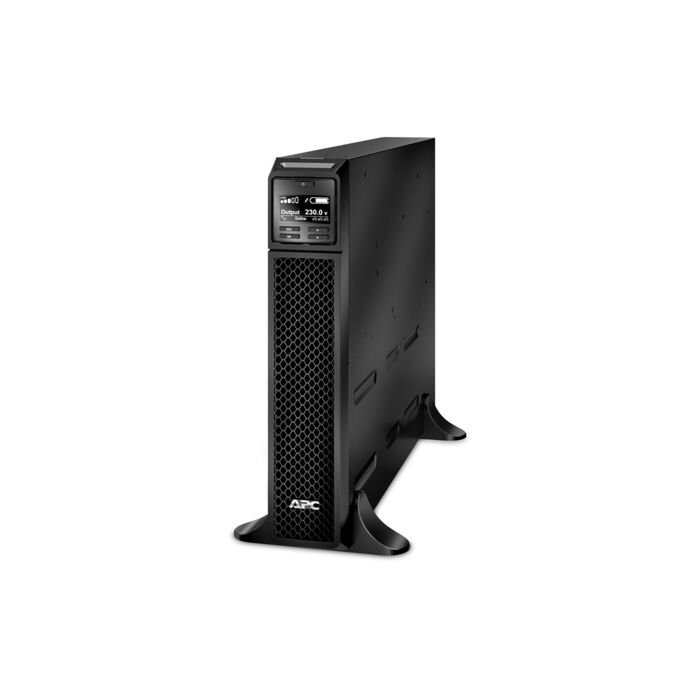

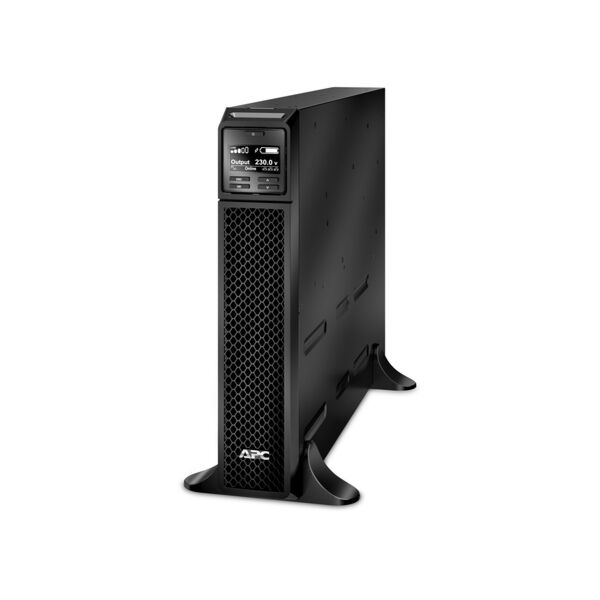

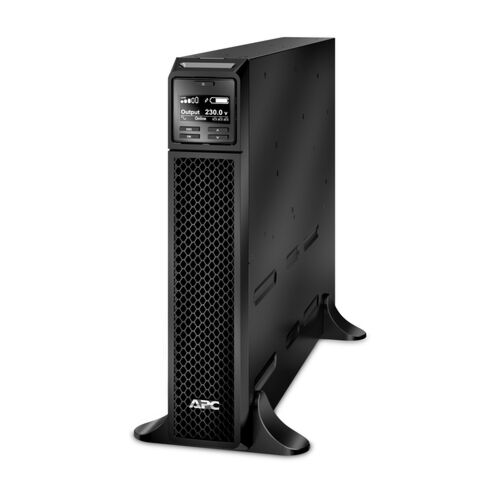

Uninterruptible power supply (UPS)
Other Input Voltage
220 V
240 V
Main Output Voltage
230 V
Other Output Voltage
220 V
240 V
Rated power in W
1500 W
rated power in VA
1500 VA
Input Connection Type
IEC 60320 C14
output connection type
6 IEC 60320 C13
Cable length
1.8 m
Number of cables
1
Provided equipment
CD with software
Communication cable
Documentation CD
Installation guide
Removable support feet
USB cable
Warranty card
Range of product
Smart-UPS On-Line
Batteries & Runtime
Run Time
View Runtime Graph
Battery type
Lead-acid battery
Battery voltage
48 V
Extended runtime
1
Number of battery filled slots
1
Number of battery free slots
0
Battery recharge time
3 h
Number of battery replacement quantity
1
Battery life
3…5 year(s)
Replacement battery
APCRBC155
Battery charger power
108 W rated
General
Number of power module filled slots
0
Number of power module free slots
0
product web sub-family
High density
Redundant
No
UPS type
Double conversion online
Physical
Colour
Black
Height
43.2 cm
Width
8.5 cm
Depth
50.5 cm
Net weight
20.5 kg
Mounting preference
No preference
Mounting mode
Rack-mounted with kit
Two post mountable
0
USB compatible
Yes
Mounting position
Vertical
Input
Input voltage limits
100...275 V
Network frequency
40...70 Hz auto-sensing
Output
Bypass type
Built-in bypass
Crest factor
3 : 1
Harmonic distortion
Less than 2 %
Maximum configurable power in VA
1500 VA
Maximum configurable power in W
1500 W
Wave type
Sine wave
Output frequency
50/60 Hz +/- 3 Hz sync to mains
Conformance
Product certifications
CE
EAC
UK PSTI
Standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Acoustic level
50 dBA
Heat dissipation
317 Btu/h
Operating altitude
0...10000 ft
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-20…50 °C
Storage altitude
0.0000000000…15240.0000000000 m
IP degree of protection
IP20
Relative humidity
0…95 % non-condensing
Storage Relative Humidity
0…95 % non-condensing
Communications & Management
Emergency power off
Yes
Free slots
1
Alarm
Audible and visible alarms : prioritized by severity
Surge Protection and Filtering
Surge energy rate
432 J
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
24.5 cm
Package 1 Width
69.0 cm
Package 1 Length
59.5 cm
Package 1 Weight
32.58 kg
Contractual warranty
Warranty
3 years repair or replace (excluding battery) and 2 years for battery
