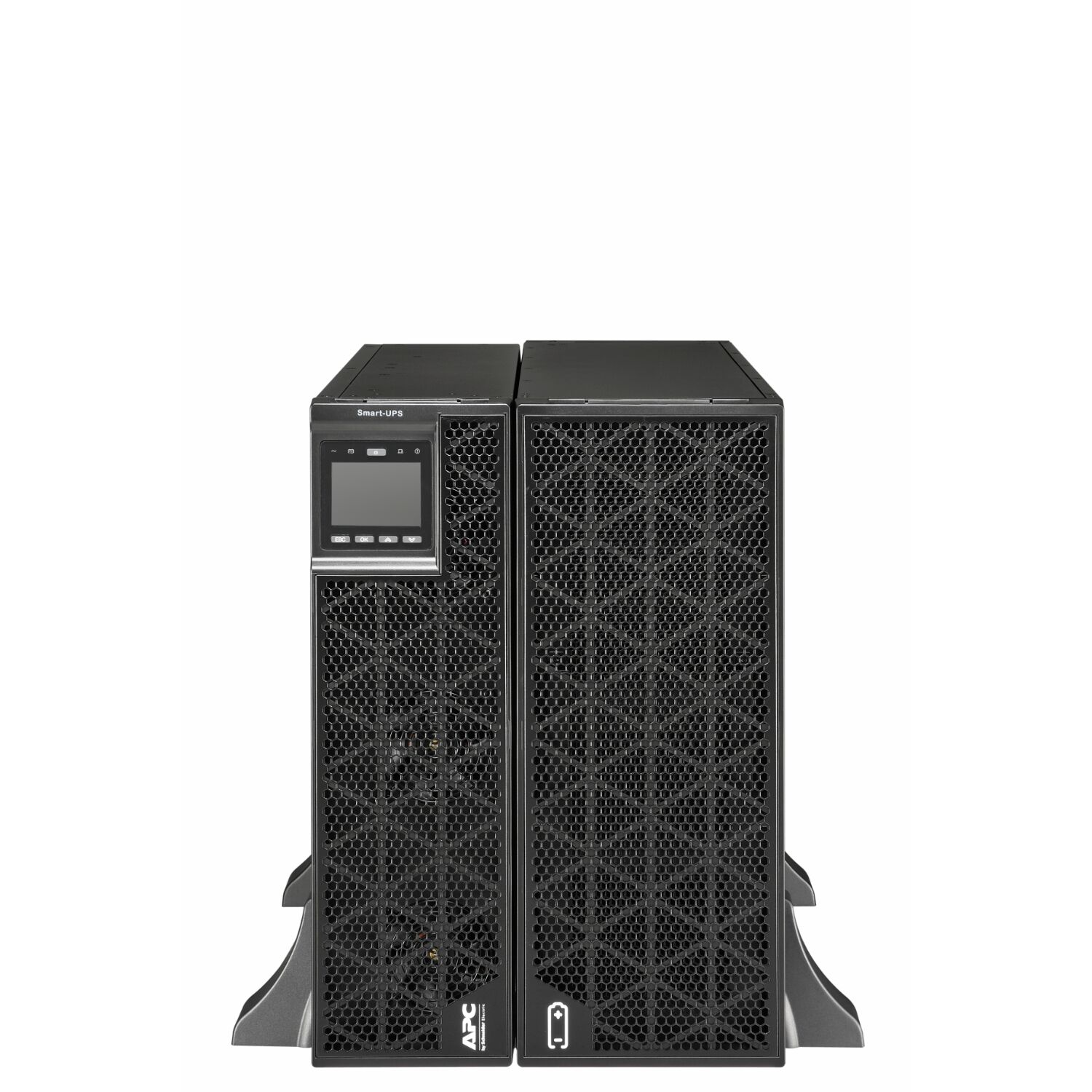

APC Smart-UPS On-Line, 20kVA/20kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit
This APC Smart-UPS SRTG20KXLI is designed for IT professionals or network administrators to maintain business uptime and continuity. This 20kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E) and 5-wire(3P+N+E) inputs, 3-wire(1P+N+E) and 5-wire(3P+N+E) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTGRK1 rail kit sold separately.
Main
Run time for load
20000
W
Min-max: 2000-20000 W
3min 1s
Max. Capacity Used
100 %
Main Input Voltage
400 V 3 phases
230 V 1 phase
Product or component type
Uninterruptible power supply (UPS)
Other Input Voltage
380...415 V
220...240 V
Main Output Voltage
400 V 3 phases
230 V 1 phase
Other Output Voltage
230 V
Rated power in W
20000 W
rated power in VA
20000 VA
output connection type
1 IEC 60320 C19
Output connector type
Hard wire 5 wire (3P + N + E) 1
Hard wire 3-wire (1P + N + E) 1
Number of rack unit
7U
Provided equipment
1 x USB cable
1 x RJ45 cable
2 x rack mounting brackets
2 x stabilization/wall mounting feet
2 x installation manual
1 x C13-C14 power cord
1 x external battery pack
1 x battery cable
Range of product
Smart-UPS On-Line
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Battery type
Lead-acid battery
Battery voltage
+/- 192 V
Extended runtime
1
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
4 h
Number of battery replacement quantity
2
Battery life
3…5 year(s)
Replacement battery
APCRBC172
Battery charger power
2160 W rated
General
Number of power module filled slots
0
Number of power module free slots
0
Redundant
No
UPS type
Double conversion online
Physical
Colour
Black (RAL 9005)
Height
30.6 cm
Width
44.0 cm
Depth
83.5 cm
Net weight
142.5 kg
Mounting location
Front
Mounting preference
Lower
Mounting mode
Rack-mounted
Two post mountable
0
USB compatible
Yes
Mounting position
Horizontal
Input
Maximum input current
87 A
Input harmonic distortion
Less than 5 % for full load
Load power factor
From 0.9 leading to 1 lagging
Switching current capacity
125 A
Input voltage limits
160...285 V full load
100...285 V half load
Number of input connectors
1 hard wire 5 wire (3P + N + E)
1 hard wire 3-wire (1P + N + E)
Network frequency
40...70 Hz auto-sensing
Output
Bypass type
Internal bypass (automatic and manual)
Crest factor
3 : 1
Harmonic distortion
Less than 2 %
Maximum configurable power in VA
20000 VA
Maximum configurable power in W
20000 W
Output overload operation
60 seconds at 125% and 30 seconds at 150%
Wave type
Sine wave
Efficiency
94.5 %
Output frequency
50/60 Hz +/- 4 Hz sync to mains
Additional information
Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Configurable for 220 : 230 or 240 nominal output voltage
Conformance
Product certifications
CE
UKCA
TISI
Standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Acoustic level
58 dBA
Heat dissipation
3821 Btu/h
Operating altitude
0...3000 m
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-15…45 °C
Storage altitude
0…15000 m
IP degree of protection
IP20
Relative humidity
0…95 % non-condensing
Storage Relative Humidity
0…95 % non-condensing
Communications & Management
Emergency power off
Yes
Free slots
0
Preinstalled device
Network management card 3 with environmental monitoring
Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rate
600 J
Noise suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
53.5 cm
Package 1 Width
79.0 cm
Package 1 Length
59.0 cm
Package 1 Weight
157.2 kg
Contractual warranty
Warranty
3 years repair or replace (excluding battery) and 2 years for battery
| Estimated Shipping Weight | 176.400000 |
|---|---|
| Estimated Shipping Length | 80 |
| Estimated Shipping Width | 60 |
| Estimated Shipping Height | 72 |
