Main
Run time for load
5000
W
Min-max: 500-5000 W
5min 17s
Max. Capacity Used
100 %
Main Input Voltage
230 V
Product or component type

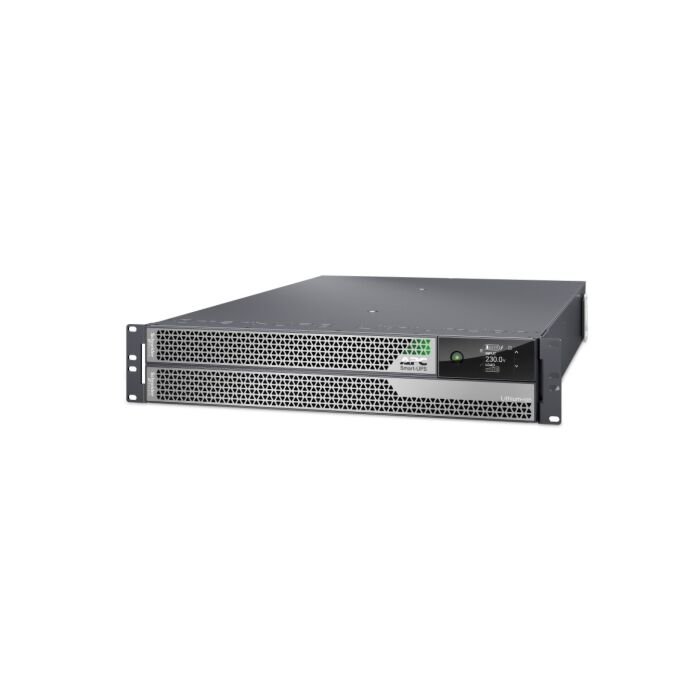

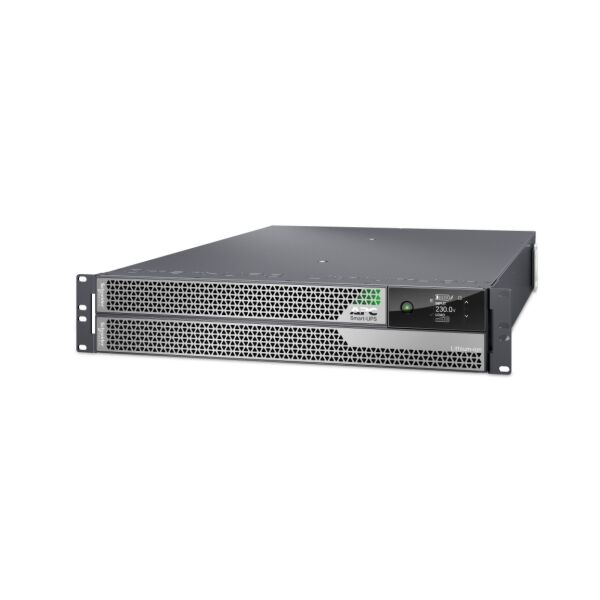

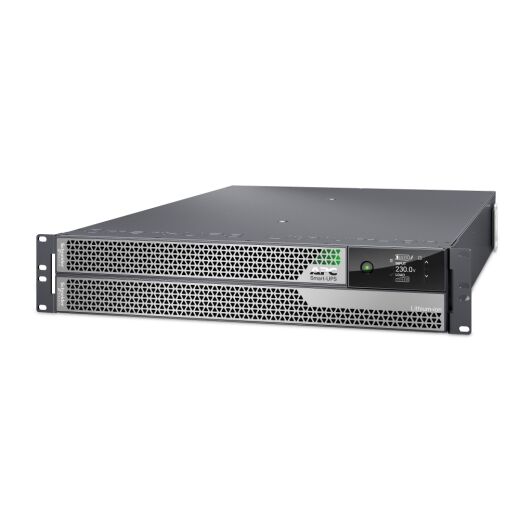

Uninterruptible power supply (UPS)
Other Input Voltage
220 V
Main Output Voltage
230 V
Other Output Voltage
220 V
Rated power in W
5000 W
rated power in VA
5000 VA
output connection type
6 IEC 60320 C13
4 IEC 60320 C19
Number of rack unit
2U
Cable length
3.05 m
Number of cables
1
Battery type
Li-Ion (Lithium-Ion)
Provided equipment
1 CD (software and documentation)
USB cable
Front cover
Earth terminal block
Temperature sensor
Stabilization feet
Rail extension
2P-3P connector
Range of product
Smart-UPS Ultra
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Number of battery filled slots
0
Number of battery free slots
0
Battery recharge time
1.5 h
Number of battery replacement quantity
1
Battery voltage
180 V
Battery charger power
600 W rated
Battery life
5…10 year(s)
Extended runtime
1
General
product web sub-family
High density
Number of power module free slots
0
Number of power module filled slots
0
Redundant
No
Physical
Colour
Silver grey
Height
86 mm
Width
432 mm
Depth
701 mm
Net weight
29.2 kg
Mounting location
Front
Mounting preference
No preference
Mounting mode
Rack-mounted with kit
Tower-mounted with kit
Two post mountable
0
USB compatible
Yes
Mounting position
Horizontal
Vertical
Input
Network frequency
40...70 Hz auto-sensing
Number of input connectors
1 hard wire 3-wire (1P + N + E)
Input voltage limits
180...275 V adjustable (half load)
Output
Maximum configurable power in W
5000 W
Harmonic distortion
Less than 2 %
Output frequency
50/60 Hz +/- 3 Hz sync to mains
Crest factor
3 : 1
UPS type
Double conversion online
Wave type
Sine wave
Bypass type
Internal bypass (automatic and manual)
Full load runtime
00:05:00 5000 W
Half load runtime
00:12:00 2500 W
Maximum configurable power in VA
5000 VA
Conformance
Product certifications
CE
UKCA
EN/IEC 62040-1
Marking
CE Mark
UKCA
Environmental
Ambient air temperature for operation
0…40 °C
Relative humidity
0…95 % non-condensing
Operating altitude
0...10000 ft
Ambient air temperature for storage
-15…45 °C
Storage Relative Humidity
0…95 % non-condensing
Storage altitude
0.0000000000…15240.0000000000 m
Acoustic level
55 dBA
Heat dissipation
931 Btu/h
IP degree of protection
IP20
Communications & Management
Free slots
0
Alarm
Audible and visible alarms : prioritized by severity
Emergency power off
Yes
Surge Protection and Filtering
Surge energy rate
1260 J
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
4
Package 1 Height
39.2 cm
Package 1 Width
58.5 cm
Package 1 Length
98.4 cm
Package 1 Weight
38.5 kg
SCC14
10731304435754
Contractual warranty
Warranty
5 years
