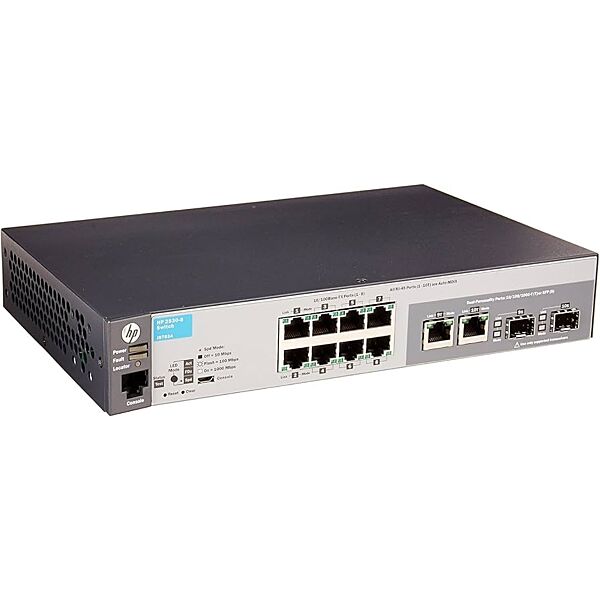

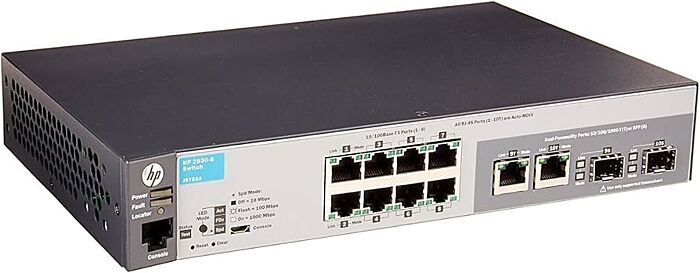

8 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Media Type: Auto-MDIX; Duplex: half or full
2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports
Additional ports and slots
1 dual-personality (RJ-45 or USB micro-B) serial console port
Physical characteristics
Dimensions
10.00(w) x 6.28(d) x 1.75(h) in (25.4 x 15.95 x 4.45 cm) (1U height)
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
Performance
IPv6 Ready Certified
100 Mb Latency
< 1.3µs (LIFO 64-byte packets)
1000 Mb Latency
< 1.3µs (LIFO 64-byte packets)
Throughput
up to 4.1 Mpps (64-byte packets)
Switching capacity
5.6 Gbps
MAC address table size
16000 entries
Environment
Operating temperature
32°F to 113°F (0°C to 45°C)
Operating relative humidity
15% to 95% @ 104°F (40°C), noncondensing
Non-operating/ Storage temperature
-40°F to 158°F (-40°C to 70°C)
Non-operating/Storage relative humidity
15% to 90% @ 149°F (65°C), noncondensing
Altitude
up to 10,000 ft (3 km)
Acoustic
Power: 0 dB, Pressure: 0 dB
Electrical characteristics
Frequency
50/60 Hz
Maximum heat dissipation
25 BTU/hr (26.38 kJ/hr)
Voltage
100 - 127 / 200 - 240 VAC, rated
Current
0.5 A
Maximum power rating
7.2 W
Idle power
4.5 W
Notes:
Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety
UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1
Emissions
FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A
IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3af apply to PoE+ models only. When using SFPs with this product, SFPs with revision "B" or later (product number ends with the letter "B" or later, e.g., J4858B, J4859C) are required.
