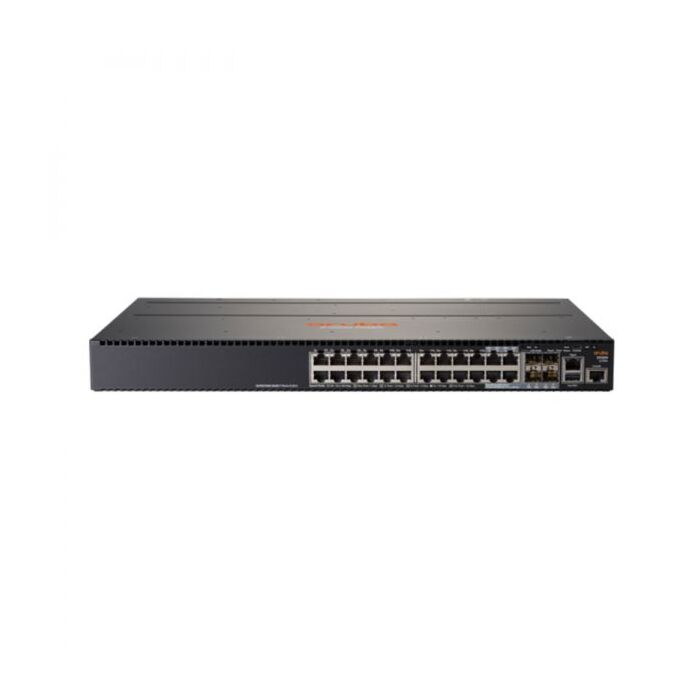

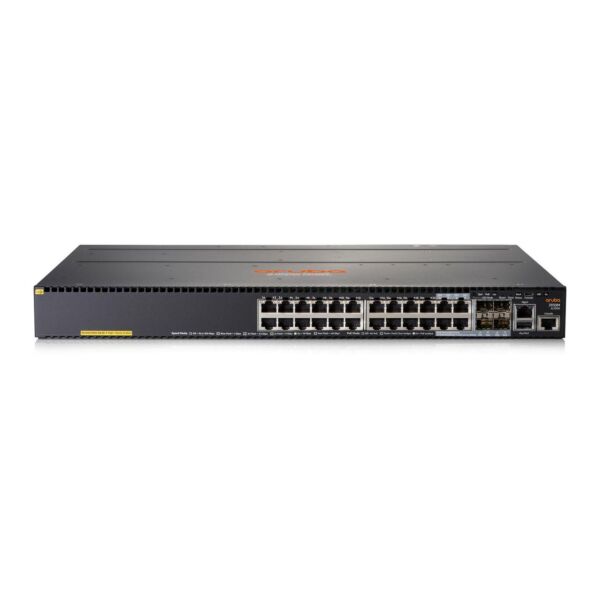

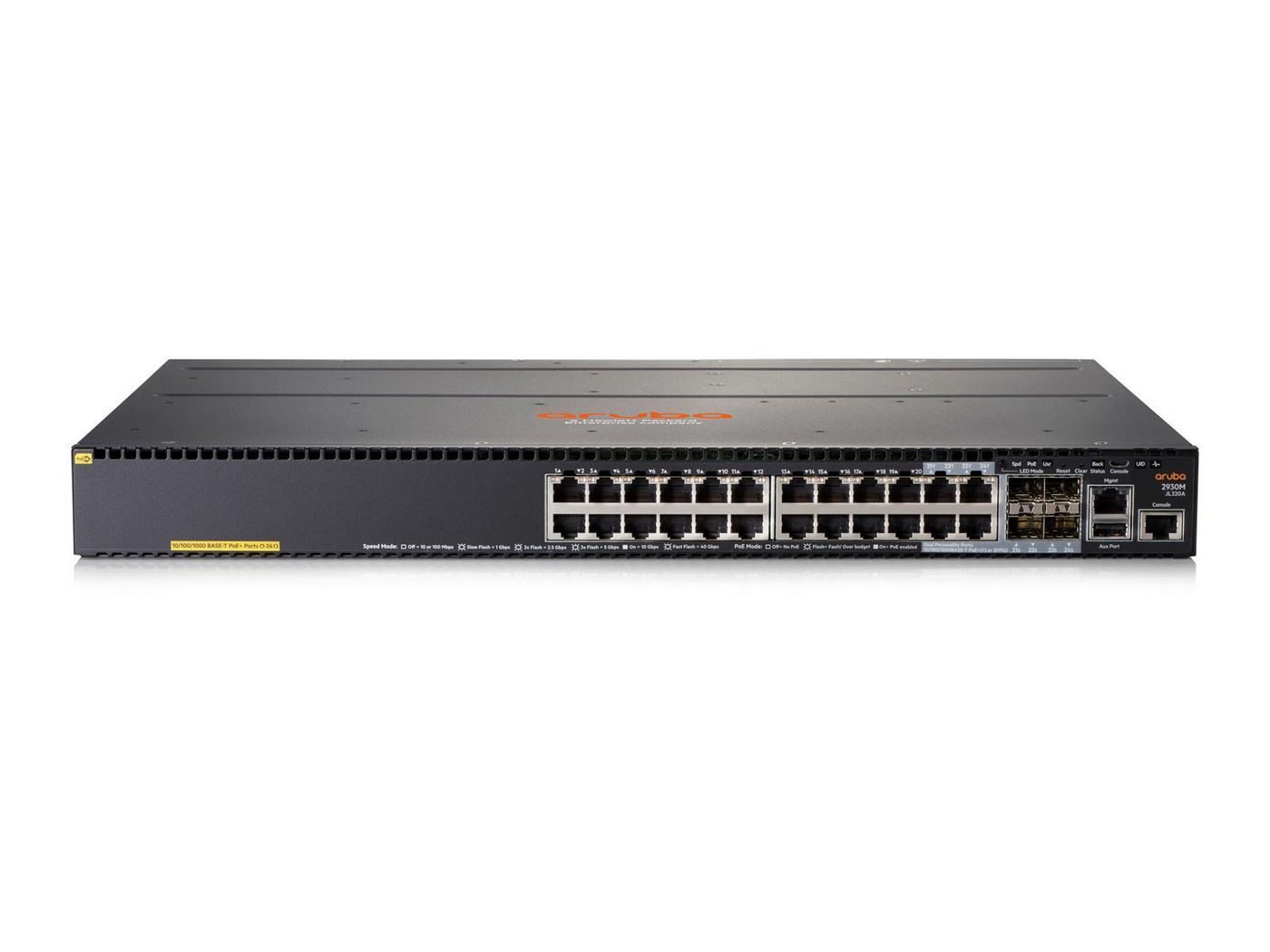

Aruba 2930M 24G PoE+ 1-slot Switch | JL320A

Aruba 2930M 24G PoE+ 1-slot Switch (JL320A)

I/O ports and slots

20 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T IEEE 802.3at PoE+); Duplex: 10BASE‑T/100BASE-TX:half or full;1000BASE-T:full only

4 Combo 10/100/1000BASE-T PoE+ or 100/1000Mbps SFP Ports

Additional ports and slots

1 Dual Personality (RJ-45 or USB Micro-B) serial console port

1 USB A port for uploading/ downloading files

1 100BASE-T Out of Band Management Port

1 Uplink Slot

1 Stacking Module Slot

2 Power Supply Slots (power supplies not included)

Physical characteristics

Dimensions

1.73" (Height) x 17.42" (Width) x 12.77" (Depth) (4.39cm x 44.25cm x 32.43cm)

Weight

9.92 lbs 4.50 kg

Memory and processor

Dual Core ARM Cortex A9 @ 1016 MHz

1 GB DDR3 SDRAM

Packet Buffer Size: 12.38 MB 4.5MB Ingress/7.875MB Egress

4GB eMMC

Performance

IPv6 Ready certified

10 Mbps Latency

< 98.5us (FIFO 64 byte packets)

100 Mbps Latency

<11.8us (FIFO 64-byte Packets)

1000 Mbps Latency

< 3.1us (FIFO 64-byte packets)

10Gbps Latency

<3.4us (FIFO 64-byte packets)

Throughput

Up to 95.2Mpps

Stacking Performance

100 Gbps

Switching Capacity

128 Gbps

Switching Capacity

(including Stacking)

228 Gbps

Routing table Size

2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP

Mac Address Table Size

32768 entries

Environment

Operating temperature

32˚ F to 131˚F (0° C to 55° C) up to 5000ft, 32˚ F to 122˚F (0° C to 50° C). Derate -1 degree C for every 1000 ft from 5000 ft to 10000 ft

Operating relative humidity

15%to 95% (Non-condens- ing) 10,000 ft

Non-operating/Storage temperature

-40°C to 70°C up to 15000 ft

Non-operating/Storage relative humidity

90% at 65°C (non-condens- ing); 15,000 ft

Acoustic

Sound Power LWaD=4.6 Bel, Sound Pressure LpAm, Bystander = 28.8 dB

Primary Airflow direction

Front to Back

Electrical  Characteristics

Frequency

50/60Hz

Maximum Heat Dissipation

279 BTU/hr
314 kJ/hr

Voltage

JL086A PSU: 100-127/200- 240 VAC

JL087A PSU: 110-127/200- 240 VAC

Electrical  Characteristics

Current

JL086A PSU (each): 5A/2.5A

JL087A PSU (each): 8.5A/5A

Maximum power rating

JL086A PSU (each): 450W

JL087A PSU (each): 810W

Idle Power

63W

PoE Power
(Max Possible)

840 Watts

Hibernate Power

23W

Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
