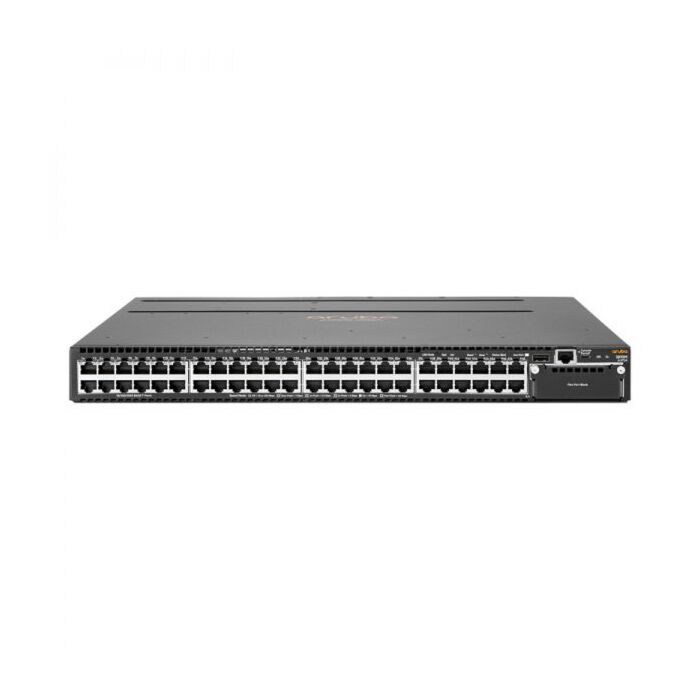

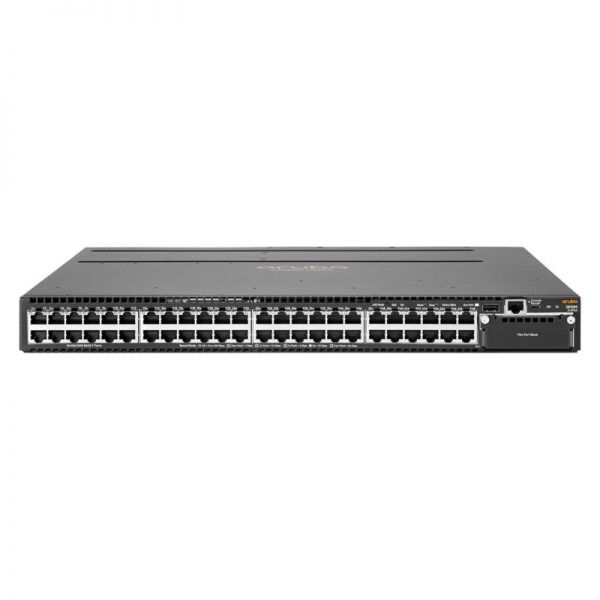

Aruba 3810M 48G 1-slot Switch Managed 48 x RJ-45 autosensing 10/100/10 | JL072A
|
Aruba 3810M 48G 1-slot Switch (JL072A) |
||
|
Included accessories |
1 Aruba 3810 Switch Fan Tray (JL088A) |
|
|
I/O ports and slots |
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 48 support MACSec 1 open module slot Supports a maximum of 4 SFP+ ports or 2 40GbE ports, with optional module |
|
|
Additional ports and slots |
1 stacking module slot 1 RJ-45 serial console port 1 RJ-45 out-of-band management port 1 dual-personality (RJ-45 or USB micro-B) |
|
|
Power supplies |
2 power supply slots 1 minimum power supply required (ordered separately) |
|
|
Fan tray |
includes: 1 x JL088A 1 fan tray slot Switch ships with 1 JL088A fan tray installed. Spares ordered separately. |
|
|
Physical characteristics |
Dimensions |
17.42(w) x 16.98(d) x 1.73(h) in (44.25 x 43.13 x 4.39 cm) (1U height) |
|
Weight |
13.20 lb (5.99 kg) |
|
|
Memory and processor |
P2020 Dual Core @ 1.2 GHz, 4 GB DDR3 SDRAM, 1 GB SD Card |
|
|
Dual ARM Coretex A9 @ 1 GHz, 2 GB DDR3 SDRAM; Packet buffer size: 13.5 MB Internal |
||
|
Mounting and enclosure |
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); Horizontal surface mounting only |
|
|
Performance |
IPv6 Ready Certified |
|
|
1000 Mb Latency |
< 2.8 µs (FIFO 64-byte packets) |
|
|
10 Gbps Latency |
< 1.8 µs (FIFO 64-byte packets) |
|
|
40 Gbps Latency |
< 1.5 µs (FIFO 64-byte packets) |
|
|
Throughput |
up to 190.5 Mpps (64-byte packets) |
|
|
Routing/Switching capacity |
320 Gbps |
|
|
Switch fabric speed |
338 Gbps |
|
|
Routing table size |
10000 entries (IPv4), 5000 entries (IPv6) |
|
|
MAC address table size |
64000 entries |
|
|
Environment |
Operating temperature |
32°F to 113°F (0°C to 45°C) |
|
Operating relative humidity |
15% to 95% @ 104°F (40°C), noncondensing |
|
|
Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
|
|
Non-operating/Storage relative humidity |
15% to 90% @ 149°F (65°C), noncondensing |
|
|
Altitude |
up to 10,000 ft (3 km) |
|
|
Acoustic |
Power: 38 dB, Pressure: 21.8 dB |
|
|
Primary Airflow Direction |
Front-to-side and front-to-rear |
|
|
Electrical Characteristics |
Frequency |
50/60Hz |
|
Voltage |
JL085A PSU: 100-127/200-240 VAC |
|
|
Current |
JL085A PSU (Each): 1A/0.5A |
|
|
Max/Idle Power Rating (Switch+ 1 PSU) |
95W/78W |
|
|
Second PSU Power Adder |
10W |
|
|
Max/Idle Uplink Power Adder |
JL078A: 4W/3W JL079A: 7W/3W JL081A: 4W/3W JL083A: 11W/4W |
|
|
Maximum Heat Dissipation *(Max Case) |
395.56 |
|
|
PoE Power (Max Possible) |
N/A |
|
|
Notes: |
Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. This is a modular product. *Switch + 2 power supplies + one JL083A Uplink. For most accurate heat dissipation, idle and max power for any combination of chassis and accessories, please consult configurator. |
|
|
Safety |
EN 60950/IEC 60950; UL 60950; UL 60950-1; CAN/CSA 22.2 No. 60950; EN 60825; CSA 22.2 60950-1; EN62479:2010; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN 62368-1, Ed. 2; IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC 60825:2007; EN60850-1:2007 / IEC 60825-1: 2007 Class1 Class 1 Laser Products / Laser Klasse 1; UL 62368-1 Ed.2 |
|
|
Emissions |
FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013 |
|
|
Immunity |
Generic |
EN55022: 2010 |
|
EN |
EN55024: 2010 |
|
|
ESD |
IEC 61000-4-2 |
|
|
Radiated |
IEC 61000-4-3; 3 V/m |
|
|
EFT/Burst |
IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line) |
|
|
Surge |
IEC 61000-4-5; 1 kV/2 kV AC |
|
|
Conducted |
IEC 61000-4-6; 3 V |
|
|
Power frequency magnetic field |
IEC 61000-4-8; 1 A/m, 50 or 60 Hz |
|
|
Voltage dips and interruptions |
IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods |
|
|
Harmonics |
EN61000-3-2:2006 +A1:2009 +A2:2009 Class A |
|
|
Flicker |
EN61000-3-3:2008 |
|
|
Management |
Aruba AirWave Network Management; IMC - Intelligent Management Center; Command-line interface; Web browser; Configuration menu; Out-of-band management (RJ-45 Ethernet); In-line and out-of-band; Out-of-band management (serial RS-232c or micro usb) |
|
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
|
