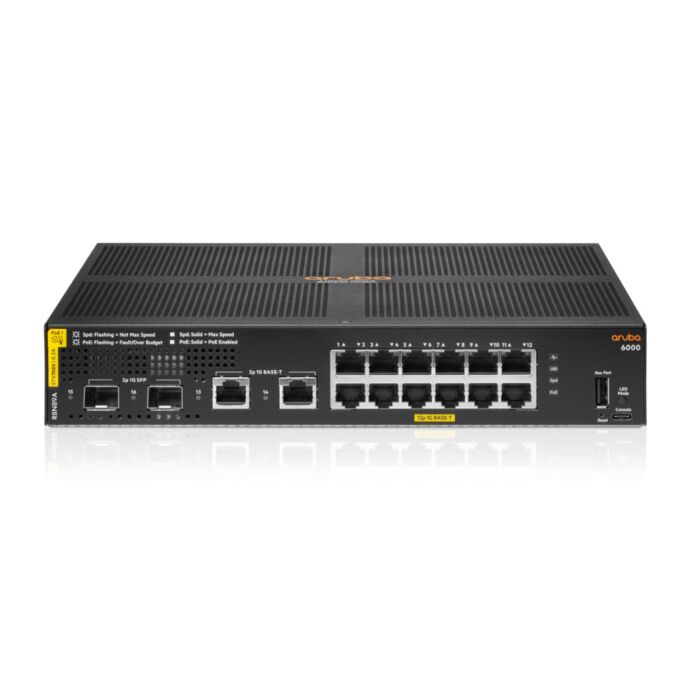

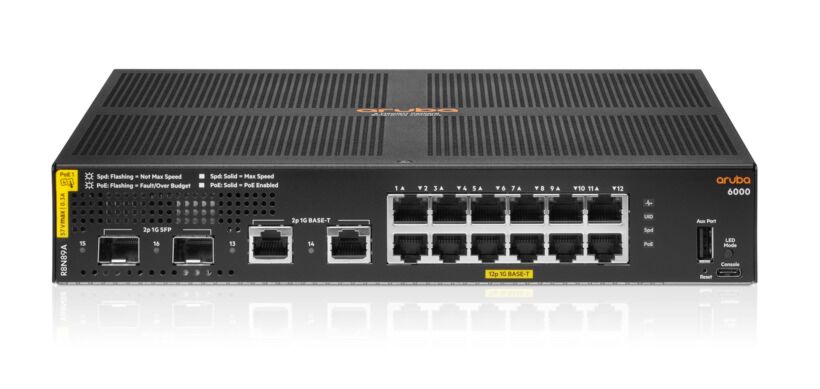

HP Aruba 6000 PoE+ Fanless Network Switch, 12G Ports, (139 W)

In stock
Only 3 left
SKU
R8N89A
R 10,361.99
Quick Overview
Aruba 6000 12G CL4 POE+ 2SFP 139W Switch Overview Introducing the Aruba 6000 12G CL4 POE+ 2SFP 139W Switch, SKU: R8N89A - a versatile PoE+ switch engineered to enhance your networking capabilities with exceptional performance and energy efficiency. Key Features Equipped with 12x 10/100/1000BASE-T ports, offering seamless connectivity for your network devices. Includes 2x 1G SFP ports and 2x 1GbE ports for flexible network deployment options. Delivers up to 139W of Class 4 PoE power while supporting IEEE 802.3af/802.3at PoE standards. Integrated with a fanless design for silent operation, ensuring a peaceful working environment. Compact and sturdy design - Dimensions: 4.39cm (H) x 25.4cm (W) x 25.5cm (D). Lightweight configuration with a weight of 2.78 kg (6.13 lbs). Fixed power supply, power-efficient with a max power consumption of 170W (w/ PoE). Technical Specifications Processor: Dual Core ARM Cortex A9 @ 1016 MHz. Memory: 4 GB DDR3 RAM and 16 GB eMMC storage. Packet Buffer: 12.38MB (4.5MB Ingress/7.875MB Egress). Switching Capacity: 32 Gbps with a throughput capacity of 23.8 Mpps. Latency: Average 1 Gbps latency at 2.3 μSec (LIFO-64-bytes packets). Svi's/Dual Stack: Supports 16 Switched Virtual Interfaces. Allows 1,024 IPv4 Host Table (ARP) and 512 IPv6 Host Table (ND) entries. Maximum MAC Table Capacity: 8,192. Supports up to 512 IGMP Groups and MLD Groups. Achieves 256 IPv4, 128 IPv6, and 256 MAC ACL Entries (ingress). Environment & Compliance Operational temperature range: 32°F to 113°F (0°C to 45°C). Operating altitude up to 10,000 feet (3 km) max. Adheres to rigorous safety and emissions standards such as UL 62368-1 and EN 60950-1. Compliant with various immunity and electrostatic discharge standards, including IEC 61000-4-2 and EN 55024. Optimize your network infrastructure with the Aruba 6000 Switch, designed for robust and reliable performance in diverse environments.

Aruba 6000 12G CL4 POE+ 2SFP 139W Switch

Overview

Introducing the Aruba 6000 12G CL4 POE+ 2SFP 139W Switch, SKU: R8N89A - a versatile PoE+ switch engineered to enhance your networking capabilities with exceptional performance and energy efficiency.

Key Features

  • Equipped with 12x 10/100/1000BASE-T ports, offering seamless connectivity for your network devices.
  • Includes 2x 1G SFP ports and 2x 1GbE ports for flexible network deployment options.
  • Delivers up to 139W of Class 4 PoE power while supporting IEEE 802.3af/802.3at PoE standards.
  • Integrated with a fanless design for silent operation, ensuring a peaceful working environment.
  • Compact and sturdy design - Dimensions: 4.39cm (H) x 25.4cm (W) x 25.5cm (D).
  • Lightweight configuration with a weight of 2.78 kg (6.13 lbs).
  • Fixed power supply, power-efficient with a max power consumption of 170W (w/ PoE).

Technical Specifications

  • Processor: Dual Core ARM Cortex A9 @ 1016 MHz.
  • Memory: 4 GB DDR3 RAM and 16 GB eMMC storage.
  • Packet Buffer: 12.38MB (4.5MB Ingress/7.875MB Egress).
  • Switching Capacity: 32 Gbps with a throughput capacity of 23.8 Mpps.
  • Latency: Average 1 Gbps latency at 2.3 μSec (LIFO-64-bytes packets).
  • Svi's/Dual Stack: Supports 16 Switched Virtual Interfaces.
  • Allows 1,024 IPv4 Host Table (ARP) and 512 IPv6 Host Table (ND) entries.
  • Maximum MAC Table Capacity: 8,192.
  • Supports up to 512 IGMP Groups and MLD Groups.
  • Achieves 256 IPv4, 128 IPv6, and 256 MAC ACL Entries (ingress).

Environment & Compliance

  • Operational temperature range: 32°F to 113°F (0°C to 45°C).
  • Operating altitude up to 10,000 feet (3 km) max.
  • Adheres to rigorous safety and emissions standards such as UL 62368-1 and EN 60950-1.
  • Compliant with various immunity and electrostatic discharge standards, including IEC 61000-4-2 and EN 55024.

Optimize your network infrastructure with the Aruba 6000 Switch, designed for robust and reliable performance in diverse environments.

More Information
SKUR8N89A
ManufacturerAruba
Description
12x ports 10/100/1000BASE-T Ports

 2x 1G SFP ports
 2x 1GbE ports

 Supports PoE Standards IEEE 802.3af, 802.3at

 1x USB-C Console Port
 1x USB Type-A Host port
Power suppliesFixed power supply

 Up to 139W of Class 4 PoE Power
FansFanless
Physical characteristics
Dimensions(H) 4.39 cm
 (W) 25.4 cm
 (D) 25.5 cm
 (1.73" x 10.0" x 10.04")
Configuration Weight2.78 kg (6.13 lbs)
Additional Specifications
CPUDual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash4 GB DDR3
 16 GB eMMC
Packet Buffer12.38MB (4.5MB Ingress/7.875MB Egress)
Performance
Model Switching Capacity32 Gbps
Model Throughput Capacity23.8 Mpps
Average Latency 1 Gbps: 2.3 μSec
(LIFO-64-bytes packets)
Switched Virtual Interfaces (dual stack)16
IPv4 Host Table (ARP)1,024
IPv6 Host Table (ND)512
IPv4 Unicast Routes512
IPv6 Unicast Routes512
MAC Table Capacity8,192
IGMP Groups512
MLD Groups512
IPv4/IPv6/MAC ACL Entries (ingress)256 / 128 / 256
Environment
Operating Temperature32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Operating Relative Humidity15% to 95% at 104°F (40°C) non-condensing
Non-Operating-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-Operating Storage Relative Humidity15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude10000 feet (3 km) Max
Max Non-Operating Altitude15000 feet (4.6 km) Max
AcousticSound Power, LWAd = 0 Bel
 Sound Pressure, LpAm (Bystander) = 0 dB

Primary Airflow-
Electrical Characteristics
Frequency50 / 60 Hz
AC Voltage100-127 VAC / 200-240 VAC
Current1.8 A / 0.9 A
Power Consumption (230 VAC)Idle: 16W
 Max Power (w/o PoE): 21.9W
 Max Power (w/ PoE): 170W
SafetyUL 60950-1; IEC 60950-1;
 EN 60950-1; CAN/
 CSA-C22.2 No. 60950-1;
 EN 60825-1
 UL 62368-1 Ed. 2; IEC
 62368-1 Ed. 2; EN 62368-
 1.440277778
EmissionsVCCI-CISPR 32, Class A; CNS
 13438; ICES-003 Issue 6
 Class A; FCC CFR 47
 Part 15, Class A;
 EN 55032: 2015 +AC:2016 /
 CISPR-32, Class A
LasersEN 60825-1:2007 / IEC 60825-
 1:2007 Class 1
 Class 1 Laser Products / Laser Klasse 1
 (Applicable for accessories - Optical Transceivers only)
Immunity
GenericCISPR 24 / CISPR 35
ENEN 55024:2010 /
 EN 55035:2017
ESDIEC 61000-4-2
RadiatedIEC 61000-4-3
EFT/BurstIEC 61000-4-4
SurgeIEC 61000-4-5
ConductedIEC 61000-4-6
Power frequency magnetic fieldIEC 61000-4-8
Voltage dips and interruptionsIEC 61000-4-11
HarmonicsEN 61000-3-2, IEC 61000-3-2
FlickerEN 61000-3-3, IEC 61000-3-3
Mounting and EnclosureMounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
