| 24x ports 10/100/1000BASE-T Ports |
| | |
| | 4x 1G SFP ports |
| | |
| | 1x USB-C Console Port |
| | 1x USB Type-A Host port |
| | |
| | |
| | |
| Power supplies | Fixed power supply |
| | |
| | |
| Fans | Fixed fans |
| Physical characteristics | |
| Dimensions | (H) 4.39 cm |
| | (W) 44.2 cm |
| | (D) 20.12 cm |
| | (1.73" x 17.4" x 7.92") |
| Configuration Weight | 2.62 kg (5.78 lbs) |
| Additional Specifications | |
| CPU | Dual Core ARM Cortex A9 @ 1016 Mhz |
| Memory and Flash | 4 GB DDR3 |
| | 16 GB eMMC |
| Packet Buffer | 12.38MB (4.5MB Ingress/7.875MB Egress) |
| Performance | |
| Model Switching Capacity | 56 Gbps |
| Model Throughput Capacity | 41.6 Mpps |
| Average Latency | 1 Gbps: 1.5 μSec |
| (LIFO-64-bytes packets) | |
| Switched Virtual Interfaces (dual stack) | 16 |
| IPv4 Host Table (ARP) | 1,024 |
| IPv6 Host Table (ND) | 512 |
| IPv4 Unicast Routes | 512 |
| IPv6 Unicast Routes | 512 |
| MAC Table Capacity | 8,192 |
| IGMP Groups | 512 |
| MLD Groups | 512 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 256 / 128 / 256 |
| Environment | |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
| Operating Relative Humidity | 15% to 95% at 104°F (40°C) non-condensing |
| Non-Operating | -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
| Non-Operating Storage Relative Humidity | 15% to 90% @ 149°F (65°C) non-condensing |
| Max Operating Altitude | 10000 feet (3 km) Max |
| Max Non-Operating Altitude | 15000 feet (4.6 km) Max |
| Acoustic | Sound Power, LWAd = 3.9 Bel |
| | Sound Pressure, LpAm (Bystander) = |
| | 20.9 dB |
| Primary Airflow | Side-to-side |

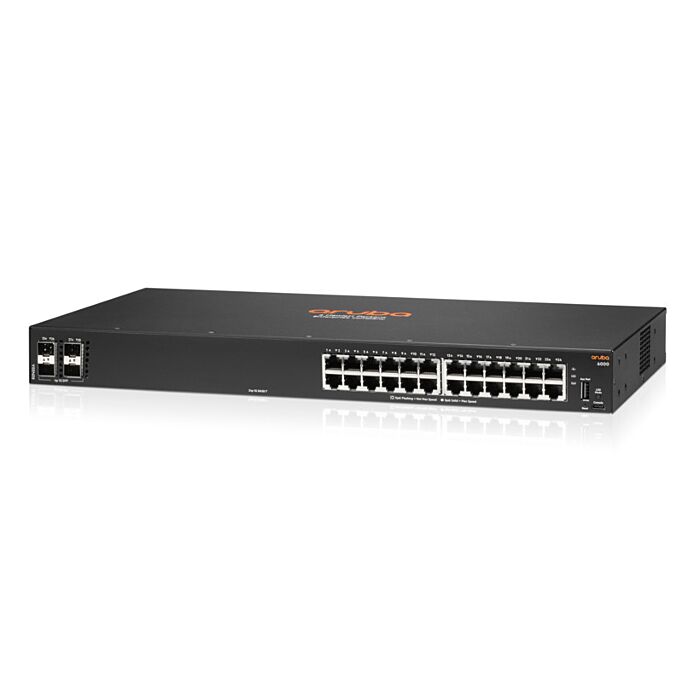

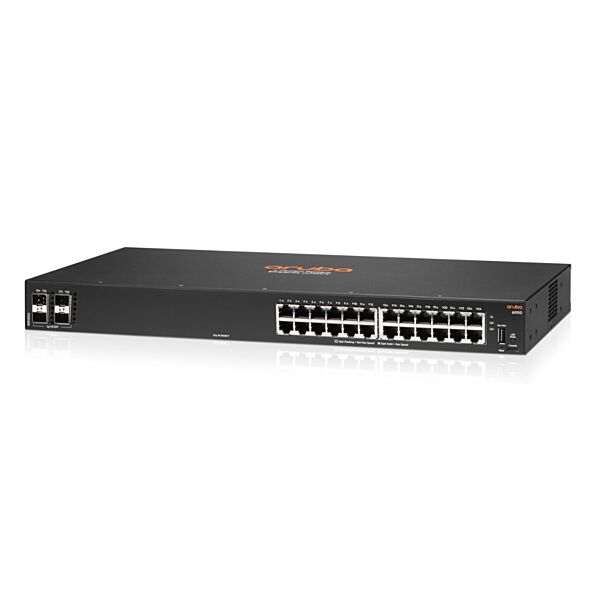

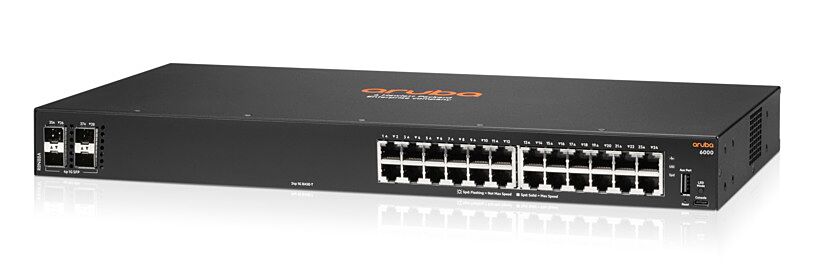

| | Aruba 6000 24G 4SFP Switch (R8N88A) |
| Electrical Characteristics | |
| Frequency | 50 / 60 Hz |
| AC Voltage | 100-127 VAC / 200-240 VAC |
| Current | 0.6 A / 0.4 A |
| Power Consumption (230 VAC) | Idle: 15.4W |
| | Max Power (w/o PoE): 33W |
| | |
| Safety | UL 60950-1; IEC 60950-1; |
| | EN 60950-1; CAN/ |
| | CSA-C22.2 No. 60950-1; |
| | EN 60825-1 |
| | UL 62368-1 Ed. 2; IEC |
| | 62368-1 Ed. 2; EN 62368- |
| | 1.440277778 |
| Emissions | VCCI-CISPR 32, Class A; CNS |
| | 13438; ICES-003 Issue 6 |
| | Class A; FCC CFR 47 |
| | Part 15, Class A; |
| | EN 55032: 2015 +AC:2016 / |
| | CISPR-32, Class A |
| Lasers | EN 60825-1:2007 / IEC 60825- |
| | 1:2007 Class 1 |
| | Class 1 Laser Products / Laser Klasse 1 |
| | (Applicable for accessories - Optical Transceivers only) |
| Immunity | |
| Generic | CISPR 24 / CISPR 35 |
| EN | EN 55024:2010 / |
| | EN 55035:2017 |
| ESD | IEC 61000-4-2 |
| Radiated | IEC 61000-4-3 |
| EFT/Burst | IEC 61000-4-4 |
| Surge | IEC 61000-4-5 |
| Conducted | IEC 61000-4-6 |
| Power frequency magnetic field | IEC 61000-4-8 |
| Voltage dips and interruptions | IEC 61000-4-11 |
| Harmonics | EN 61000-3-2, IEC 61000-3-2 |
| Flicker | EN 61000-3-3, IEC 61000-3-3 |
| Mounting and Enclosure | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting |
