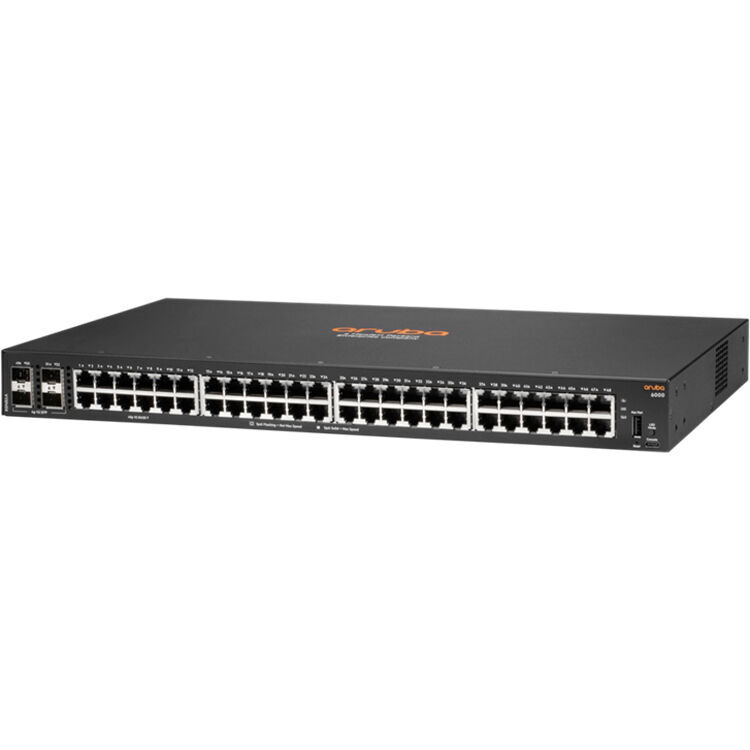

Aruba 6000 48G 4SFP Switch
SKU: R8N86A
Description The Aruba 6000 48G 4SFP Switch offers robust, high-performance networking for your growing business. Optimized for seamless connectivity and efficient data management, this versatile switch is designed to meet your office's evolving demands while ensuring easy management and exceptional reliability.
Technical Specifications
48x Gigabit Ethernet Ports: 10/100/1000BASE-T
4x SFP Ports: 1G/10G for flexible uplinks
1x USB-C Console Port & 1x USB Type-A Host
Fixed Power Supply & Fans for consistent performance
Dimensions: 4.39 cm x 44.2 cm x 24.74 cm (1.73" x 17.4" x 9.74")
Power Consumption (230 VAC): Idle: 20.6W, Max Power (w/o PoE): 44.2W
Safety and Compliance
Conforms to UL, IEC, EN, CSA safety standards
Emissions: VCCI-CISPR 32, CNS, ICES-003, FCC CFR 47 Part 15
Laser Safety: Class 1
Immunity: CISPR 24 / 35, EN 55024 / 55035, IEC 61000 series
Mounting Options Mount in a standard 19-inch rack or cabinet with available rack-mounting kit; can also be wall-mounted or placed on a horizontal surface.
Manufacturer: Aruba
More Information
More Information
SKU
R8N86A
Manufacturer
Aruba
Technical Details
Description
48x ports 10/100/1000BASE-T Ports
4x 1G/10G SFP ports
1x USB-C Console Port
1x USB Type-A Host port
Power supplies
Fixed power supply
Fans
Fixed fans
Physical characteristics
Dimensions
(H) 4.39 cm
(W) 44.2 cm
(D) 24.74 cm
(1.73" x 17.4" x 9.74")
Configuration Weight
3.42 kg (7.54 lbs)
Additional Specifications
CPU
Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash
4 GB DDR3
16 GB eMMC
Packet Buffer
12.38MB (4.5MB Ingress/7.875MB
Egress)
Performance
Model Switching Capacity
104 Gbps
Model Throughput Capacity
77.3 Mpps
Average Latency (LIFO-64- bytes packets)
1 Gbps: 1.9 μSec
Switched Virtual
16
Interfaces (dual stack)
IPv4 Host Table (ARP)
1,024
IPv6 Host Table (ND)
512
IPv4 Unicast Routes
512
IPv6 Unicast Routes
512
MAC Table Capacity
8,192
IGMP Groups
512
MLD Groups
512
IPv4/IPv6/MAC ACL
256 / 128 / 256
Entries (ingress)
Environment
Operating Temperature
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft
(1.5 km) to 10000 ft (3.0 km)
Operating Relative Humidity
15% to 95% at 104°F (40°C) non-condensing
Non-Operating
-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
