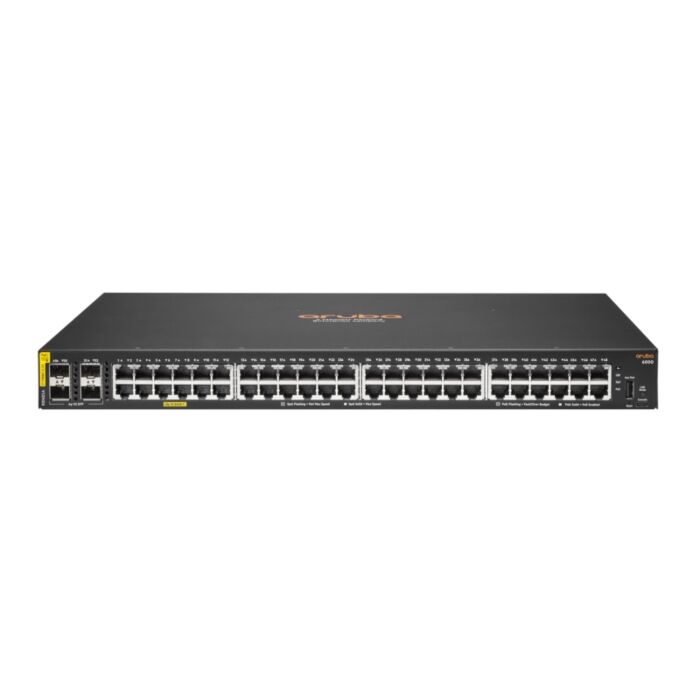

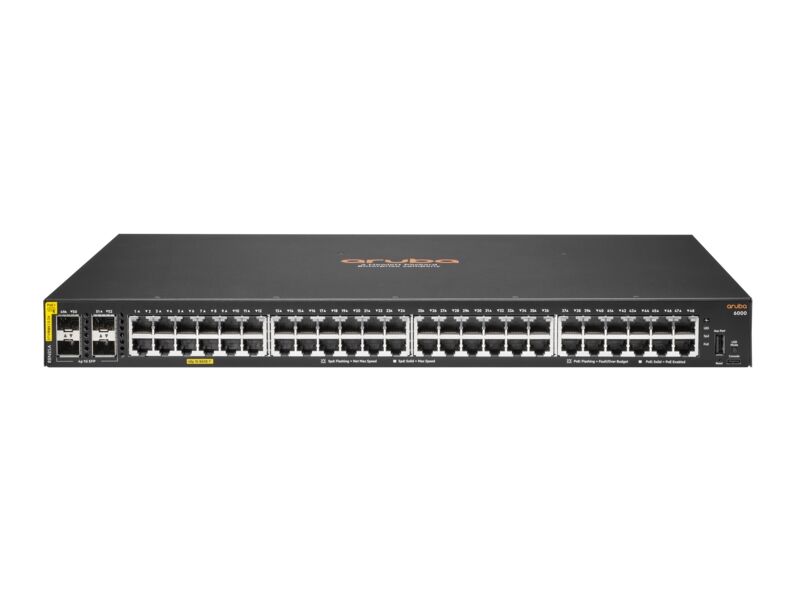

HP Aruba 6000 Switch: 48G Ports, PoE+, 4 SFP, Dual-Core
Quick Overview
Aruba 6000 48G CL4 POE+ 4SFP Switch Revitalize Network Performance with Aruba Innovation Plunge into the realm of seamless connectivity and robust performance with the Aruba 6000 48G CL4 POE+ 4SFP Switch. Engineered to deliver exceptional efficiency for advanced networking environments, this high-performance switch sets the benchmark in power distribution and data handling capabilities. Ideal for businesses demanding reliability and scalability, the Aruba 6000 ensures your enterprise network infrastructure is future-ready and agile. Superior Configuration 48x Ethernet Ports: 10/100/1000BASE-T 4x 1G/10G SFP Ports Enabling Versatile Connectivity Robust PoE Support: IEEE 802.3af / IEEE 802.3at USB Interface: 1x USB-C Console, 1x USB Type-A Host Power Excellence Fixed Power Supply with 370W Class 4 PoE for Optimal Control Fixed Fans for Efficient Cooling Precise Dimensions & Weight Optimized Size: 4.39 cm (H) x 44.2 cm (W) x 30.48 cm (D) Streamlined Weight: 5.02 kg High-Performance Architecture CPU: Dual-Core ARM Cortex A9 @ 1016 Mhz Memory: 4 GB DDR3 and 16 GB eMMC for High-Speed Operations Packet Buffer: 12.38MB Total Efficiency (Ingress/Egress) Switching Capacity: 104 Gbps/Throughput: 77.3 Mpps Advanced Networking & Security MAC Table Capacity: 8,192 Entries IPv4/IPv6 Support with 512 Unicast Routes Each IGMP/MLD Groups: 512 Each Multi-Layer Security: 256/128/256 Ingress ACL Entries Operational Efficiency Operating Temp: 0°C to 45°C up to 1.5 km Altitude Humidity: 15% to 95% At 40°C Non-condensing Electrical Settings: 100-127 VAC/200-240 VAC, 50/60 Hz Sound Pressure: LpAm 29.8 dB for Quiet Operations Compliance & Safety Safety Standards: UL, IEC, EN, CSA-C22.2 Certifications Emission Standards: VCCI, CNS, ICES, FCC, EN, CISPR Laser Compliance: EN 60825-1/IEC 60825-1 Class 1 Mounting Compatibility: EIA-standard 19-inch Rack or Cabinet Enhance your network’s scale and efficiency, making the Aruba 6000 48G CL4 POE+ 4SFP Switch an indispensable component of your technological quest. Brandish a future-proof network with unparalleled accessibility and robust performance.
Details
Aruba 6000 48G CL4 POE+ 4SFP Switch
Revitalize Network Performance with Aruba Innovation
Plunge into the realm of seamless connectivity and robust performance with the Aruba 6000 48G CL4 POE+ 4SFP Switch. Engineered to deliver exceptional efficiency for advanced networking environments, this high-performance switch sets the benchmark in power distribution and data handling capabilities. Ideal for businesses demanding reliability and scalability, the Aruba 6000 ensures your enterprise network infrastructure is future-ready and agile.
Superior Configuration
- 48x Ethernet Ports: 10/100/1000BASE-T
- 4x 1G/10G SFP Ports Enabling Versatile Connectivity
- Robust PoE Support: IEEE 802.3af / IEEE 802.3at
- USB Interface: 1x USB-C Console, 1x USB Type-A Host
Power Excellence
- Fixed Power Supply with 370W Class 4 PoE for Optimal Control
- Fixed Fans for Efficient Cooling
Precise Dimensions & Weight
- Optimized Size: 4.39 cm (H) x 44.2 cm (W) x 30.48 cm (D)
- Streamlined Weight: 5.02 kg
High-Performance Architecture
- CPU: Dual-Core ARM Cortex A9 @ 1016 Mhz
- Memory: 4 GB DDR3 and 16 GB eMMC for High-Speed Operations
- Packet Buffer: 12.38MB Total Efficiency (Ingress/Egress)
- Switching Capacity: 104 Gbps/Throughput: 77.3 Mpps
Advanced Networking & Security
- MAC Table Capacity: 8,192 Entries
- IPv4/IPv6 Support with 512 Unicast Routes Each
- IGMP/MLD Groups: 512 Each
- Multi-Layer Security: 256/128/256 Ingress ACL Entries
Operational Efficiency
- Operating Temp: 0°C to 45°C up to 1.5 km Altitude
- Humidity: 15% to 95% At 40°C Non-condensing
- Electrical Settings: 100-127 VAC/200-240 VAC, 50/60 Hz
- Sound Pressure: LpAm 29.8 dB for Quiet Operations
Compliance & Safety
- Safety Standards: UL, IEC, EN, CSA-C22.2 Certifications
- Emission Standards: VCCI, CNS, ICES, FCC, EN, CISPR
- Laser Compliance: EN 60825-1/IEC 60825-1 Class 1
- Mounting Compatibility: EIA-standard 19-inch Rack or Cabinet
Enhance your network’s scale and efficiency, making the Aruba 6000 48G CL4 POE+ 4SFP Switch an indispensable component of your technological quest. Brandish a future-proof network with unparalleled accessibility and robust performance.
More Information
| SKU | R8N85A |
|---|---|
| Manufacturer | Aruba |
Technical Details
| 48x ports 10/100/1000BASE-T Ports | |
| 4x 1G/10G SFP ports | ||
| Supports PoE Standards IEEE | ||
| 802.3af, 802.3at | ||
| 1x USB-C Console Port 1x USB Type-A Host port | ||
| Power supplies | Fixed power supply | |
| Up to 370W of Class 4 PoE Power | ||
| Fans | Fixed fans | |
| Physical characteristics | ||
| Dimensions | (H) 4.39 cm | |
| (W) 44.2 cm | ||
| (D) 30.48 cm | ||
| (1.73" x 17.4" x 12.0") | ||
| Configuration Weight | 5.02 kg (11.07 lbs) | |
| Additional Specifications | ||
| CPU | Dual Core ARM Cortex A9 @ 1016 Mhz | |
| Memory and Flash | 4 GB DDR3 | |
| 16 GB eMMC | ||
| Packet Buffer | 12.38MB (4.5MB Ingress/7.875MB | |
| Egress) | ||
| Performance | ||
| Model Switching Capacity | 104 Gbps | |
| Model Throughput Capacity | 77.3 Mpps | |
| Average Latency (LIFO-64- bytes packets) | 1 Gbps: 1.9 μSec | |
| Switched Virtual | 16 | |
| Interfaces (dual stack) | ||
| IPv4 Host Table (ARP) | 1,024 | |
| IPv6 Host Table (ND) | 512 | |
| IPv4 Unicast Routes | 512 | |
| IPv6 Unicast Routes | 512 | |
| MAC Table Capacity | 8,192 | |
| IGMP Groups | 512 | |
| MLD Groups | 512 | |
| IPv4/IPv6/MAC ACL | 256 / 128 / 256 | |
| Entries (ingress) | ||
| Environment | ||
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft | |
| (1.5 km) to 10000 ft (3.0 km) | ||
| Operating Relative Humidity | 15% to 95% at 104°F (40°C) non-condensing | |
| Non-Operating | -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) | |
| Non-Operating Storage Relative Humidity | 15% to 90% @ 149°F (65°C) non-condensing | |
| Max Operating Altitude | 10000 feet (3 km) Max | |
| Max Non-Operating | 15000 feet (4.6 km) Max | |
| Altitude | ||
| Acoustic | Sound Power, LWAd = 4.3 Bel Sound Pressure, LpAm (Bystander) = 29.8 dB | |
| Primary Airflow | Side-to-side | |
| Electrical Characteristics | ||
| Frequency | 50 / 60 Hz | |
| AC Voltage | 100-127 VAC / 200-240 VAC | |
| Current | 4.9 A / 2.4 A | |
| Power Consumption (230 VAC) | Idle: 30.6W | |
| Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W | ||
| Safety | UL 60950-1; IEC 60950-1; | |
| EN 60950-1; CAN/ | ||
| CSA-C22.2 No. 60950-1; | ||
| EN 60825-1 | ||
| UL 62368-1 Ed. 2; IEC | ||
| 62368-1 Ed. 2; EN 62368-1:2014 | ||
| Emissions | VCCI-CISPR 32, Class A; CNS | |
| 13438; ICES-003 Issue 6 | ||
| Class A; FCC CFR 47 | ||
| Part 15, Class A; | ||
| EN 55032: 2015 +AC:2016 / | ||
| CISPR-32, Class A | ||
| Lasers | EN 60825-1:2007 / IEC 60825- | |
| 1:2007 Class 1 | ||
| Class 1 Laser Products / Laser Klasse 1 | ||
| (Applicable for accessories - Optical Transceivers only) | ||
| Immunity | ||
| Generic | CISPR 24 / CISPR 35 | |
| EN | EN 55024:2010 / | |
| EN 55035:2017 | ||
| ESD | IEC 61000-4-2 | |
| Radiated | IEC 61000-4-3 | |
| EFT/Burst | IEC 61000-4-4 | |
| Surge | IEC 61000-4-5 | |
| Conducted | IEC 61000-4-6 | |
| Power frequency | IEC 61000-4-8 | |
| magnetic field | ||
| Voltage dips and | IEC 61000-4-11 | |
| interruptions | ||
| Harmonics | EN 61000-3-2, IEC 61000-3-2 | |
| Flicker | EN 61000-3-3, IEC 61000-3-3 | |
| Mounting and Enclosure | Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting |
