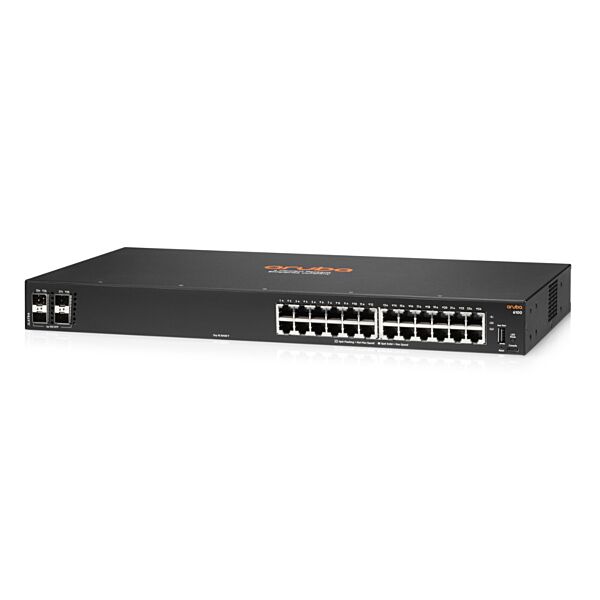

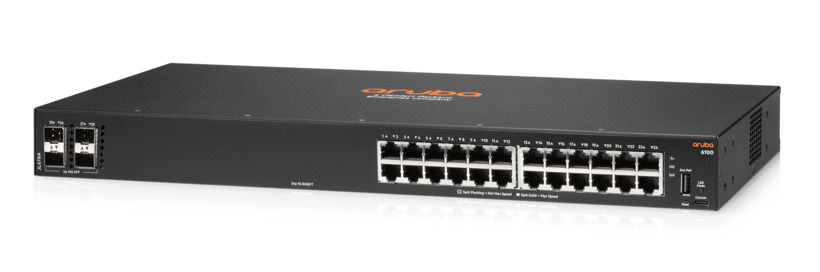

Aruba 6100 24G 4SFP+ High-Performance Network Switch | JL678A
R 31,485.00
In stock
SKU
JL678A
- Handles demanding tasks with 24 integrated Gigabit Ethernet ports
- Boosts connectivity with 4 additional SFP+ ports for fiber connections
- Simplifies network management with user-friendly interface
- Provides robust security features to safeguard your data
- Ensures trouble-free integration into existing systems
- Perfect solution for growing networks needing enhanced performance
Aruba 6100 24G 4SFP+ Switch
SKU: JL678ADescription
Discover powerful networking capabilities with the Aruba 6100 24G 4SFP+ Switch, crafted for efficiency and reliability. Experience unmatched performance for enhanced connectivity in any environment.
Technical Specifications
- 24x 10/100/1000BASE-T Ports
- 4x 1G/10G SFP+ Ports
- 1x USB-C Console Port
- 1x USB Type-A Host Port
Power & Cooling
- Fixed Power Supply (65W)
- Fixed Fans
Physical Dimensions
- Height: 4.39 cm
- Width: 44.2 cm
- Depth: 20.12 cm
- Weight: 2.62 kg (5.78 lbs)
Memory & Processing
- CPU: Dual Core ARM Cortex A9 @ 1016 MHz
- Memory: 4 GB DDR3
- Flash Storage: 16 GB eMMC
- Packet Buffer: 12.38MB (4.5MB Ingress/7.875MB Egress)
Performance
- Switching Capacity: 128 Gbps
- Throughput Capacity: 95.2 Mpps
- Average Latency: 1.5 μSec for 1 Gbps, 1.8 μSec for 10 Gbps
- Switched Virtual Interfaces: 16
- MAC Table Capacity: 8,192
- IP Host Tables and Routes:
- IPv4 Host Table: 1,024
- IPv6 Host Table: 512
- IPv4 Unicast Routes: 512
- IPv6 Unicast Routes: 512
Environmental Specs
- Operating Temperature: 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km)
- Operating Humidity: 15% to 95% at 104°F (40°C) non-condensing
- Max Operating Altitude: 10000 ft (3 km)
- Acoustic Levels: Sound Power LWAd 3.9 Bel, Sound Pressure LpAm 20.9 dB
Electrical Characteristics
- Frequency: 50 / 60 Hz
- Voltage: 100-127 VAC / 200-240 VAC
- Current: 0.6 A / 0.4 A
- Power Consumption: 15.4W (Idle), 33W (Max Power w/o PoE)
Mounting
- Mounts in an EIA-standard 19-inch rack, equipment cabinet, or wall mount
- Rack-mount kit available
|
24x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports | |
| 1x USB-C Console Port 1x USB Type-A Host port | ||
| Power supplies | Fixed power supply (65W) | |
| Fans | Fixed fans | |
| Physical characteristics | ||
| Dimensions | (H) 4.39 cm | |
| (W) 44.2 cm | ||
| (D) 20.12 cm | ||
| (1.73" x 17.4" x 7.92") | ||
| Configuration Weight | 2.62 kg (5.78 lbs) | |
| Additional Specifications | ||
| CPU | Dual Core ARM Cortex A9 @ 1016 Mhz | |
| Memory and Flash | 4 GB DDR3 | |
| 16 GB eMMC | ||
| Packet Buffer | 12.38MB (4.5MB Ingress/7.875MB Egress) | |
| Performance | ||
| Model Switching Capacity | 128 Gbps | |
| Model Throughput Capacity | 95.2 Mpps | |
| Average Latency (LIFO-64-bytes packets) | 1 Gbps: 1.5 μSec , 10 Gbps: 1.8 μSec | |
| Switched Virtual Interfaces (dual stack) | 16 | |
| IPv4 Host Table (ARP) | 1,024 | |
| IPv6 Host Table (ND) | 512 | |
| IPv4 Unicast Routes | 512 | |
| IPv6 Unicast Routes | 512 | |
| MAC Table Capacity | 8,192 | |
| IGMP Groups | 512 | |
| MLD Groups | 512 | |
| IPv4/IPv6/MAC ACL Entries (ingress) | 256 / 128 / 256 | |
| Environment | ||
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) | |
| Operating Relative Humidity | 15% to 95% at 104°F (40°C) non-condensing | |
| Non-Operating | -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) | |
| Non-Operating Storage Relative Humidity | 15% to 90% @ 149°F (65°C) non-condensing | |
| Max Operating Altitude | 10000 feet (3 km) Max | |
| Max Non-Operating Altitude | 15000 feet (4.6 km) Max | |
| Acoustic | Sound Power, LWAd = 3.9 Bel | |
| Sound Pressure, LpAm (Bystander) = | ||
| 20.9 dB | ||
| Primary Airflow | Side-to-side | |
| Electrical Characteristics | ||
| Frequency | 50 / 60 Hz | |
| AC Voltage | 100-127 VAC / 200-240 VAC | |
| Current | 0.6 A / 0.4 A | |
| Power Consumption (230 VAC) | Idle: 15.4W | |
| Max Power (w/o PoE): 33W | ||
| Safety | ||
| UL 60950-1; IEC 60950-1; | ||
| EN 60950-1; CAN/ | ||
| CSA-C22.2 No. 60950-1; | ||
| EN 60825-1 | ||
| UL 62368-1 Ed. 2; IEC | ||
| 62368-1 Ed. 2; EN 62368- | ||
| 1.440277778 | ||
| Emissions | ||
| VCCI-CISPR 32, Class A; CNS | ||
| 13438; ICES-003 Issue 6 | ||
| Class A; FCC CFR 47 | ||
| Part 15, Class A; | ||
| EN 55032: 2015 +AC:2016 / | ||
| CISPR-32, Class A | ||
| Lasers | ||
| EN 60825-1:2007 / IEC 60825- | ||
| 1:2007 Class 1 | ||
| Class 1 Laser Products / Laser Klasse 1 | ||
| (Applicable for accessories - Optical Transceivers only) | ||
| Immunity | ||
| Generic | CISPR 24 / CISPR 35 | |
| EN | EN 55024:2010 / | |
| EN 55035:2017 | ||
| ESD | IEC 61000-4-2 | |
| Radiated | IEC 61000-4-3 | |
| EFT/Burst | IEC 61000-4-4 | |
| Surge | IEC 61000-4-5 | |
| Conducted | IEC 61000-4-6 | |
| Power frequency magnetic field | IEC 61000-4-8 | |
| Voltage dips and interruptions | IEC 61000-4-11 | |
| Harmonics | EN 61000-3-2, IEC 61000-3-2 | |
| Flicker | EN 61000-3-3, IEC 61000-3-3 | |
| Mounting and Enclosure | ||
| Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting |
