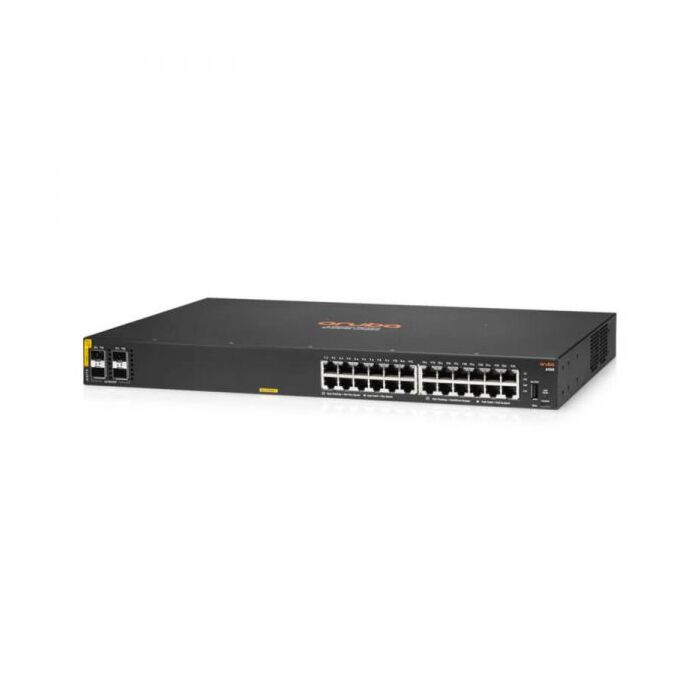

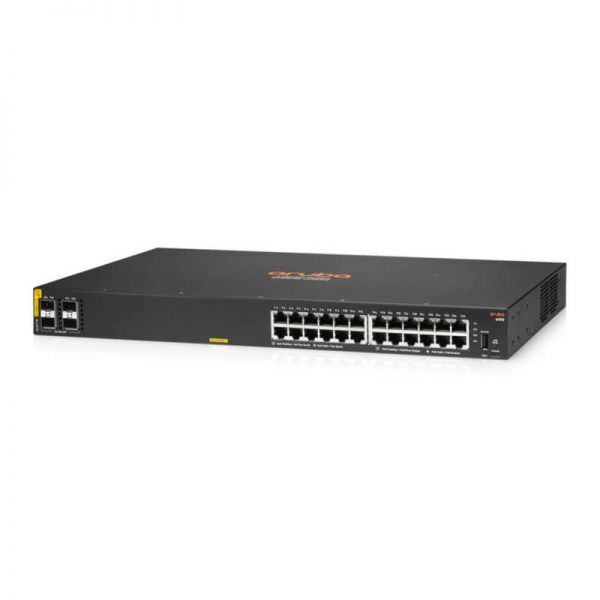

HP Aruba 6100 Switch 24G PoE+ 4 x SFP Slots+, with 128Gbps Capacity JL677A

In stock
SKU
JL677A
R 38,230.00
Quick Overview
Aruba 6100 24G POE+ CL4 4SFP+ Switch - Enhanced Network Connectivity Introducing the Aruba 6100 24G POE+ CL4 4SFP+ Switch - a superior network solution designed to offer unparalleled performance and energy efficiency. With its seamless integration and robust features, this switch is perfect for modern infrastructures requiring both flexibility and power. Specifications You Can Rely On SKU: JL677A 24x 10/100/1000BASE-T Ports 4x 1G/10G SFP+ Ports for flexible uplink PoE+ support adhering to IEEE 802.3af, 802.3at standards 1x USB-C Console Port and 1x USB Type-A Host Port Power & Efficiency Fixed 500W Power Supply Capable of delivering up to 370W Class 4 PoE Power Rugged fixed fan design for optimal cooling Physical Dimensions Height: 4.39 cm (1.73") Width: 44.2 cm (17.4") Depth: 26.82 cm (10.56") Weight: 4.19 kg (9.24 lbs) Advanced Hardware Capabilities Dual Core ARM Cortex A9 Processor at 1016 MHz 4 GB DDR3 RAM and 16 GB eMMC Storage Packet Buffer Memory of 12.38MB (4.5MB Ingress / 7.875MB Egress) High Performance Metrics Switching Capacity: 128 Gbps Throughput Capacity: 95.2 Mpps Low Average Latency: 1.5 μSec for 1 Gbps; 1.8 μSec for 10 Gbps Networking and Protocol Capacity IPv4 Host Table: 1,024 Entries IPv6 Host Table: 512 Entries MAC Table Capacity of 8,192 Entries IGMP and MLD Supports with 512 Groups Environmental Capacities Operating Temperature: 32°F to 113°F (0°C to 45°C) Relative Humidity: 15% to 95% (non-condensing) Max Operating Altitude: 10,000 ft (3 km) Compliance and Safety Standards UL 60950-1; IEC 60950-1; EN 60950-1 Compliant EN 60825-1:2007, IEC 60825-1:2007 for Optics CISPR 24 Immunity, CISPR 32 Emissions Compliant Choose the Aruba 6100 Switch for a superior networking setup, ensuring reliable connectivity with advanced PoE capabilities for your business needs.

Aruba 6100 24G POE+ CL4 4SFP+ Switch - Enhanced Network Connectivity

Introducing the Aruba 6100 24G POE+ CL4 4SFP+ Switch - a superior network solution designed to offer unparalleled performance and energy efficiency. With its seamless integration and robust features, this switch is perfect for modern infrastructures requiring both flexibility and power.

Specifications You Can Rely On

  • SKU: JL677A
  • 24x 10/100/1000BASE-T Ports
  • 4x 1G/10G SFP+ Ports for flexible uplink
  • PoE+ support adhering to IEEE 802.3af, 802.3at standards
  • 1x USB-C Console Port and 1x USB Type-A Host Port

Power & Efficiency

  • Fixed 500W Power Supply
  • Capable of delivering up to 370W Class 4 PoE Power
  • Rugged fixed fan design for optimal cooling

Physical Dimensions

  • Height: 4.39 cm (1.73")
  • Width: 44.2 cm (17.4")
  • Depth: 26.82 cm (10.56")
  • Weight: 4.19 kg (9.24 lbs)

Advanced Hardware Capabilities

  • Dual Core ARM Cortex A9 Processor at 1016 MHz
  • 4 GB DDR3 RAM and 16 GB eMMC Storage
  • Packet Buffer Memory of 12.38MB (4.5MB Ingress / 7.875MB Egress)

High Performance Metrics

  • Switching Capacity: 128 Gbps
  • Throughput Capacity: 95.2 Mpps
  • Low Average Latency: 1.5 μSec for 1 Gbps; 1.8 μSec for 10 Gbps

Networking and Protocol Capacity

  • IPv4 Host Table: 1,024 Entries
  • IPv6 Host Table: 512 Entries
  • MAC Table Capacity of 8,192 Entries
  • IGMP and MLD Supports with 512 Groups

Environmental Capacities

  • Operating Temperature: 32°F to 113°F (0°C to 45°C)
  • Relative Humidity: 15% to 95% (non-condensing)
  • Max Operating Altitude: 10,000 ft (3 km)

Compliance and Safety Standards

  • UL 60950-1; IEC 60950-1; EN 60950-1 Compliant
  • EN 60825-1:2007, IEC 60825-1:2007 for Optics
  • CISPR 24 Immunity, CISPR 32 Emissions Compliant

Choose the Aruba 6100 Switch for a superior networking setup, ensuring reliable connectivity with advanced PoE capabilities for your business needs.

More Information
SKUJL677A
ManufacturerAruba
Description
24x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports
 Supports PoE Standards IEEE
 802.3af, 802.3at
 1x USB-C Console Port 1x USB Type-A Host port
Power suppliesFixed power supply (500W)
 Up to 370W of Class 4 PoE Power
FansFixed fans
Physical characteristics
Dimensions(H) 4.39 cm
 (W) 44.2 cm
 (D) 26.82 cm
 (1.73" x 17.4" x 10.56")
Configuration Weight4.19kg (9.24 lbs)
Additional Specifications
CPUDual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash4 GB DDR3
 16 GB eMMC
Packet Buffer12.38MB (4.5MB Ingress/7.875MB
 Egress)
Performance
Model Switching Capacity128 Gbps
Model Throughput Capacity95.2 Mpps
Average Latency (LIFO-64- bytes packets)1 Gbps: 1.5 μSec , 10 Gbps: 1.8μSec
Switched Virtual16
Interfaces (dual stack)
IPv4 Host Table (ARP)1,024
IPv6 Host Table (ND)512
IPv4 Unicast Routes512
IPv6 Unicast Routes512
MAC Table Capacity8,192
IGMP Groups512
MLD Groups512
IPv4/IPv6/MAC ACL256 / 128 / 256
Entries (ingress)
Environment
Operating Temperature32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft
 (1.5 km) to 10000 ft (3.0 km)
Operating Relative Humidity15% to 95% at 104°F (40°C) non-condensing
Non-Operating-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-Operating Storage Relative Humidity15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude10000 feet (3 km) Max
Max Non-Operating15000 feet (4.6 km) Max
Altitude
AcousticSound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander)= 24.3 dB
Primary AirflowSide-to-side
Electrical Characteristics
Frequency50 / 60 Hz
AC Voltage100-127 VAC / 200-240 VAC
Current4.6 A / 2.3 A
Power Consumption (230 VAC)Idle: 22.9W
 Max Power (w/o PoE): 32.7W Max Power (w/ PoE): 455W
Safety
 UL 60950-1; IEC 60950-1;
 EN 60950-1; CAN/
 CSA-C22.2 No. 60950-1;
 EN 60825-1
 UL 62368-1 Ed. 2; IEC
 62368-1 Ed. 2; EN 62368-1:2014
Emissions
 VCCI-CISPR 32, Class A; CNS
 13438; ICES-003 Issue 6
 Class A; FCC CFR 47
 Part 15, Class A;
 EN 55032: 2015 +AC:2016 /
 CISPR-32, Class A
Lasers
 EN 60825-1:2007 / IEC 60825-
 1:2007 Class 1
 Class 1 Laser Products / Laser Klasse 1
 (Applicable for accessories - Optical Transceivers only)
Immunity
GenericCISPR 24 / CISPR 35
ENEN 55024:2010 /
 EN 55035:2017
ESDIEC 61000-4-2
RadiatedIEC 61000-4-3
EFT/BurstIEC 61000-4-4
SurgeIEC 61000-4-5
ConductedIEC 61000-4-6
Power frequencyIEC 61000-4-8
magnetic field
Voltage dips andIEC 61000-4-11
interruptions
HarmonicsEN 61000-3-2, IEC 61000-3-2
FlickerEN 61000-3-3, IEC 61000-3-3
Mounting and Enclosure
 Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
