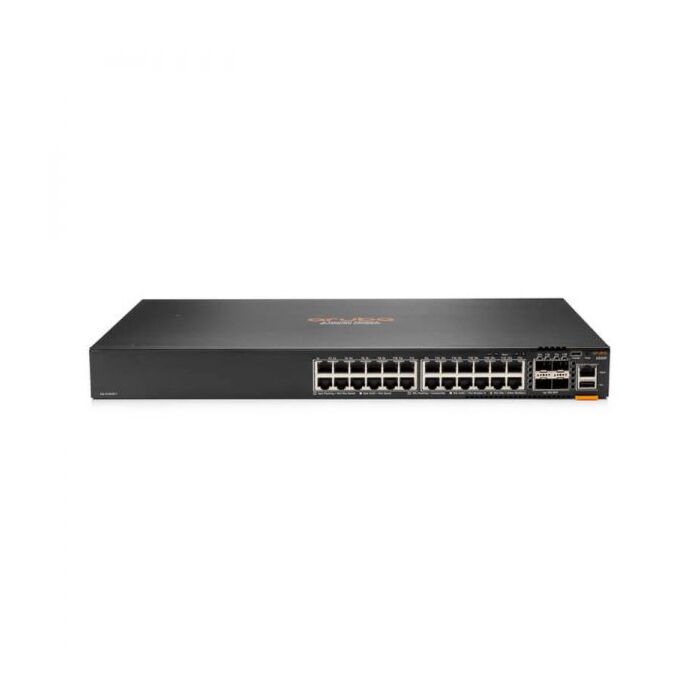

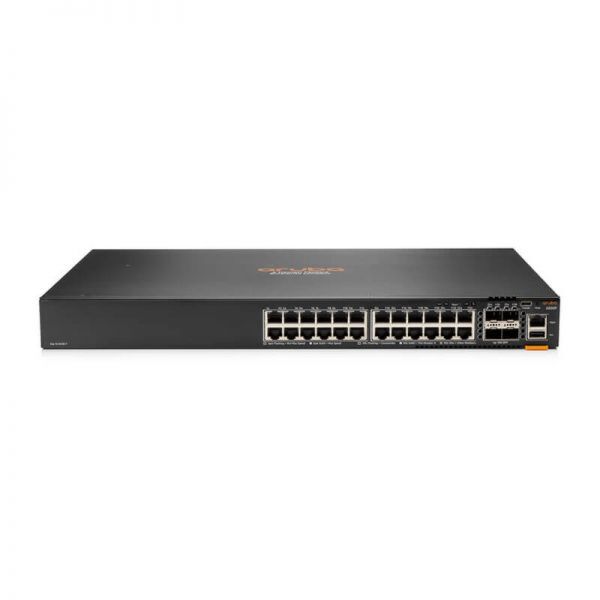

Aruba 6200F 24G 4SFP+ Switch (JL724A) |
I/O ports | 24x ports 10/100/1000BASE-T ports 4x 1/10G SFP ports |
Additional ports and slots | 1x USB-C console port 1x OOBM port 1x USB Type-A host port 1x Bluetooth dongle to be used with Aruba CX Mobile App |
Power supplies | Fixed power supply (200W) |
Fans | Fixed fans |
Physical characteristics | Dimensions | 17.4(w) x 12.9(d) x 1.73(h) in 44.2 x 32.7 x 4.39 cm |
Weight | 9.61 lbs (4.36 kg) |
CPU | Quad Core ARM Cortex™ A72 @ 1.8 GHz |
Memory and Flash | 8 GB DDR4 16 GB eMMC |
Packet buffer | 8 MB packet buffer memory |
Performance | Model switching capacity | 128 Gbps |
Model throughput capacity | Up to 95.2 Mpps |
Average latency (LIFO-64-bytes packets) | 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec |
Stack size | 8 members |
Max. stacking distance | Up to 10 kms with long range transceivers |
Switched virtual interfaces (dual stack) | 128 |
IPv4 host table (ARP) | 8,192 |
IPv6 host table (ND) | 8,192 |
IPv4 unicast routes | 2,048 |
IPv6 unicast routes | 1,024 |
MAC table capacity | 16,000 |
IGMP groups | 1,024 |
MLD groups | 1,024 |
IPv4/IPv6/MAC ACL entries (ingress) | 5,120/1280/5,120 |
IPv4/IPv6/MAC ACL entries (egress) | 2,048/512/2,048 |
Environment | Operating temperature | 32°F to 113°F (0°C to 45°C) up to 5,000 ft Derate -1°C for every 1,000 ft from 5,000 to 10,000 ft |
Operating relative humidity | 15% to 95% @ 104°F (40°C) non-condensing |
Non-operating temperature | -40°F to 158°F (-40°C to 70°C) up to 15,000 ft |
Non-operating relative humidity | 15% to 90% @ 149°F (65°C) non-condensing |
Max operating altitude | Up to 10,000ft (3.048 Km) |
Max non-operating altitude | 15,000 feet (4.6 km) max |
Acoustics | Sound power, LWAd = 4.9 Bel Sound pressure, LpAm (bystander) = 32.5 dB |
Primary airflow | Front and side-to-back |
Electrical characteristics | Frequency | 50Hz/60Hz |
AC voltage | 100-120V/200-240V |
Current | 2.5A/1.4A |
80plus.org certification | 80 PLUS Silver |
Maximum heat dissipation BTU/hr and kJ/hr info needed | 232 BTU/hr 245 kJ/hr |
201 BTU/hr 212 kJ/hr |
222 BTU/hr 234 kJ/hr |
Power consumption (230 VAC) | Hibernation (0 rpm fan): 7W Idle: 49W 100% traffic rate: 59W |
Safety | - EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013
- EN 62368-1:2014 +A11:2017
- UL 60950-1 2nd Ed.
- CAN/CSA-C22.2 No. 60950-1-07
- IEC 60950-1:2005 w/all known National Deviations
- IEC 62368-1:2014 2nd Ed.
- CNS-14336-1
|
Emissions | - EN 55032:2015 +AC:2016, Class A
- EN 55024:2010
- EN 55035:2017
- EN 61000-3-2:2014
- EN 61000-3-3:2013
- FCC 47 CFR part 15B, Class A
- ICES-003 Class A
- VCCI Class A
- CISPR 32 Ed 2.0: 2015 + COR1:2016, Class A
- CISPR 24:2010
- CISPR 35:2016
|
Lasers | EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (applicable for accessories - optical transceivers only) |
Immunity | Generic | CISPR 35 |
EN | EN 55024:2010 / EN 55035:2017 |
ESD | EN 61000-4-2 |
Radiated | EN 61000-4-3 |
EFT/Burst | EN 61000-4-4 |
Surge | EN 61000-4-5 |
Conducted | EN 61000-4-6 |
Power frequency magnetic field | IEC 61000-4-8 |
Voltage dips and interruptions | EN 61000-4-11 |
Harmonics | EN 61000-3-2, IEC 61000-3-2 |
Flicker | EN 61000-3-3, IEC 61000-3-3 |
Mounting and Enclosure | Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included. |
