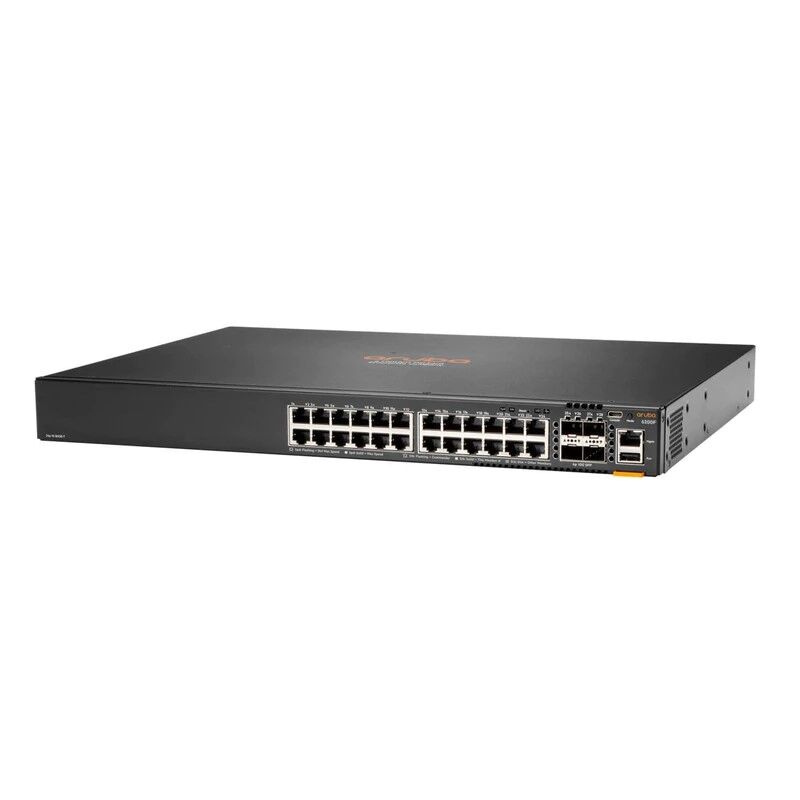

Aruba 6200F 24G CL4 4SFP+370W Switch

Aruba 6200F 24G 4SFP+ Switch (JL724A)

I/O ports

24x ports 10/100/1000BASE-T ports

4x 1/10G SFP ports

Additional ports and slots

1x USB-C console port

1x OOBM port

1x USB Type-A host port

1x Bluetooth dongle to be used with Aruba CX Mobile App

Power supplies

Fixed power supply (200W)

Fans

Fixed fans

Physical characteristics

Dimensions

17.4(w) x 12.9(d) x 1.73(h) in

44.2 x 32.7 x 4.39 cm

Weight

9.61 lbs (4.36 kg)

CPU

Quad Core ARM Cortex™ A72 @ 1.8 GHz

Memory and Flash

8 GB DDR4

16 GB eMMC

Packet buffer

8 MB packet buffer memory

Performance

Model switching capacity

128 Gbps

Model throughput capacity

Up to 95.2 Mpps

Average latency (LIFO-64-bytes packets)

1 Gbps: 2.28 μSec

10 Gbps: 1.46 μSec

Stack size

8 members

Max. stacking distance

Up to 10 kms with long range transceivers

Switched virtual interfaces (dual stack)

128

IPv4 host table (ARP)

8,192

IPv6 host table (ND)

8,192

IPv4 unicast routes

2,048

IPv6 unicast routes

1,024

MAC table capacity

16,000

IGMP groups

1,024

MLD groups

1,024

IPv4/IPv6/MAC ACL entries (ingress)

5,120/1280/5,120

IPv4/IPv6/MAC ACL entries (egress)

2,048/512/2,048

Environment

Operating temperature

32°F to 113°F (0°C to 45°C) up to 5,000 ft

Derate -1°C for every 1,000 ft from 5,000 to 10,000 ft

Operating relative humidity

15% to 95% @ 104°F (40°C) non-condensing

Non-operating temperature

-40°F to 158°F (-40°C to 70°C) up to 15,000 ft

Non-operating relative humidity

15% to 90% @ 149°F (65°C) non-condensing

Max operating altitude

Up to 10,000ft (3.048 Km)

Max non-operating altitude

15,000 feet (4.6 km) max

Acoustics

Sound power, LWAd = 4.9 Bel

Sound pressure, LpAm (bystander) = 32.5 dB

Primary airflow

Front and side-to-back

Electrical characteristics

Frequency

50Hz/60Hz

AC voltage

100-120V/200-240V

Current

2.5A/1.4A

80plus.org certification

80 PLUS Silver

Maximum heat dissipation BTU/hr and kJ/hr info needed

232 BTU/hr

245 kJ/hr

201 BTU/hr

212 kJ/hr

222 BTU/hr

234 kJ/hr

Power consumption (230 VAC)

Hibernation (0 rpm fan): 7W

Idle: 49W

100% traffic rate: 59W

Safety

• EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 + A2:2013
• EN 62368-1:2014 +A11:2017
• UL 60950-1 2nd Ed.
• CAN/CSA-C22.2 No. 60950-1-07
• IEC 60950-1:2005 w/all known National Deviations
• IEC 62368-1:2014 2nd Ed.
• CNS-14336-1

Emissions

• EN 55032:2015 +AC:2016, Class A
• EN 55024:2010
• EN 55035:2017
• EN 61000-3-2:2014
• EN 61000-3-3:2013
• FCC 47 CFR part 15B, Class A
• ICES-003 Class A
• VCCI Class A
• CISPR 32 Ed 2.0: 2015 + COR1:2016, Class A
• CISPR 24:2010
• CISPR 35:2016

Lasers

EN 60825-1:2007 / IEC 60825-1:2007 Class 1

Class 1 Laser Products / Laser Klasse 1

(applicable for accessories - optical transceivers only)

Immunity

Generic

CISPR 35

EN

EN 55024:2010 / EN 55035:2017

ESD

EN 61000-4-2

Radiated

EN 61000-4-3

EFT/Burst

EN 61000-4-4

Surge

EN 61000-4-5

Conducted

EN 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

EN 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Mounting and Enclosure

Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet.

Horizontal surface mounting only.

2-post rack kit included.
