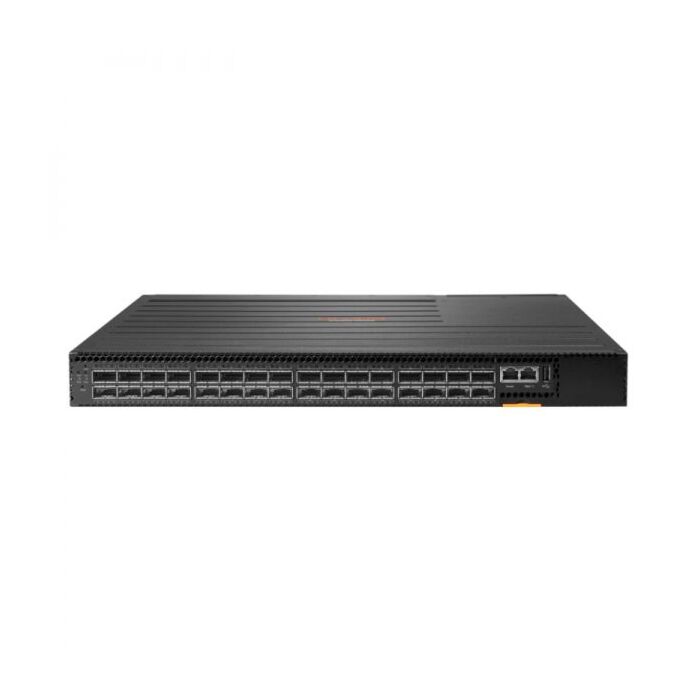

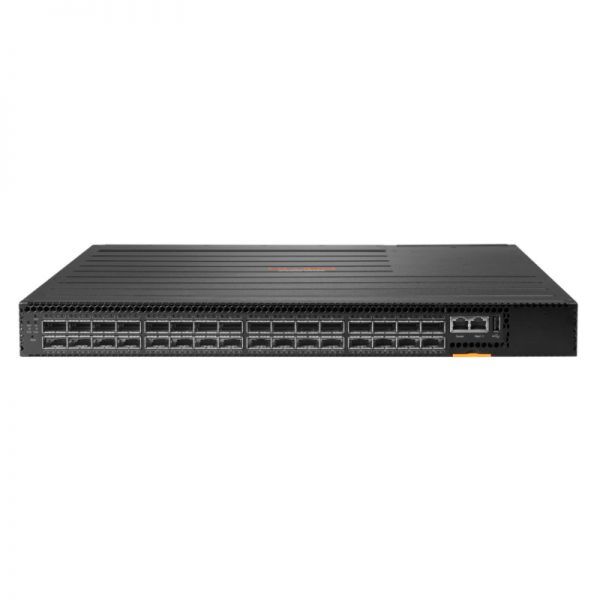

Aruba 8320 32 40G QSFP+ with X472 5 Fans | JL579A

Aruba 8320 32p 40G QSFP+ with X472 5 Fans 2 Power Supply Switch Bundle (JL579A)

I/O ports and slots

Supports 32 ports of 40G for use with QSFP+ transceivers. Optional 4x10G breakout cables.

Additional ports and slots

Module VoQ

16 MB Packet Buffer

Power supplies

Field-replaceable, hot-swappable, and up to 2 power supplies. Bundles (JL479A, JL579A, and JL581A) include 2 power supplies.

Fans

Field-replaceable, hot-swappable, and up to 5 fans. Bundles (JL479A, JL579A, and JL581A) include 5 fans.

MTBF

296,526 hrs

Physical characteristics

Dimensions

17.26in (438mm) (W) 20.28in (515mm) (D) 1.71in (43.5mm) (H)

Full configuration weight

21.27lbs (9.7kb)

Memory and Processor

CPU

2.4GHz

Memory Drive

16 GB RAM, 64 GB SSD, and 8 GB Flash

Performance*

Switching Capacity

2.5Tbs

IPv4 Host Table

120,000

IPv6 Host Table

52,000

IPv4 Unicast Routes

131,072

IPv6 Unicast Routes

32,732

MAC Address Table Size

98,304

IGMP Groups

4,094

MLD Groups

4,094

IPv4 Multicast Routes

4,094

IPv6 Multicast Routes

4,094

Notes: * Some of these scaling numbers assume shared tables.

Mounting and enclosure

Mounts in an EIA standard 19-inch rack or other equipment cabinet (hardware included); horizontal surface mounting only

Environment

Operating Temperature

0°C to 40°C (32°F to 104°F) up to 10,000 ft (3Km)

Operating Relative Humidity

5% to 95% at 40°C (104°F) non-condensing

Non-Operating

-40°C to 70°C (-40°F to 158°F) up to 15,000Ft (4.6Km)

Non-Operating/ Storage Relative Humidity

5% to 95% @ 65°C (149°F)

Max Operating Altitude

Up to 10,000ft (3.048 Km)

Max Non-Operating

Up to 15,000ft (4.6 Km)

Acoustic

Sound Pressure (LpAm) (Bystander) 79 dB

Primary Airflow Direction

Front-to-Back

Electrical characteristics

Frequency

50-65 Hz

AC voltage

100-127 and 200-240 with either 50 or 60Hz VAC

Current

6A (low voltage) - 3A (high voltage)

Power output

310 W

Safety

EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN60825-1; IEC60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC 60825-1; UL60950-1, CSA 22.2 No 60950-

EMC

EN 55032:2012, Class A; EN 55024:2010; EN 61000-3-2:2014, Class A; EN 61000-3-3:2013; FCC CFR 47 Part 15:2010, Class A; EN 50581:2012 (RoHS)

Lasers

EN60825-1:2014 / IEC 60825-1: 2014 Class 1; Class 1 Laser Products / Laser Klasse 1

Management

SNMP; RJ-45 serial; USB micro USB console; RJ-45 Ethernet port
