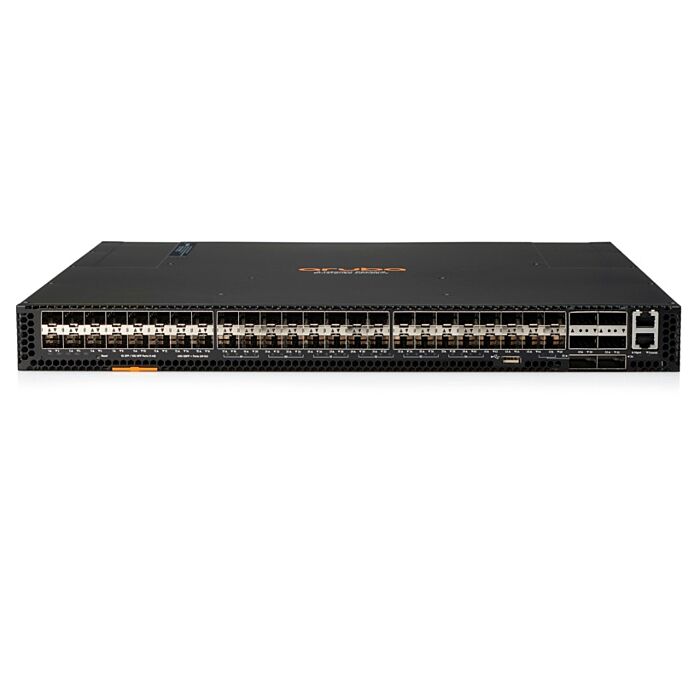

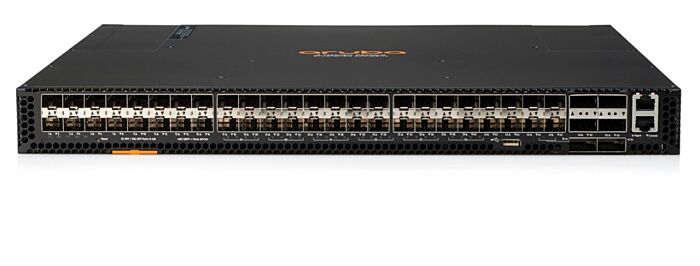

Aruba 8320 48p 10G SFP/SFP+ and 6p 40G QSFP+ with X472 5 Fans 2 Power Supply Switch Bundle (JL479A)
I/O ports and slots
Supports 48 ports of 1/10G for use with SFP and SFP+ transceivers, and 6 ports of 40G for use with QSFP+ transceivers. Optional 1GBASE-T and 10GBASE-T transceivers and 4x10G breakout cables.
Additional ports and slots
Module VoQ
16 MB Packet Buffer
Power supplies
Field-replaceable, hot-swappable, and up to 2 power supplies. Bundles (JL479A, JL579A, and JL581A) include 2 power supplies.
Fans
Field-replaceable, hot-swappable, and up to 5 fans. Bundles (JL479A, JL579A, and JL581A) include 5 fans.
MTBF
314,721 hrs
Physical characteristics
Dimensions
17.4in (442mm) (w) x 19.9in (505.5mm) (d) x 1.7in (43.2mm) (h)
Full configuration weight
20.7lbs (9.4kg)
Memory and Processor
CPU
2.4GHz
Memory Drive
16 GB RAM, 64 GB SSD, and 8 GB Flash
Performance*
Switching Capacity
2.5Tbs
IPv4 Host Table
120,000
IPv6 Host Table
52,000
IPv4 Unicast Routes
131,072
IPv6 Unicast Routes
32,732
MAC Address Table Size
98,304
IGMP Groups
4,094
MLD Groups
4,094
IPv4 Multicast Routes
4,094
IPv6 Multicast Routes
4,094
Notes:* Some of these scaling numbers assume shared tables.
Mounting and enclosure
Mounts in an EIA standard 19-inch rack or other equipment cabinet (hardware included); horizontal surface mounting only
Environment
Operating Temperature
0°C to 40°C (32°F to 104°F) up to 10,000 ft (3Km)
Operating Relative Humidity
5% to 95% at 40°C (104°F) non-condensing
Non-Operating
-40°C to 70°C (-40°F to 158°F) up to 15,000Ft (4.6Km)
Non-Operating/ Storage Relative Humidity
5% to 95% @ 65°C (149°F)
Max Operating Altitude
Up to 10,000ft (3.048 Km)
Max Non-Operating
Up to 15,000ft (4.6 Km)
Acoustic
Sound Pressure (LpAm) (Bystander) 61.1 dB
Primary Airflow Direction
Front-to-Back
Electrical characteristics
Frequency
50-65 Hz
AC voltage
100-127 and 200-240 with either 50 or 60Hz VAC
Current
6A (low voltage) - 3A (high voltage)
Power output
357 W
Safety
EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; EN60825-1; IEC60950-1:2005 Ed.2; Am 1:2009+A2:2013; IEC 60825-1; UL60950-1, CSA 22.2 No 60950-
EMC
EN 55032:2012, Class A; EN 55024:2010; EN 61000-3-2:2014, Class A; EN 61000-3-3:2013; FCC CFR 47 Part 15:2010, Class A; EN 50581:2012 (RoHS)
Lasers
EN60825-1:2014 / IEC 60825-1: 2014 Class 1; Class 1 Laser Products / Laser Klasse 1
Management
SNMP; RJ-45 serial; USB micro USB console; RJ-45 Ethernet port
