Aruba IOn 1930 Switch - 24 Ports Gigabit, with 4 x SFP Slots+ JL682A
Quick Overview
Aruba IOn 1930 24G 4SFP+ Switch JL682A Introducing the Aruba IOn 1930 24G 4SFP+ Switch, the ultimate networking powerhouse for businesses. Designed for small to medium-sized enterprises, this switch enhances your network with unmatched reliability and performance. Part of the acclaimed Aruba Instant On 1930 Series, it provides exceptional value with its comprehensive feature set. Immersive Features 24 Gigabit Ethernet ports for seamless connectivity and rapid data transfers 4 SFP+ ports ensuring high-speed uplink and stacking capabilities Advanced VLANs, link aggregation, and QoS for optimal network efficiency Built-in security features like access control lists (ACLs) and Secure Shell (SSH) User-friendly setup and management with an intuitive web interface, plus remote management capabilities for hassle-free troubleshooting and configurations. Technical Specifications I/O Ports and Slots 24 RJ-45 autosensing 10/100/1000 ports compliant with IEEE standards 4 SFP+ 1/10GbE ports for extended connectivity Physical Characteristics Dimensions: 17.42(w) x 8.72(d) x 1.73(h) in (44.25 x 22.15 x 4.39 cm), 1U height Weight: 5.32 lb (2.41 kg) CPU ARM Cortex-A9 @ 800 MHz Memory and Flash 512 MB SDRAM 256 MB flash memory Packet Buffer 1.5 MB buffer for smooth data handling Performance 100 Mb latency: 4.7 uSec Packet size: 64B Elevate your business's network with the Aruba IOn 1930 24G 4SFP+ Switch. Experience superior security, performance, and scalability at a competitive price. Invest in the Aruba IOn 1930 Series today and transform your network's potential. .
Details

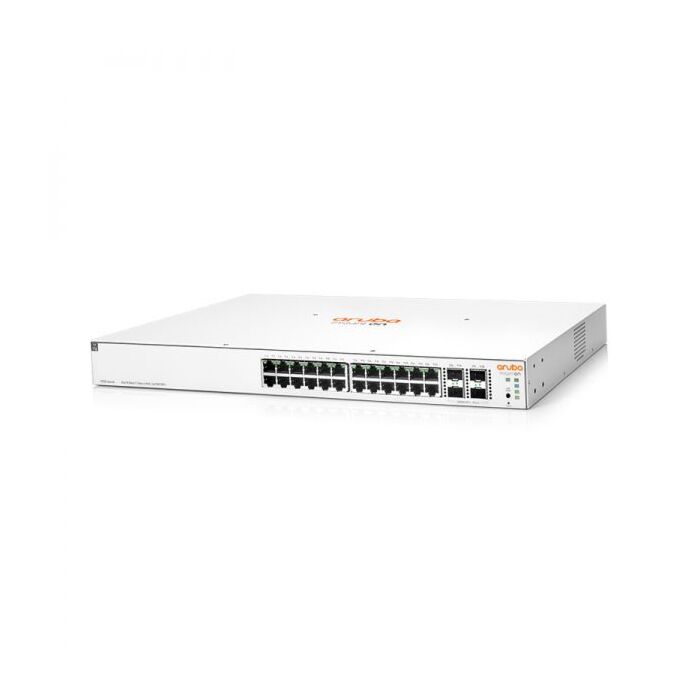

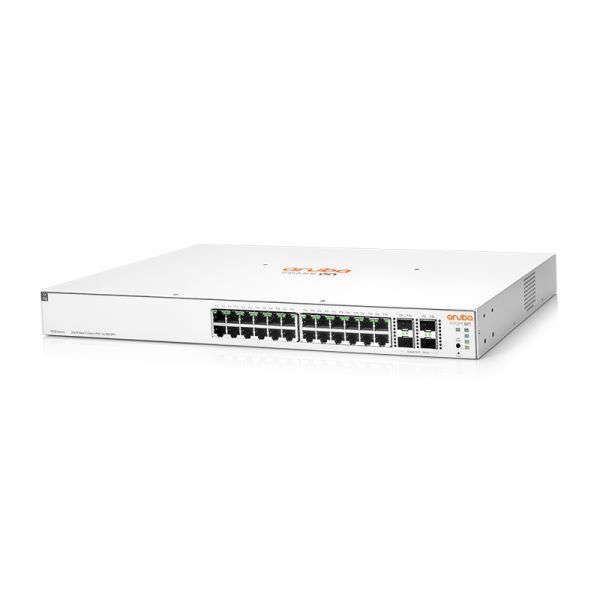

Aruba IOn 1930 24G 4SFP+ Switch
JL682A
Introducing the Aruba IOn 1930 24G 4SFP+ Switch, the ultimate networking powerhouse for businesses. Designed for small to medium-sized enterprises, this switch enhances your network with unmatched reliability and performance. Part of the acclaimed Aruba Instant On 1930 Series, it provides exceptional value with its comprehensive feature set.
Immersive Features
- 24 Gigabit Ethernet ports for seamless connectivity and rapid data transfers
- 4 SFP+ ports ensuring high-speed uplink and stacking capabilities
- Advanced VLANs, link aggregation, and QoS for optimal network efficiency
- Built-in security features like access control lists (ACLs) and Secure Shell (SSH)
User-friendly setup and management with an intuitive web interface, plus remote management capabilities for hassle-free troubleshooting and configurations.
Technical Specifications
I/O Ports and Slots
- 24 RJ-45 autosensing 10/100/1000 ports compliant with IEEE standards
- 4 SFP+ 1/10GbE ports for extended connectivity
Physical Characteristics
- Dimensions: 17.42(w) x 8.72(d) x 1.73(h) in (44.25 x 22.15 x 4.39 cm), 1U height
- Weight: 5.32 lb (2.41 kg)
CPU
- ARM Cortex-A9 @ 800 MHz
Memory and Flash
- 512 MB SDRAM
- 256 MB flash memory
Packet Buffer
- 1.5 MB buffer for smooth data handling
Performance
- 100 Mb latency: < 4.7 uSec
- Packet size: 64B
Elevate your business's network with the Aruba IOn 1930 24G 4SFP+ Switch. Experience superior security, performance, and scalability at a competitive price. Invest in the Aruba IOn 1930 Series today and transform your network's potential.
More Information
| SKU | JL682A |
|---|---|
| Manufacturer | Aruba |
Technical Details
I/O Ports and Slots | 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ 1/10GbE ports | |
Physical Characteristics | Dimensions | 17.42(w) x 8.72(d) x 1.73(h) in (44.25 x 22.15 x 4.39 cm) (1U height) |
Weight | 5.32 lb (2.41 kg) | |
CPU | ARM Cortex-A9 @ 800 MHz | |
Memory And Flash | 512 MB SDRAM 256 MB flash | |
Packet Buffer | 1.5 MB | |
Performance | 100 Mb latency | < 4.7 uSec |
Packet size | 64B | |
1000 Mb latency | <2.4 uSec | |
Packet size | 64B | |
10000 Mb latency | <1.3 uSec | |
Packet size | 64B | |
Throughput (Mpps) | 95.23 Mpps | |
Packet size | 64B | |
Switching capacity | 128 Gbps | |
Routing table size (# of static entries) | 32 | |
MAC address table size (# of entries) | 16,000 | |
Reliability MTBF (years) | 158 | |
Environment | Operating temperature | 32°F to 104°F (0°C to 40°C) |
Operating relative humidity | 15% to 95% @ 104°F (40°C) | |
Non-operating temperature | ‑40°F to 158°F (‑40°C to 70°C) | |
Non-operating relative humidity | 15% to 95% @ 140°F (60°C) | |
Altitude | Up to 10,000ft (3.048 Km) | |
Acoustic | Power: 0 dB (no fan) | |
Electrical Characteristics | Frequency | 50-60 Hz |
AC voltage | 100-240V | |
Current | 0.5/0.3 A | |
Maximum power rating | 22.6 W | |
Idle power | 9.3 W | |
PoE power | n/a | |
Power supply | Internal power supply | |
Safety | UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 | |
Emissions | VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A | |
Immunity | Generic | CISPR 24 / CISPR 35 |
EN | EN 55024:2010 / EN 55035:2017 | |
ESD | IEC 61000-4-2 | |
Radiated | IEC 61000-4-3 | |
EFT/Burst | IEC 61000-4-4 | |
Surge | IEC 61000-4-5 | |
Conducted | IEC 61000-4-6 | |
Power frequency magnetic field | IEC 61000-4-8 | |
Voltage dips and interruptions | IEC 61000-4-11 | |
Harmonics | IEC 61000-3-2, EN 61000-3-2 | |
Flicker | IEC 61000-3-3, EN 61000-3-3 | |
Device Management | Aruba Instant On solution; Web browser; SNMP Manager | |
Accesories | Transceivers | Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A ) Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D) Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A) Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E) Aruba 10G SFP+ to SFP+ 1m DAC (J9281D) Aruba 10G SFP+ to SFP+ 3m DAC (J9283D) |
