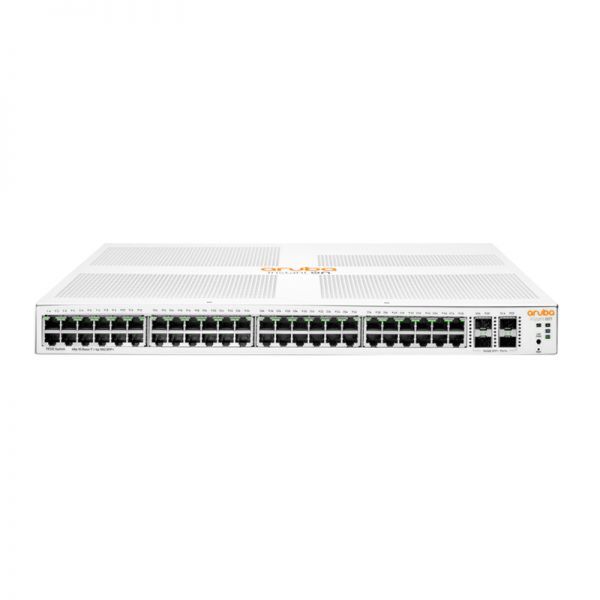

Aruba IOn 1930 Gigabit PoE Switch - 48 Ports (370 W)JL686A
Quick Overview
Aruba IOn 1930 48G POE 4SFP+ 370W Switch SKU: JL686A Overview Enhance your network performance with the Aruba IOn 1930 48G POE 4SFP+ 370W. This switch is designed to deliver robust connectivity, seamlessly integrating into your existing infrastructure and meeting all your connectivity demands with ease and reliability. Technical Specifications I/O Ports and Slots: 48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports Supported Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T) Duplex Modes: 10BASE-T/100BASE-TX - half or full, 1000BASE-T - full only 4 SFP+ 1/10GbE ports Physical Characteristics: Dimensions: 17.42(w) x 12.7(d) x 1.73(h) in (1U height) Weight: 9.97 lb (4.52 kg) Processor and Memory: CPU: ARM Cortex-A9 @ 800 MHz Memory: 512 MB SDRAM Flash: 256 MB Packet Buffer and Performance: Packet Buffer: 1.5 MB 100 Mb Latency: 4.5 µSec Packet Size: 64B Manufactured by Aruba, this switch ensures reliable data transfer with minimal latency, ideal for both small and medium enterprises looking to upgrade their network capabilities.
Details
Aruba IOn 1930 48G POE 4SFP+ 370W Switch
SKU: JL686A
Overview
Enhance your network performance with the Aruba IOn 1930 48G POE 4SFP+ 370W. This switch is designed to deliver robust connectivity, seamlessly integrating into your existing infrastructure and meeting all your connectivity demands with ease and reliability.
Technical Specifications
- I/O Ports and Slots:
- 48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports
- Supported Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T)
- Duplex Modes: 10BASE-T/100BASE-TX - half or full, 1000BASE-T - full only
- 4 SFP+ 1/10GbE ports
- Physical Characteristics:
- Dimensions: 17.42(w) x 12.7(d) x 1.73(h) in (1U height)
- Weight: 9.97 lb (4.52 kg)
- Processor and Memory:
- CPU: ARM Cortex-A9 @ 800 MHz
- Memory: 512 MB SDRAM
- Flash: 256 MB
- Packet Buffer and Performance:
- Packet Buffer: 1.5 MB
- 100 Mb Latency: < 4.5 µSec
- Packet Size: 64B
Manufactured by Aruba, this switch ensures reliable data transfer with minimal latency, ideal for both small and medium enterprises looking to upgrade their network capabilities.
More Information
| SKU | JL686A |
|---|---|
| Manufacturer | Aruba |
Technical Details
I/O Ports and Slots | 48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ 1/10GbE ports | |
Physical Characteristics | Dimensions | 17.42(w) x 12.7(d) x 1.73(h) in (44.25 x 32.26 x 4.39 cm) (1U height) |
Weight | 9.97 lb (4.52 kg) | |
CPU | ARM Cortex-A9 @ 800 MHz | |
Memory And Flash | 512 MB SDRAM 256 MB flash | |
Packet Buffer | 1.5 MB | |
Performance | 100 Mb latency | < 4.5 uSec |
Packet size | 64B | |
1000 Mb latency | <2.2 uSec | |
Packet size | 64B | |
10000 Mb latency | <1.2 uSec | |
Packet size | 64B | |
Throughput (Mpps) | 130.95 Mpps | |
Packet size | 64B | |
Switching capacity | 176 Gbps | |
Routing table size (# of static entries) | 32 | |
MAC address table size (# of entries) | 16,000 | |
Reliability MTBF (years) | 114 | |
Environment | Operating temperature | 32°F to 104°F (0°C to 40°C) |
Operating relative humidity | 15% to 95% @ 104°F (40°C) | |
Non-operating temperature | ‑40°F to 158°F (‑40°C to 70°C) | |
Non-operating relative humidity | 15% to 95% @ 140°F (60°C) | |
Altitude | Up to 10,000ft (3.048 Km) | |
Acoustic | Pressure: 40.6 Power: 63.2 dB | |
Electrical Characteristics | Frequency | 50-60 Hz |
AC voltage | 100 - 127 / 200 - 240 VAC | |
Current | 5/2.5 A | |
Maximum power rating | 460.0 W | |
Idle power | 34.5 W | |
PoE power | 370 W Class 4 PoE | |
Power supply | Internal power supply | |
Safety | UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 | |
Emissions | VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A | |
Immunity | Generic | CISPR 24 / CISPR 35 |
EN | EN 55024:2010 / EN 55035:2017 | |
ESD | IEC 61000-4-2 | |
Radiated | IEC 61000-4-3 | |
EFT/Burst | IEC 61000-4-4 | |
Surge | IEC 61000-4-5 | |
Conducted | IEC 61000-4-6 | |
Power frequency magnetic field | IEC 61000-4-8 | |
Voltage dips and interruptions | IEC 61000-4-11 | |
Harmonics | IEC 61000-3-2, EN 61000-3-2 | |
Flicker | IEC 61000-3-3, EN 61000-3-3 | |
Device Management | Aruba Instant On solution; Web browser; SNMP Manager | |
Accessories | Transceivers | Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A ) Aruba 1G SFP LC LX 10km SMF XCVR (J4859D) Aruba 1G SFP RJ45 T 100m Cat5e XCVR (J8177D) Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A) Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E) Aruba 10G SFP+ to SFP+ 1m DAC (J9281D) Aruba 10G SFP+ to SFP+ 3m DAC (J9283D) |
