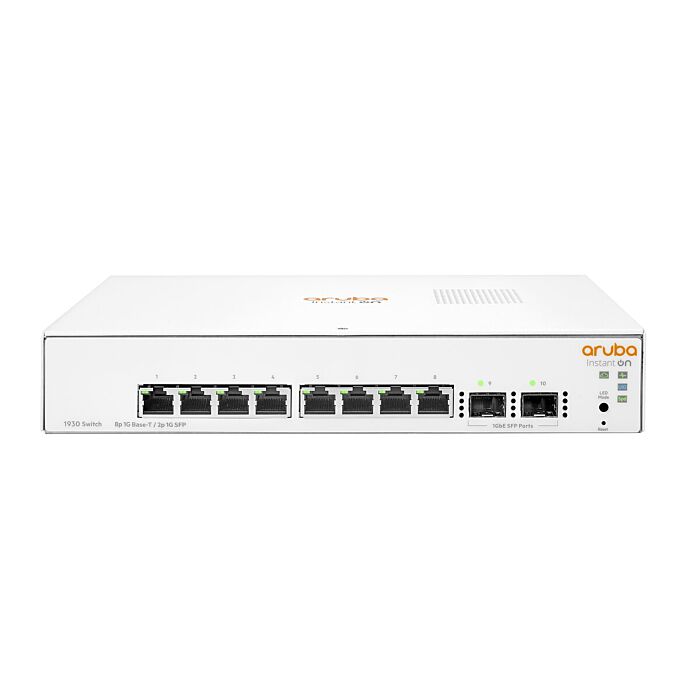

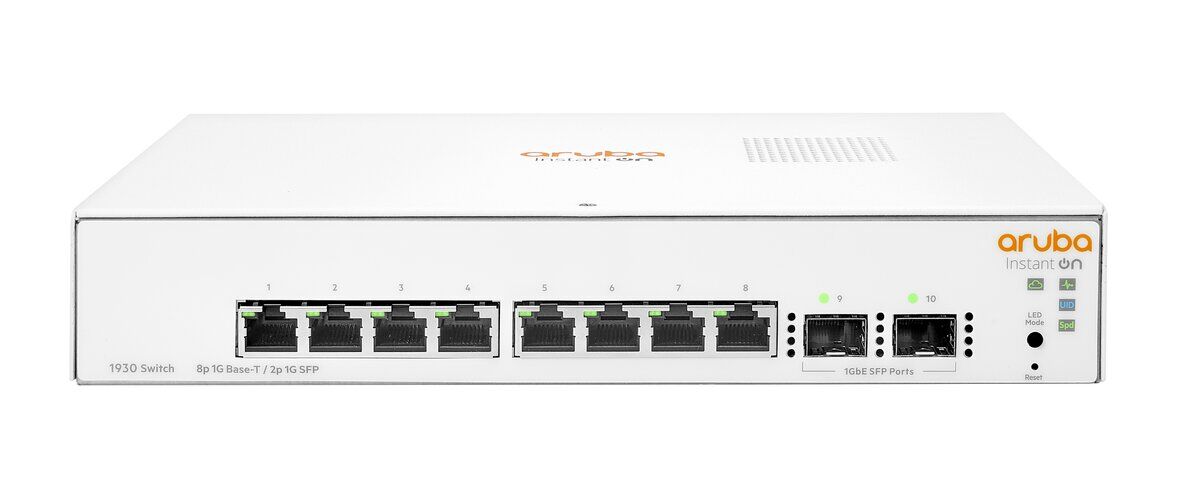

Aruba IOn 1930 8G 2SFP | High-Speed SMB Network Switch | JL680A
- Enhance your small or medium-sized business with seamless, robust network performance.
- Enjoy high-speed connectivity with 8 Gigabit Ethernet ports and 2 SFP ports for flexible device connections.
- Optimize network operations with advanced features like VLAN segmentation and QoS for secure and prioritized traffic management.
- User-friendly interface enables effortless network configuration and remote management from anywhere.
- Experience whisper-quiet performance with a durable, fanless design.
Aruba IOn 1930 8G 2SFP Switch - Enhance Your Network Today
Experience optimal connectivity with the Aruba IOn 1930 8G 2SFP Switch, SKU: JL680A. Designed to elevate small to medium-sized business networks, this switch offers superior performance and outstanding value. With numerous features, it propels your network into new realms of efficiency.
Key Features
The Aruba IOn 1930 8G 2SFP Switch stands out with its advanced capabilities:
- 8 Gigabit Ethernet ports and 2 SFP ports ensuring high-speed, reliable connections for all your devices.
- VLAN support for segmenting and managing network traffic, enhancing security and performance.
- Quality of Service (QoS) for prioritizing critical applications, ensuring smooth data transfers even during busy times.
User-Friendly Design
This switch is engineered for simplicity, with a user-friendly interface for easy configuration and monitoring. Remote management support allows access and control from any location at any time.
Reliable Performance
Durability is paramount, and this switch delivers exceptional longevity with its robust design. The fanless construction offers quiet, efficient operation, eliminating fan noise while sustaining a stable connection.
Technical Specifications
I/O Ports and Slots
- 8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
- 2 SFP 1GbE ports
Physical Characteristics
Dimensions
- 10(w) x 6.28(d) x 1.73(h) in (25.4 x 15.95 x 4.39 cm) (1U height)
Weight
- 2.55 lb (0.82 kg)
Processing and Memory
- ARM Cortex-A9 @ 800 MHz
- 512 MB SDRAM
- 256 MB flash
Packet Handling
- 1.5 MB Packet Buffer
Performance
- 100 Mb latency: < 5.2 uSec
- Packet size: 64B
Upgrade your network effortlessly with the Aruba IOn 1930 8G 2SFP Switch, and experience enhanced speeds, improved security, and superior performance. Explore and purchase today to take your networking to the next level.
Manufactured by Aruba
|
I/O Ports and Slots |
8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP 1GbE ports |
|
|
Physical Characteristics |
Dimensions |
10(w) x 6.28(d) x 1.73(h) in (25.4 x 15.95 x 4.39 cm) (1U height) |
|
Weight |
2.55 lb (0.82 kg) |
|
|
CPU |
ARM Cortex-A9 @ 800 MHz |
|
|
Memory And Flash |
512 MB SDRAM 256 MB flash |
|
|
Packet Buffer |
1.5 MB |
|
|
Performance |
100 Mb latency |
< 5.2 uSec |
|
Packet size |
64B |
|
|
1000 Mb latency |
<3.0 uSec |
|
|
Packet size |
64B |
|
|
10000 Mb latency |
n/a |
|
|
Packet size |
n/a |
|
|
Throughput (Mpps) |
14.88 Mpps |
|
|
Packet size |
64B |
|
|
Switching capacity |
20 Gbps |
|
|
Routing table size (# of static entries) |
32 |
|
|
MAC address table size (# of entries) |
8,000 |
|
|
Reliability MTBF (years) |
178 |
|
|
Environment |
Operating temperature |
32°F to 104°F (0°C to 40°C) |
|
Operating relative humidity |
15% to 95% @ 104°F (40°C) |
|
|
Non-operating temperature |
‑40°F to 158°F (‑40°C to 70°C) |
|
|
Non-operating relative humidity |
15% to 95% @ 140°F (60°C) |
|
|
Altitude |
Up to 10,000ft (3.048 Km) |
|
|
Acoustic |
Power: 0 dB (no fan) |
|
|
Electrical Characteristics |
Frequency |
50-60 Hz |
|
AC voltage |
100-240V |
|
|
Current |
0.2 A |
|
|
Maximum power rating |
11.0 W |
|
|
Idle power |
6.2 W |
|
|
PoE power |
n/a |
|
|
Power supply |
External power adapter (included) |
|
|
Safety |
UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 |
|
|
Emissions |
VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A |
|
|
Immunity |
Generic |
CISPR 24 / CISPR 35 |
|
EN |
EN 55024:2010 / EN 55035:2017 |
|
|
ESD |
IEC 61000-4-2 |
|
|
Radiated |
IEC 61000-4-3 |
|
|
EFT/Burst |
IEC 61000-4-4 |
|
|
Surge |
IEC 61000-4-5 |
|
|
Conducted |
IEC 61000-4-6 |
|
|
Power frequency magnetic field |
IEC 61000-4-8 |
|
|
Voltage dips and interruptions |
IEC 61000-4-11 |
|
|
Harmonics |
IEC 61000-3-2, EN 61000-3-2 |
|
|
Flicker |
IEC 61000-3-3, EN 61000-3-3 |
|
|
Device Management |
Aruba Instant On solution; Web browser; SNMP Manager |
|
|
Accessories |
Transceivers |
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A ) Aruba 1G SFP LC LX 10km SMF XCVR (J4859D) Aruba 1G SFP RJ45 T 100m Cat5e XCVR (J8177D) |
