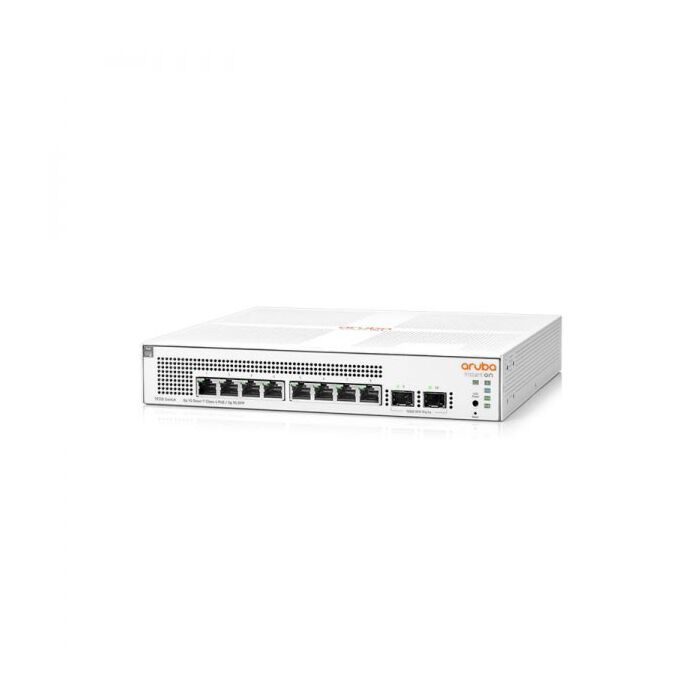

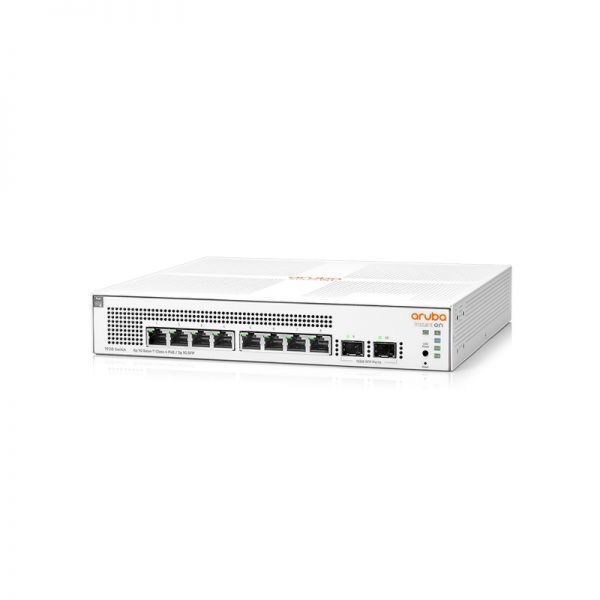

Aruba IOn 1930 POE Switch 8G 2SFP 124W PowerBoost
- 8 Gigabit Ethernet ports for seamless data transfer
- Power over Ethernet (POE) capability for powering compatible devices without extra cables
- 2 SFP ports for easy fiber-optic network expansion
- 124W power capacity supports multiple devices simultaneously
- Reliable and high-speed connectivity enhances productivity
- Setup and management via intuitive web interface
Aruba IOn 1930 8G POE 2SFP 124W Switch
Efficient and Reliable Network Solution
The Aruba IOn 1930 8G POE 2SFP 124W Switch, SKU: JL681A, stands as a premier choice for small to medium businesses seeking robust network connectivity. This efficient switch from the Aruba Instant On 1930 Series propels productivity with its exceptional performance and seamless network traffic handling capabilities.
Superior Functionality
Command over 8 high-speed Gigabit Ethernet ports and 2 versatile SFP uplink ports. The Aruba IOn 1930 switch flexes its adaptable connectivity to tackle high-bandwidth demands seamlessly. Boasting 124W power output with Power over Ethernet (POE) support, it energizes compatible devices such as IP cameras and access points effortlessly, making additional power adapters obsolete.
Intuitive Network Management
Aruba Instant On’s intuitive web interface revolutionizes network management. Monitor, control, and enhance your network's performance and security with ease from virtually anywhere.
Built for Reliability
Designed to safeguard and streamline your network environment, this switch features advanced VLAN and QoS support along with IGMP snooping, ensuring exceptional performance and minimal latency for all connected devices.
Future-Proof and Versatile
Embrace future-ready capabilities with IPv6 support, ensuring your infrastructure is poised for modern applications and device innovation.
Sleek and Durable Design
Integrated into any business setting effortlessly with its compact, robust design, this switch promises enduring performance.
Upgrade Your Network
Step up with the Aruba IOn 1930 8G POE 2SFP 124W Switch to achieve top-tier networking benefits. From connecting multiple devices to securing a robust network environment, rely on Aruba Instant On.
Technical Specifications
- I/O Ports and Slots
- 8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports
- 2 SFP 1GbE ports
- Physical Characteristics
- Dimensions: 10(w) x 6.28(d) x 1.73(h) in (25.4 x 15.95 x 4.39 cm)
- Weight: 7.21 lb (1.16 kg)
- 1U height
- CPU
- ARM Cortex-A9 @ 800 MHz
- Memory and Flash
- 512 MB SDRAM, 256 MB flash
- Packet Buffer
- 1.5 MB
- Performance
- 100 Mb latency: < 5.2 µSec
- Packet size: 64B
|
I/O Ports and Slots |
8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
2 SFP 1GbE ports |
|
|
Physical Characteristics |
Dimensions |
10(w) x 6.28(d) x 1.73(h) in (25.4 x 15.95 x 4.39 cm) (1U height) |
|
Weight |
7.21 lb (1.16 kg) |
|
|
CPU |
ARM Cortex-A9 @ 800 MHz |
|
|
Memory And Flash |
512 MB SDRAM 256 MB flash |
|
|
Packet Buffer |
1.5 MB |
|
|
Performance |
100 Mb latency |
< 5.2 uSec |
|
Packet size |
64B |
|
|
1000 Mb latency |
<3.0 uSec |
|
|
Packet size |
64B |
|
|
10000 Mb latency |
n/a |
|
|
Packet size |
n/a |
|
|
Throughput (Mpps) |
14.88 Mpps |
|
|
Packet size |
64B |
|
|
Switching capacity |
20 Gbps |
|
|
Routing table size (# of static entries) |
32 |
|
|
MAC address table size (# of entries) |
8,000 |
|
|
Reliability MTBF (years) |
95 |
|
|
Environment |
Operating temperature |
32°F to 104°F (0°C to 40°C) |
|
Operating relative humidity |
15% to 95% @ 104°F (40°C) |
|
|
Non-operating temperature |
‑40°F to 158°F (‑40°C to 70°C) |
|
|
Non-operating relative humidity |
15% to 95% @ 140°F (60°C) |
|
|
Altitude |
Up to 10,000ft (3.048 Km) |
|
|
Acoustic |
Power: 0 dB (no fan) |
|
|
Electrical Characteristics
|
Frequency |
50-60 Hz |
|
AC voltage |
100 - 127 / 200 - 240 VAC |
|
|
Current |
0.8/1.6 A |
|
|
Maximum power rating |
150.2 W |
|
|
Idle power |
11.7 W |
|
|
PoE power |
124 W Class 4 PoE |
|
|
Power supply |
Internal power supply |
|
|
Safety |
UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014 |
|
|
Emissions |
VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A |
|
|
Immunity |
Generic |
CISPR 24 / CISPR 35 |
|
EN |
EN 55024:2010 / EN 55035:2017 |
|
|
ESD |
IEC 61000-4-2 |
|
|
Radiated |
IEC 61000-4-3 |
|
|
EFT/Burst |
IEC 61000-4-4 |
|
|
Surge |
IEC 61000-4-5 |
|
|
Conducted |
IEC 61000-4-6 |
|
|
Power frequency magnetic field |
IEC 61000-4-8 |
|
|
Voltage dips and interruptions |
IEC 61000-4-11 |
|
|
Harmonics |
IEC 61000-3-2, EN 61000-3-2 |
|
|
Flicker |
IEC 61000-3-3, EN 61000-3-3 |
|
|
Device Management |
Aruba Instant On solution; Web browser; SNMP Manager |
|
|
Accesorios |
Transceivers |
Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) Aruba 1G SFP LC LX 10km SMF XCVR (J4859D) Aruba 1G SFP RJ45 T 100m Cat5e XCVR (J8177D) |
