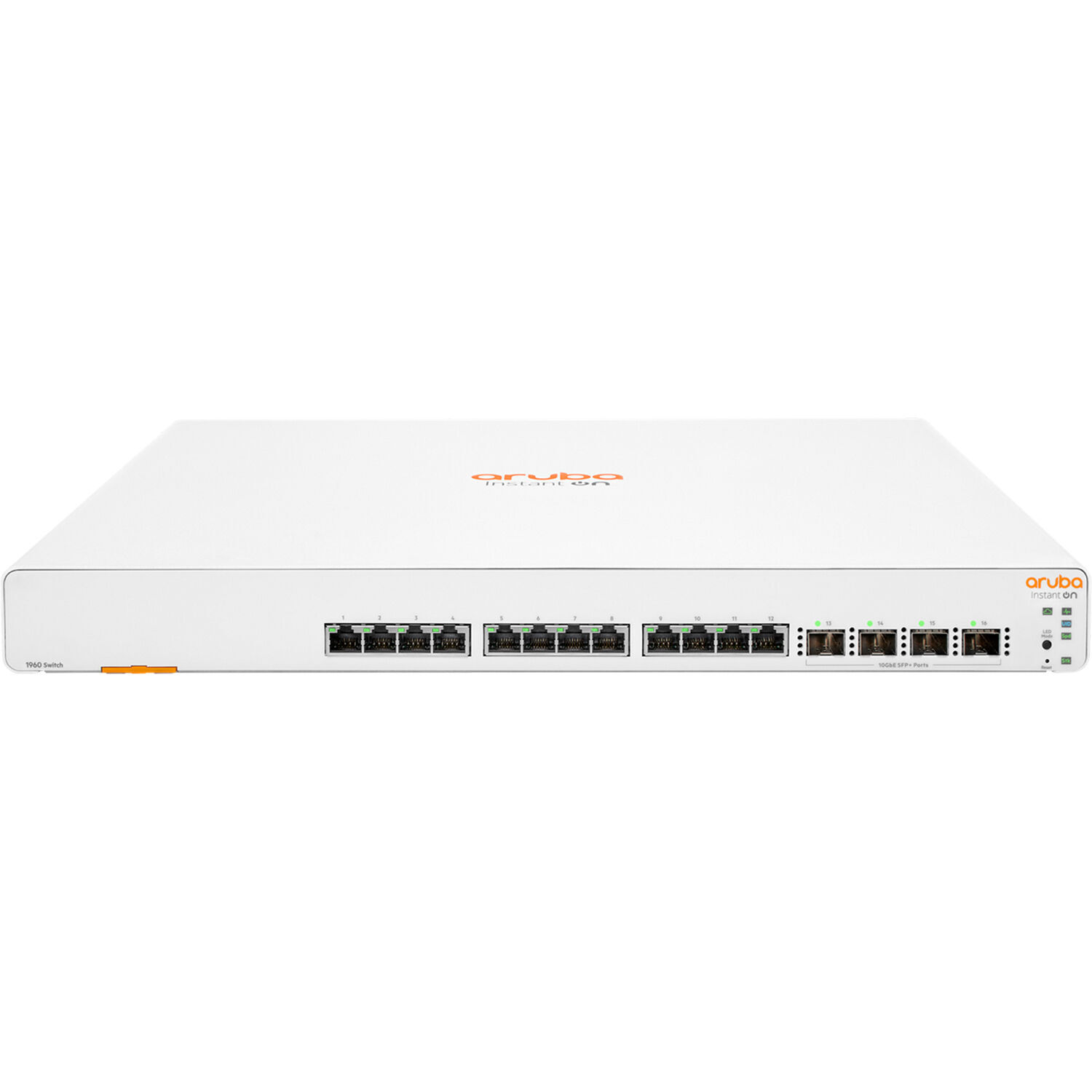

HP Aruba IOn 1960 12XGT SFP+ Switch, JL805A

Out of stock
SKU
JL805A
R 16,327.00

Quick Overview
Aruba IOn 1960 12XGT 4 SFP+ Switch Unleashing the full potential of your network infrastructure, the Aruba IOn 1960 12XGT 4 SFP+ Switch (SKU: JL805A) is designed to cater to the demands of modern enterprises. Don't let its compact size fool you; this switch is engineered for performance, efficiency, and reliability. Technical Specifications I/O Ports and Slots: 12 RJ-45 autosensing 100/1000/10GBASE-T ports 4 SFP+ 10GbE ports Dimensions: 350.5(d) x 442.5(w) x 43.95(h) mm Weight: 9.6 lb (4.3 kg) CPU: Single Core ARMv7 Cortex-A9 @2Ghz Throughput: 238 Mpps Capacity: 320 Gbps Power Supply: Internal power supply MAC Address Table Size: 16,000 entries Reliability MTBF: 88.8 years Electrical Characteristics: Frequency: 50Hz/60Hz AC Voltage: 100-127VAC / 200-240VAC Maximum Power Rating: 130W (100-127V), 160W (200-220V) Device Management: Aruba Instant On Cloud; Web browser; SNMP Manager Operating Conditions: Temperature: 0-40°C Humidity: 15% to 95% @ 104°F (40°C) non-condensing Safety and Certification: EN/IEC 60950-1, EN/IEC 62368-1 FCC CFR 47 Part 15: 2018 Class A Mounting Options: EIA-standard 19 in. telco rack Table-top, rack-mounting, wall-mounting, under-table Supported Transceivers: Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A) Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A) Power through demanding networking tasks with the Aruba IOn 1960 12XGT 4 SFP+ Switch, an investment that modern enterprises can't afford to overlook for sustained success and growth. Integrate seamlessly with your existing setup and experience exceptional operational enhancements today!.

Aruba IOn 1960 12XGT 4 SFP+ Switch

Unleashing the full potential of your network infrastructure, the Aruba IOn 1960 12XGT 4 SFP+ Switch (SKU: JL805A) is designed to cater to the demands of modern enterprises. Don't let its compact size fool you; this switch is engineered for performance, efficiency, and reliability.

Technical Specifications

  • I/O Ports and Slots:
    • 12 RJ-45 autosensing 100/1000/10GBASE-T ports
    • 4 SFP+ 10GbE ports
  • Dimensions: 350.5(d) x 442.5(w) x 43.95(h) mm
  • Weight: 9.6 lb (4.3 kg)
  • CPU: Single Core ARMv7 Cortex-A9 @2Ghz
  • Throughput: 238 Mpps
  • Capacity: 320 Gbps
  • Power Supply: Internal power supply
  • MAC Address Table Size: 16,000 entries
  • Reliability MTBF: 88.8 years
  • Electrical Characteristics:
    • Frequency: 50Hz/60Hz
    • AC Voltage: 100-127VAC / 200-240VAC
    • Maximum Power Rating: 130W (100-127V), 160W (200-220V)
  • Device Management: Aruba Instant On Cloud; Web browser; SNMP Manager
  • Operating Conditions:
    • Temperature: 0-40°C
    • Humidity: 15% to 95% @ 104°F (40°C) non-condensing
  • Safety and Certification:
    • EN/IEC 60950-1, EN/IEC 62368-1
    • FCC CFR 47 Part 15: 2018 Class A
  • Mounting Options:
    • EIA-standard 19 in. telco rack
    • Table-top, rack-mounting, wall-mounting, under-table
  • Supported Transceivers:
    • Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
    • Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)

Power through demanding networking tasks with the Aruba IOn 1960 12XGT 4 SFP+ Switch, an investment that modern enterprises can't afford to overlook for sustained success and growth. Integrate seamlessly with your existing setup and experience exceptional operational enhancements today!

More Information
SKUJL805A
Apply Add To QuoteNo
ManufacturerAruba

I/O ports and slots

12 RJ-45 autosensing 100/1000/10GBASE-T ports

(IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.an 10GBASE-T); Duplex: 100BASE-TX: half or full; 1000BASE-T: full only 10GBASE-T: full only

4 SFP+ 10GbE ports

Dimensions

350.5(d) x 442.5(w) x 43.95(h) mm

Weight

9.6 lb (4.3 kg)

CPU

Single Core ARMv7 Cortex-A9 @2Ghz

100 Mb Latency

< 7.4 uSec

1000 Mb Latency

< 4.2 uSec

10000 Mb Latency

< 1.1 uSec

Throughput (Mpps)

238 Mpps

Capacity

320 Gbps

Routing Table size
(# of static entries)

512 IPv4/IPv6

MAC Address table size
 (# of entries)

16,000 entries

Reliability MTBF (years)

88.8

Operating temperature

0-40°C, 0-10,000 ft

Operating relative humidity

15% to 95% @ 104°F (40°C) non-condensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C) up to 15000 ft

Nonoperating/Storage relative humidity

15% to 90% @ 149°F (65°C) non-condensing

Altitude

up to 10,000 ft (3 km)

Idle

4.1

100% Traffic

4.1

100% Traffic / 0% PoE

-

100% Traffic / 50% PoE

-

100% Traffic / 100% PoE

-

Electrical Characteristics

Frequency

50Hz/60Hz

AC voltage

100-127VAC / 200-240VAC

Current

1.3A/0.4A

Maximum power rating

100-127V: 130W 200-220V: 160W

Idle power

100-127V: 60W 200-220V: 80W

PoE power

-

Power Supply

Internal power supply

Safety

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

Emissions

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

Generic

EN 55035, CISPR 35, KN35

EN

EN 55035, CISPR 35

ESD

EN/IEC 61000-4-2

Radiated

EN/IEC 61000-4-3

EFT/Burst

EN/IEC 61000-4-4

Surge

EN/IEC 61000-4-5

Conducted

EN/IEC 61000-4-6

Power frequency magnetic field

EN/IEC 61000-4-8

Voltage dips and interruptions

EN/IEC 61000-4-11

Harmonics

EN/IEC 61000-3-2

Flicker

EN /IEC 61000-3-3

Device Management

Aruba Instant On Cloud; Web browser; SNMP Manager

Mounting Positions and Supported Racking

  • Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included
  • Supports table-top mounting
  • Supports rack-mounting
  • Supports wall-mounting with ports facing either up or down
  • Supports under-table mounting using the brackets provided

Transceivers

  • Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
  • Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
  • Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)
  • Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)
  • Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)
  • Aruba 10G SFP+ to SFP+ 1m DAC (J9281D)
  • Aruba 10G SFP+ to SFP+ 3m DAC (J9283D)
