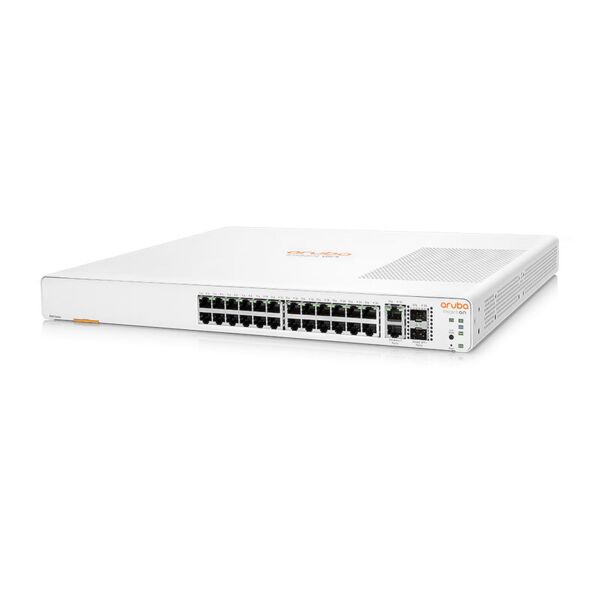

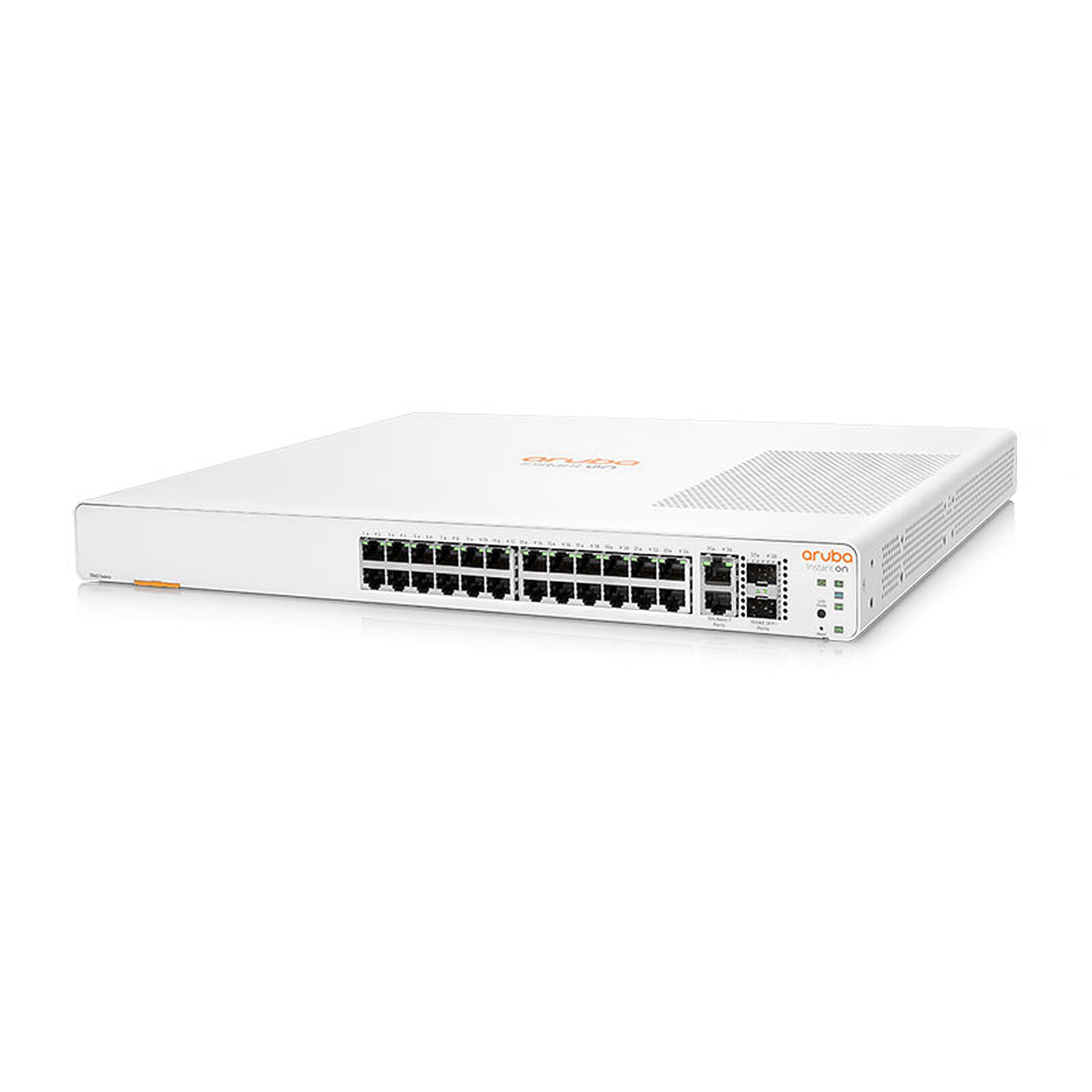

Aruba IOn 1960 24G 2XGT 2 SFP+ Switch | JL806A

I/O ports and slots

24 RJ-45 autosensing 10/100/1000 Mbps ports

(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 SFP+ 10GbE ports 2 10GBASE-T ports

Dimensions

350.5(d) x 442.5(w) x 43.95(h) mm

Weight

8.7 lb (3.9 kg)

CPU

Single-Core ARM v7 Cortex-A9 @800MHz

100 Mb Latency

< 4.4 uSec

1000 Mb Latency

< 2.2 uSec

10000 Mb Latency

< 1.1 uSec

Throughput (Mpps)

95 Mpps

Capacity

128 Gbps

Routing Table size
(# of static entries)

32 IPv4/IPv6

MAC Address table size
(# of entries)

16,000 entries

Reliability MTBF (years)

123.0

Operating temperature

0-40°C, 0-10,000 ft

Operating relative humidity

15% to 95% @ 104°F (40°C) non-condensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C) up to 15000 ft

Nonoperating/Storage relative humidity

15% to 90% @ 149°F (65°C) non-condensing

Altitude

up to 10,000 ft (3 km)

Idle

2.7

100% Traffic

2.7

100% Traffic / 0% PoE

-

100% Traffic / 50% PoE

-

100% Traffic / 100% PoE

-

Electrical Characteristics

Frequency

50Hz/60Hz

AC voltage

100-127VAC / 200-240VAC

Current

0.6A/0.2A

Maximum power rating

100-127V: 60W 200-220V: 80W

Idle power

100-127V: 30W 200-220V: 40W

PoE power

-

Power Supply

Internal power supply

Safety

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 2

Emissions

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

Generic

EN 55035, CISPR 35, KN35

EN

EN 55035, CISPR 35

ESD

EN/IEC 61000-4-2

Radiated

EN/IEC 61000-4-3

EFT/Burst

EN/IEC 61000-4-4

Surge

EN/IEC 61000-4-5

Conducted

EN/IEC 61000-4-6

Power frequency magnetic field

EN/IEC 61000-4-8

Voltage dips and interruptions

EN/IEC 61000-4-11

Harmonics

EN/IEC 61000-3-2

Flicker

EN /IEC 61000-3-3

Device Management

Aruba Instant On Cloud; Web browser; SNMP Manager

Mounting Positions and Supported Racking

• Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included
• Supports table-top mounting
• Supports rack-mounting
• Supports wall-mounting with ports facing either up or down
• Supports under-table mounting using the brackets provided
• Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down

Transceivers

• Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
• Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
• Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)
• Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)
• Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)
• Aruba 10G SFP+ to SFP+ 1m DAC (J9281D)
• Aruba 10G SFP+ to SFP+ 3m DAC (J9283D)
