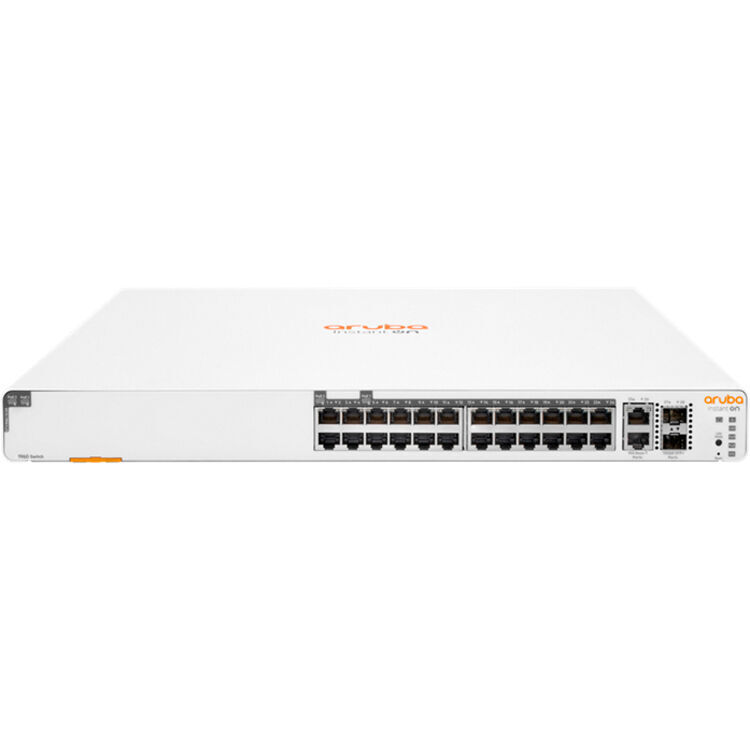

HP Aruba IOn 1960 PoE+ Switch, 24G (370 W)Unmatched Network Performance JL807A

Out of stock
SKU
JL807A
R 15,768.00

Quick Overview
Aruba IOn 1960 24G CL4 POE+ 2XGT 2 SFP+ 370W Switch - SKU: JL807A Introducing the Aruba IOn 1960 24G CL4 POE+ 2XGT 2 SFP+ 370W Switch, your ultimate solution for high-performance network connectivity. Specially crafted for small to medium-sized businesses, this switch offers a remarkable balance of power, flexibility, and efficiency. Overview With its advanced features and innovative technology, the Aruba IOn 1960 Switch leverages robust connectivity for enhanced productivity. Gear up with 24 gigabit Ethernet ports, including 20 PoE+ ports, for seamless integration across varied network devices. Enjoy rapid data transfer speeds designed for demanding applications and multimedia streaming, all supported by a reliable 370W power supply. Delve into superior connectivity performance that redefines efficiency and functionality. Seamless Flexibility Strategic design meets modern flexibility with this switch, featuring: 24 RJ-45 autosensing 10/100/1000 Mbps ports 2 SFP+ 10GbE ports 2 10GBASE-T ports Transformational capabilities help manage large files effortlessly, maintaining consistent network operations. Dimensions & Weight Size: 350.5 (d) x 442.5 (w) x 43.95 (h) mm Weight: 10.4 lb (4.7 kg) Performance and Reliability Single-Core ARM v7 Cortex-A9 @800MHz 95 Mpps throughput 128 Gbps capacity Latency: Environmental Specifications Operating Temp: 0-40°C Storage Temp: -40°F to 158°F (-40°C to 70°C) Relative Humidity: 15% to 95% Electrical Characteristics Frequency: 50Hz/60Hz AC Voltage: 100-127VAC / 200-240VAC Maximum power rating: 500W Safety & Compliance Safety Standards: EN/IEC 60950-1, 62368-1 Emissions: EN 55032:2015/CISPR 32, Class A Device Management: Aruba Instant On Cloud; Web browser; SNMP Manager Installation Flexibility Installation is a breeze with support for versatile mounting positions: 19-inch rack or equipment cabinet Table-top, rack-mounting, and wall-mounting Under-table mounts with provided brackets Transceivers Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver Aruba 1G SFP RJ45 T 100m Cat5e Transceiver Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver Choose the Aruba IOn 1960 Switch for unmatched network performance, ensuring an efficient and productive business environment. Invest in best-in-class technology and redefine how connectivity powers your success.

Aruba IOn 1960 24G CL4 POE+ 2XGT 2 SFP+ 370W Switch - SKU: JL807A

Introducing the Aruba IOn 1960 24G CL4 POE+ 2XGT 2 SFP+ 370W Switch, your ultimate solution for high-performance network connectivity. Specially crafted for small to medium-sized businesses, this switch offers a remarkable balance of power, flexibility, and efficiency.

Overview

With its advanced features and innovative technology, the Aruba IOn 1960 Switch leverages robust connectivity for enhanced productivity. Gear up with 24 gigabit Ethernet ports, including 20 PoE+ ports, for seamless integration across varied network devices.

Enjoy rapid data transfer speeds designed for demanding applications and multimedia streaming, all supported by a reliable 370W power supply. Delve into superior connectivity performance that redefines efficiency and functionality.

Seamless Flexibility

Strategic design meets modern flexibility with this switch, featuring:

  • 24 RJ-45 autosensing 10/100/1000 Mbps ports
  • 2 SFP+ 10GbE ports
  • 2 10GBASE-T ports

Transformational capabilities help manage large files effortlessly, maintaining consistent network operations.

Dimensions & Weight

  • Size: 350.5 (d) x 442.5 (w) x 43.95 (h) mm
  • Weight: 10.4 lb (4.7 kg)

Performance and Reliability

  • Single-Core ARM v7 Cortex-A9 @800MHz
  • 95 Mpps throughput
  • 128 Gbps capacity
  • Latency: < 4.4 uSec (100 Mb), < 2.2 uSec (1000 Mb), < 1.1 uSec (10000 Mb)

Environmental Specifications

  • Operating Temp: 0-40°C
  • Storage Temp: -40°F to 158°F (-40°C to 70°C)
  • Relative Humidity: 15% to 95%

Electrical Characteristics

  • Frequency: 50Hz/60Hz
  • AC Voltage: 100-127VAC / 200-240VAC
  • Maximum power rating: 500W

Safety & Compliance

  • Safety Standards: EN/IEC 60950-1, 62368-1
  • Emissions: EN 55032:2015/CISPR 32, Class A
  • Device Management: Aruba Instant On Cloud; Web browser; SNMP Manager

Installation Flexibility

Installation is a breeze with support for versatile mounting positions:

  • 19-inch rack or equipment cabinet
  • Table-top, rack-mounting, and wall-mounting
  • Under-table mounts with provided brackets

Transceivers

  • Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver
  • Aruba 1G SFP RJ45 T 100m Cat5e Transceiver
  • Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver

Choose the Aruba IOn 1960 Switch for unmatched network performance, ensuring an efficient and productive business environment. Invest in best-in-class technology and redefine how connectivity powers your success.

More Information
SKUJL807A
ManufacturerAruba

I/O ports and slots

24 RJ-45 autosensing 10/100/1000 Mbps ports including 4 CL4 and 20 CL6 PoE ports

IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at Class 4, IEEE 802.3bt Class 6); Duplex: 10BASE-T/100BASE TX: half or full; 1000BASE-T: full only

2 SFP+ 10GbE ports 2 10GBASE-T ports

Dimensions

350.5(d) x 442.5(w) x 43.95(h) mm

Weight

10.4 lb (4.7 kg)

CPU

Single-Core ARM v7 Cortex-A9 @800MHz

100 Mb Latency

< 4.4 uSec

1000 Mb Latency

< 2.2 uSec

10000 Mb Latency

< 1.1 uSec

Throughput (Mpps)

95 Mpps

Capacity

128 Gbps

Routing Table size (# of static entries)

32 IPv4/IPv6

MAC Address table size (# of entries)

16,000 entries

Reliability MTBF (years)

65.3

Operating temperature

0-40°C, 0-10,000 ft

Operating relative humidity

15% to 95% @ 104°F (40°C) non-condensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C) up to 15000 ft

Nonoperating/Storage relative humidity

15% to 90% @ 149°F (65°C) non-condensing

Altitude

up to 10,000 ft (3 km)

Idle

3.5

100% Traffic

-

100% Traffic / 0% PoE

3.5

100% Traffic / 50% PoE

3.6

100% Traffic / 100% PoE

5.8

Electrical Characteristics

Frequency

50Hz/60Hz

AC voltage

100-127VAC / 200-240VAC

Current

5.0A/0.4A

Maximum power rating

100-127V: 500W 200-220V: 480W

Idle power

100-127V: 40W 200-220V: 80W

PoE power

Total 370 W PoE Power (Up to 240 W of Class 6 or 370 W of Class 4 PoE)

Power Supply

Internal power supply

Safety

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 3

Emissions

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

Generic

EN 55035, CISPR 35, KN35

EN

EN 55035, CISPR 35

ESD

EN/IEC 61000-4-2

Radiated

EN/IEC 61000-4-3

EFT/Burst

EN/IEC 61000-4-4

Surge

EN/IEC 61000-4-5

Conducted

EN/IEC 61000-4-6

Power frequency magnetic field

EN/IEC 61000-4-8

Voltage dips and interruptions

EN/IEC 61000-4-11

Harmonics

EN/IEC 61000-3-2

Flicker

EN /IEC 61000-3-3

Device Management

Aruba Instant On Cloud; Web browser; SNMP Manager

Mounting Positions and Supported Racking

  • Mounts in an EIA-standard 19 in. telco rack or equipment cabinet. 2-post rack kit included
  • Supports table-top mounting
  • Supports rack-mounting
  • Supports wall-mounting with ports facing either up or down
  • Supports under-table mounting using the brackets provided

Transceivers

  • Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
  • Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
  • Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)
  • Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)
  • Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)
  • Aruba 10G SFP+ to SFP+ 1m DAC (J9281D)
  • Aruba 10G SFP+ to SFP+ 3m DAC (J9283D)
