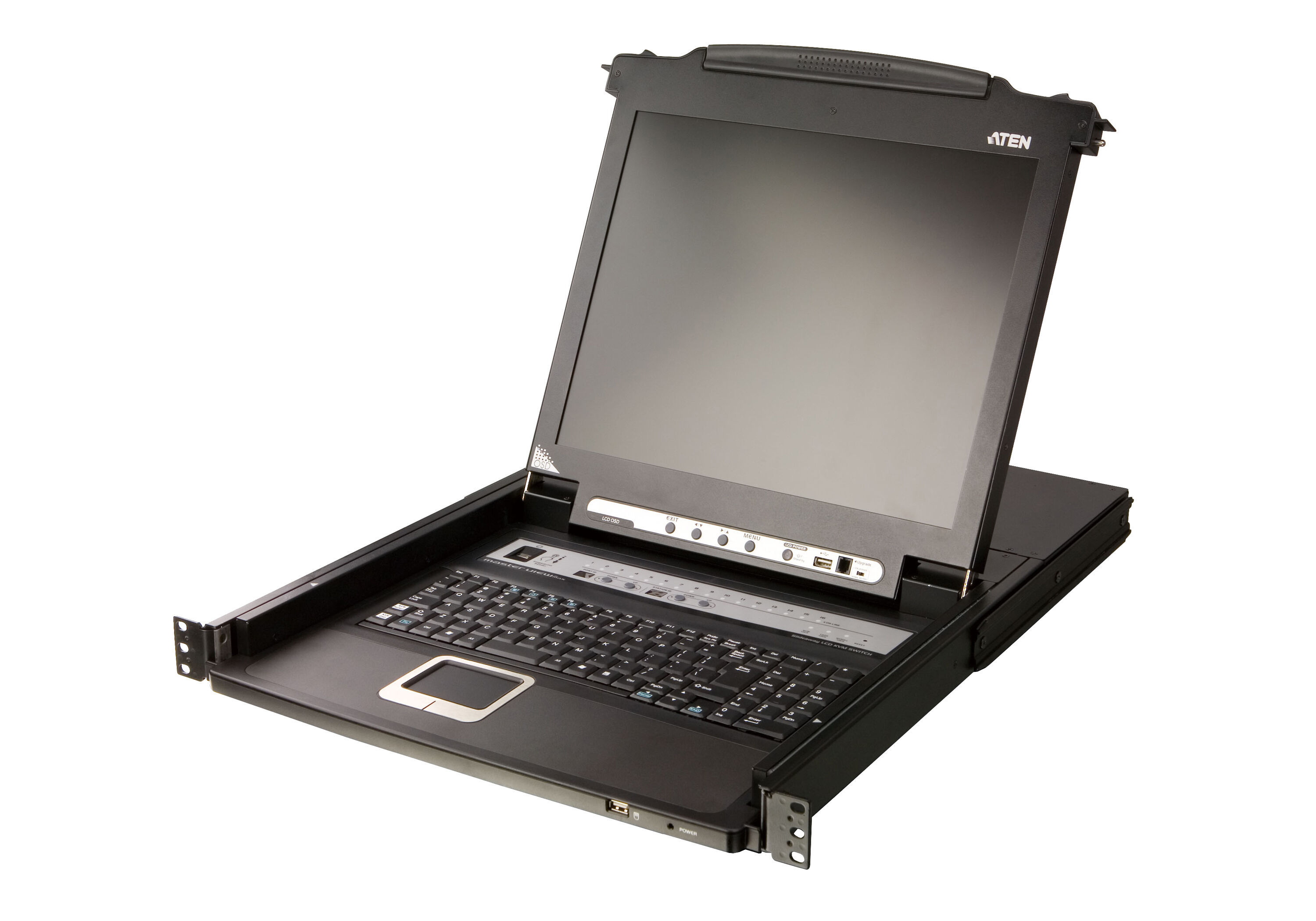

Integrated 19-inch LED-backlit LCD rackmount console

Space-saving Slideaway design that retracts into a 1U rack space

Direct control of up to 16 servers from a single console

Expandable to manage up to 512 servers via daisy-chaining

Supports both USB and PS/2 keyboard and mouse interfaces

Integrated keyboard and touchpad for centralized server control

LED illumination light improves visibility in low-light server environments

Hot-pluggable design allows servers to be added or removed without powering down

Auto-scan function allows monitoring of multiple servers

Broadcast mode allows commands to be sent to multiple servers simultaneously

Supports Windows, Linux, Mac, and Sun systems

LCD module rotates up to 120 degrees for improved viewing angle

No software required – system switching via pushbuttons, hotkeys, or on-screen display

Two-level password security with administrator and user accounts

Firmware upgrades can be applied to all connected KVM switches via daisy chain

Important Notes (Customers Must Know Before Purchase)

KVM cable sets are required to connect servers and are typically sold separately.

The CL5716N uses ATEN SPHD KVM ports which require compatible ATEN KVM cables such as the 2L-520x or 2L-530x series.

This device uses VGA video connections. Servers with HDMI or DisplayPort outputs may require adapters.

Up to 31 additional compatible ATEN KVM switches can be daisy-chained to expand the system to 512 servers.

This is a local rackmount KVM console designed for direct access in the server rack and does not provide remote IP-based KVM access.

Ensure sufficient rack depth is available to support the slideaway console installation.

Optional rack mount kits may be required depending on the rack configuration.
