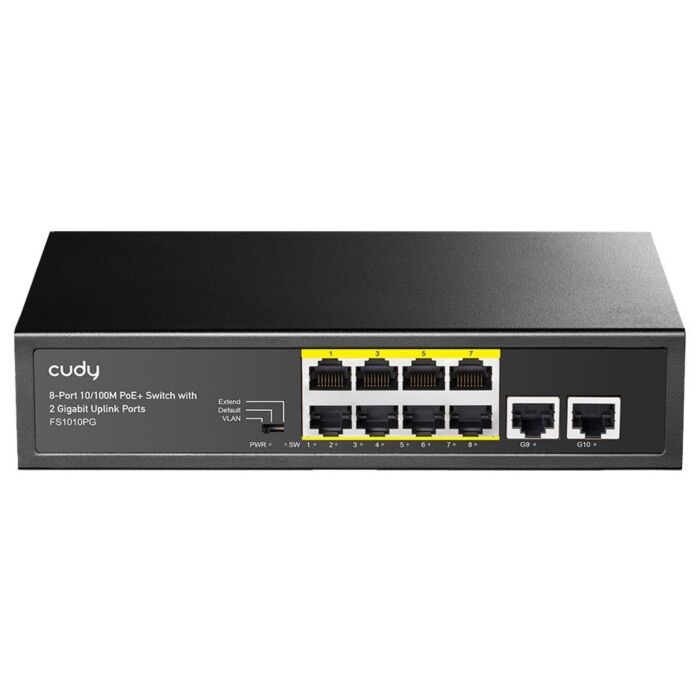

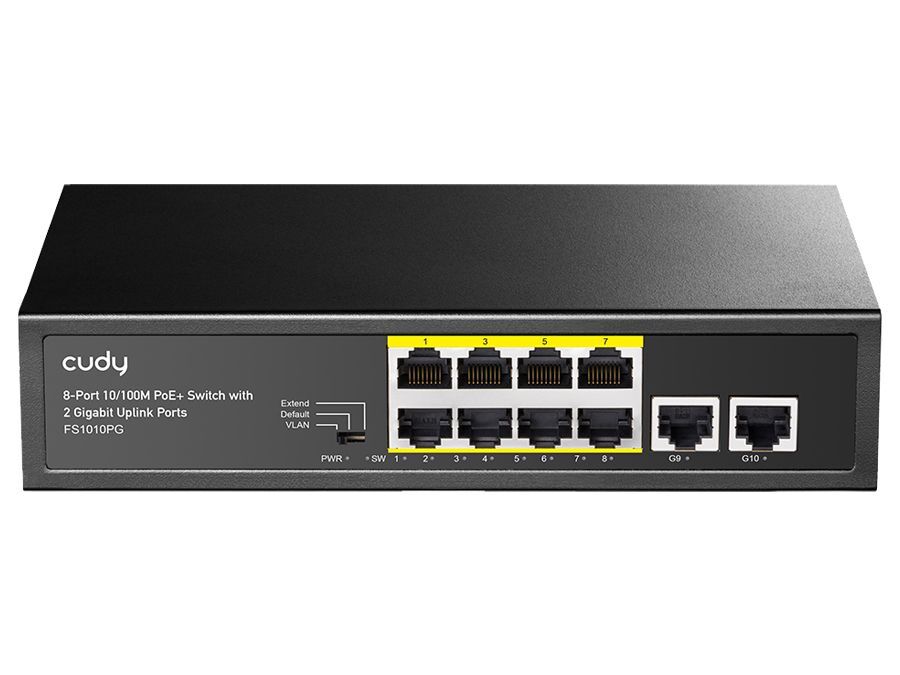

Cudy 10 Port with 8 Port PoE 115W 2 Gigabit Uplink Switch FS1010P
Cudy's CD-FS1010PG is an 8 Port Fast Ethernet switch with 8x 802.3af/at PoE ports and 2x Gigabit Uplink ports. The switch offers a 115W PoE budget, up to 32W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-8 while Extender mode increases the transmission distance on ports 1-8 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections. If an error is detected on the device, the switch immediately restarts the port.
Ethernet Ports: 8x 10/100 ; 2x 10/100/1000
Hardware Button: VLAN ; Extender ; Default
Max. Power Consumption: 5W
Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~8
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100-240V
| Estimated Shipping Weight | 1.000000 |
|---|---|
| Estimated Shipping Length | 28 |
| Estimated Shipping Width | 20 |
| Estimated Shipping Height | 10 |
