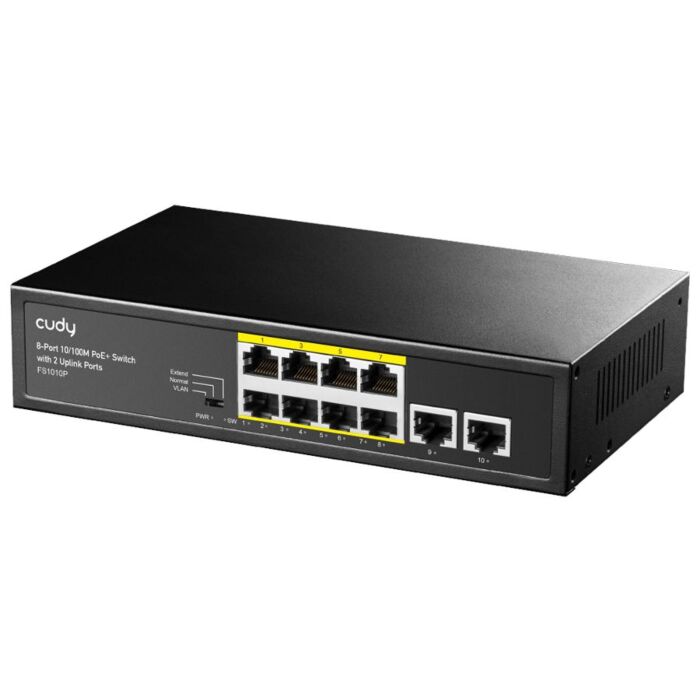

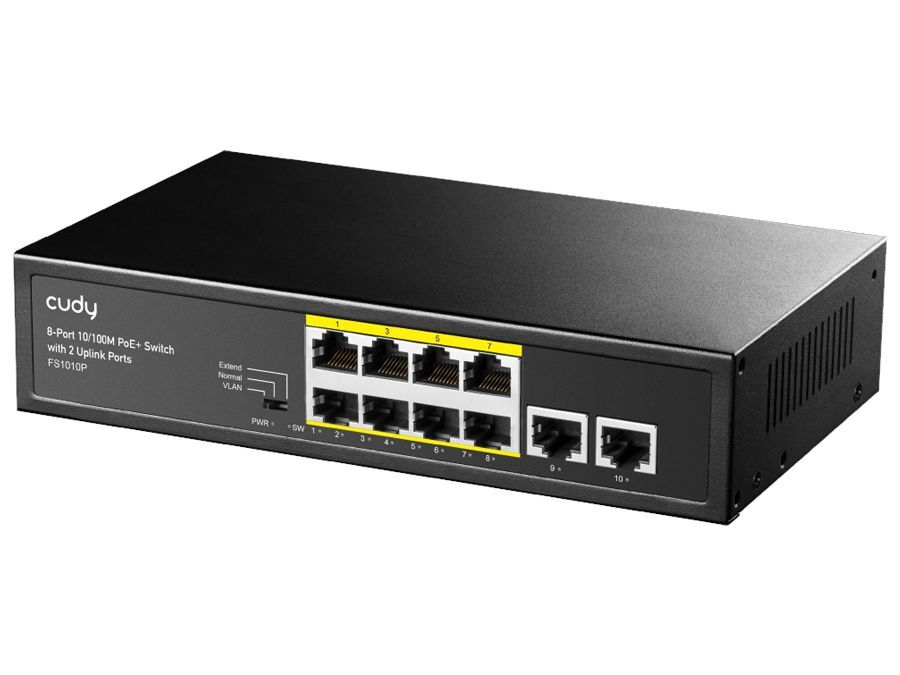

Cudy 10 Port with 8 Port PoE 115W Switch | CD-FS1010P
Cudy's CD-FS1010P is a 10 Port Fast Ethernet switch with 8x 802.3af/at PoE ports and 2x Fast Ethernet Uplink ports. The switch offers a 115W PoE budget, up to 32W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-8 while Extender mode increases the transmission distance on ports 1-8 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections. If an error is detected on the device, the switch immediately restarts the port.
Ethernet Ports: 10x 10/100
Hardware Button: VLAN ; Extender ; Default
Max. Power Consumption: 5W
Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~8
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: None
Supported Voltage Range: 100-240V
| Estimated Shipping Weight | 1.000000 |
|---|---|
| Estimated Shipping Length | 25 |
| Estimated Shipping Width | 15 |
| Estimated Shipping Height | 10 |
| New | New |
