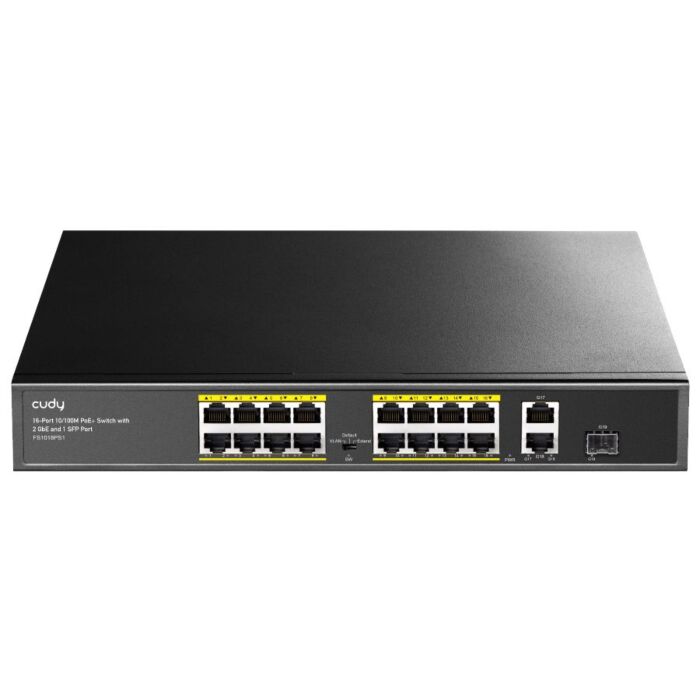

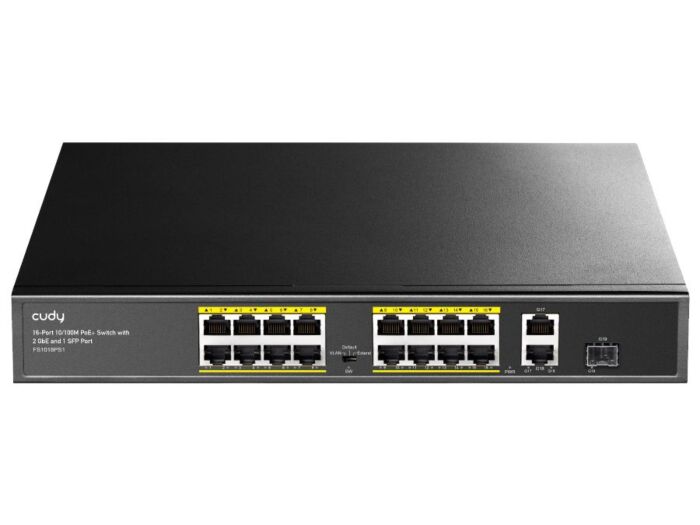

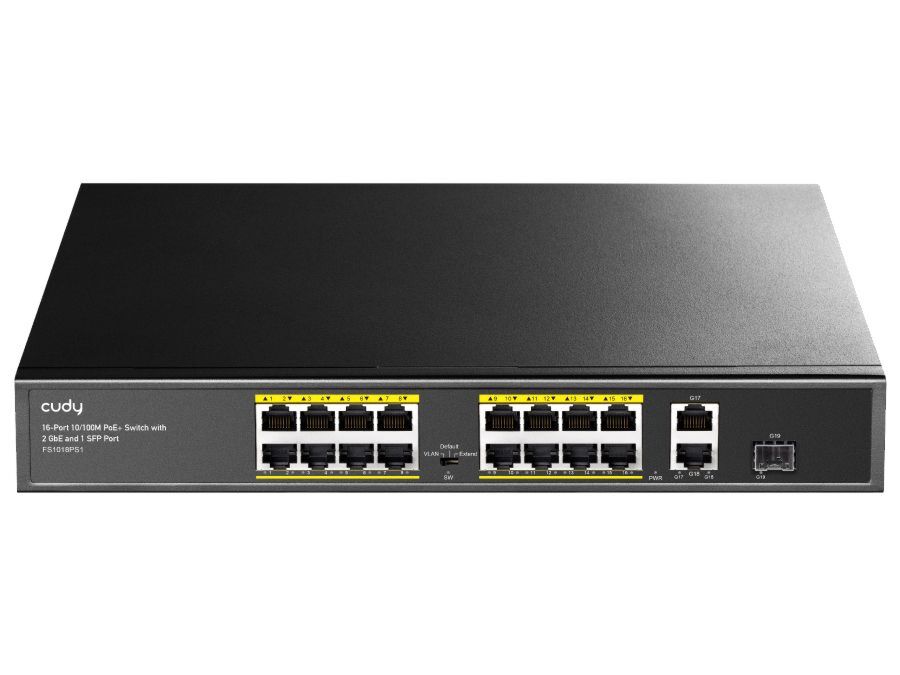

Cudy 18 Port with 16 PoE 190W 2 Gigabit 1SFP Combo Switch | CD-FS1018PS
Cudy's CD-FS1018PS is a 16 Port Fast Ethernet switch with 16x 802.3af/at PoE ports and 2x Gigabit, 1x SFP Combo Uplink ports. The switch offers a 190W PoE budget, up to 30W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-16 while Extender mode increases the transmission distance on ports 1-16 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections. If an error is detected on the device, the switch immediately restarts the port.
Ethernet Ports: 16x 10/100 ; 2x 10/100/1000
Hardware Button: VLAN ; Extender ; Default
Max. Power Consumption: 10W
Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: 0°C to 40°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~16
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 100-240V
| Estimated Shipping Weight | 2.500000 |
|---|---|
| Estimated Shipping Length | 35 |
| Estimated Shipping Width | 28 |
| Estimated Shipping Height | 12 |
| New | New |
