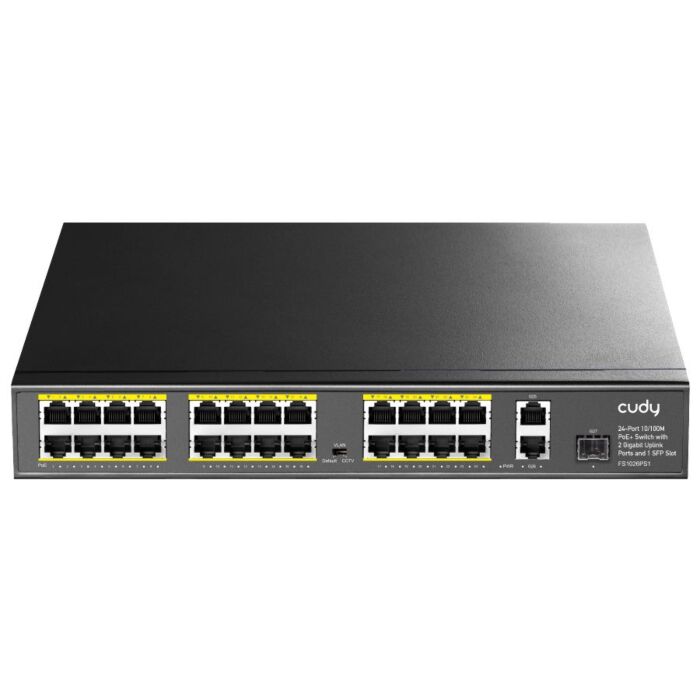

Cudy 26 Ports, with 24 PoE (290 W)2 Gigabit 1 x SFP Slots Combo Switch FS1026P
Quick Overview
Cudy's CD-FS1026PS is a 26 Port Fast Ethernet switch with 24x 802.3af/at PoE ports and 2x Gigabit, 1x SFP Combo Uplink ports. The switch offers a 290W PoE budget, up to 30W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-24 while Extender mode increases the transmission distance on ports 1-24 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections. If an error is detected on the device, the switch immediately restarts the port..
Details
Cudy's CD-FS1026PS is a 26 Port Fast Ethernet switch with 24x 802.3af/at PoE ports and 2x Gigabit, 1x SFP Combo Uplink ports. The switch offers a 290W PoE budget, up to 30W per PoE port with a VLAN and Extender toggle switch. VLAN mode enables port isolation on ports 1-24 while Extender mode increases the transmission distance on ports 1-24 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections. If an error is detected on the device, the switch immediately restarts the port.
More Information
| SKU | CD-FS1026PS |
|---|---|
| Manufacturer | Cudy |
Technical Details
Ethernet Ports: 24x 10/100 ; 2x 10/100/1000
Hardware Button: VLAN ; Extender ; Default
Max. Power Consumption: 10W
Mounting: Desktop or Wall-Mount
Operating System: None
Operating Temperature: -20°C to 50°C
PoE Input: None
PoE Output: 802.3af/at PoE on Ports 1~24
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 1x 1.25Gbps
Supported Voltage Range: 100-240V
