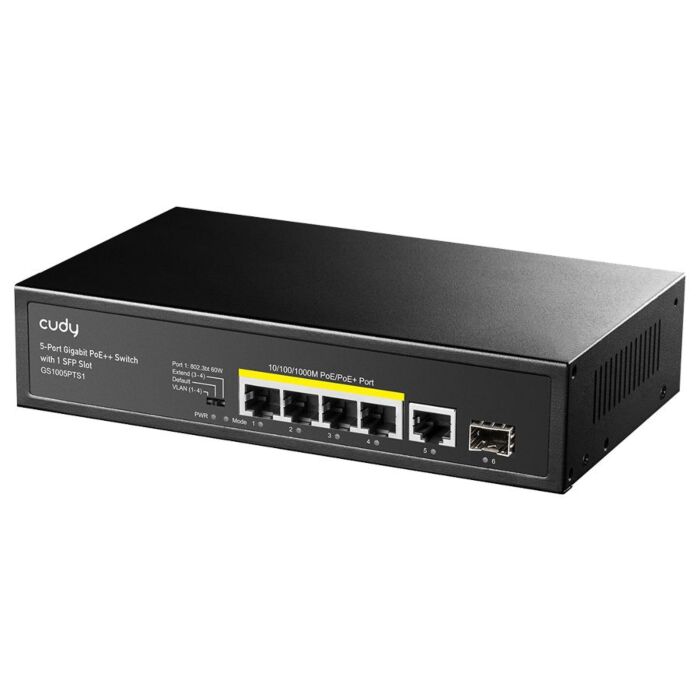

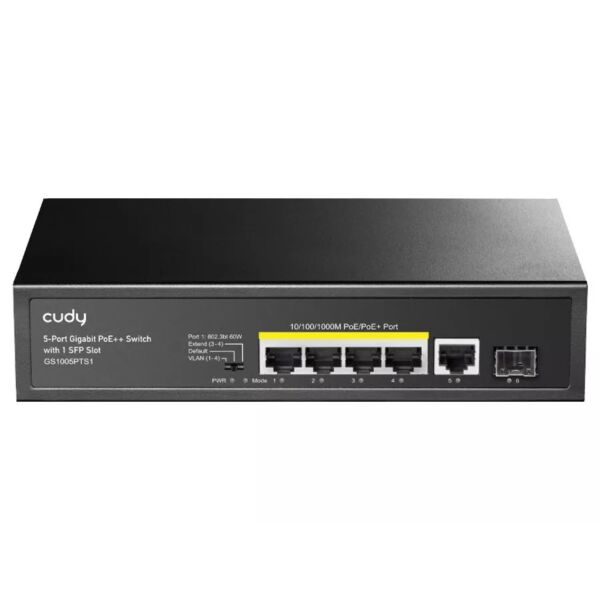

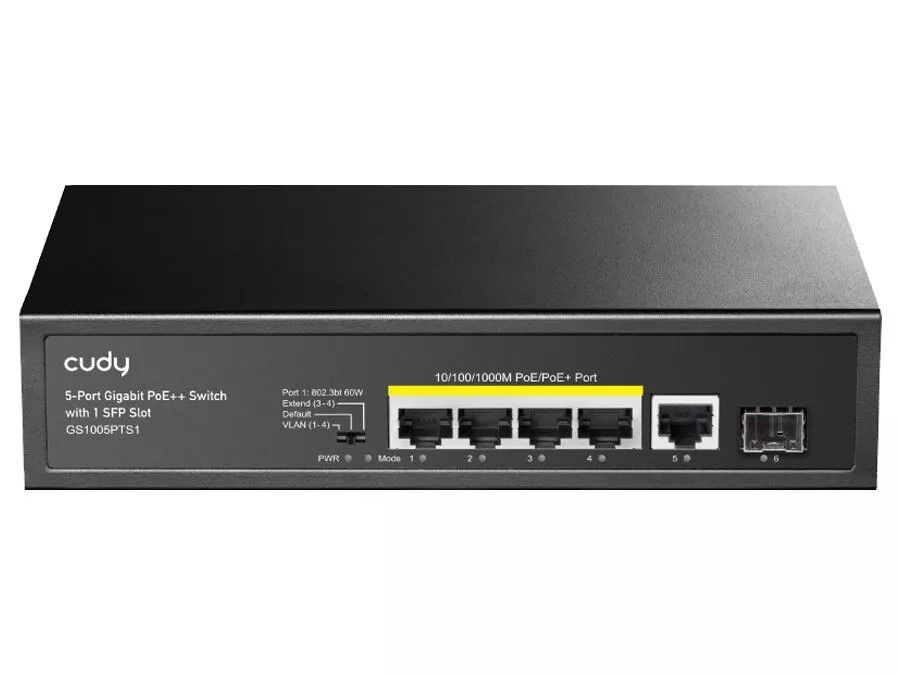

Cudy's CD-GS1005PT is a 5 Port Gigabit switch with 4x 802.3af/at PoE ports, 1x SFP and 1x Fast Gigabit Uplink ports. The switch offers a 115W PoE budget with up to 60W (802.3bt) on port 1 and 30W on ports 2~4. Both VLAN and Extender modes are supported with the integrated toggle switch. VLAN mode enables port isolation on ports 1-4 while Extender mode increases the transmission distance on ports 1-4 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections. If an error is detected on the device, the switch immediately restarts the port..
Details
Cudy's CD-GS1005PT is a 5 Port Gigabit switch with 4x 802.3af/at PoE ports, 1x SFP and 1x Fast Gigabit Uplink ports. The switch offers a 115W PoE budget with up to 60W (802.3bt) on port 1 and 30W on ports 2~4. Both VLAN and Extender modes are supported with the integrated toggle switch. VLAN mode enables port isolation on ports 1-4 while Extender mode increases the transmission distance on ports 1-4 to 250m at 10Mbps. The watchdog function continuously monitors PoE connections. If an error is detected on the device, the switch immediately restarts the port.
More Information
More Information
SKU
CD-GS1005PT
Manufacturer
Cudy
Technical Details
Ethernet Ports: 5x 10/100/1000 Hardware Button: VLAN ; Extender ; Default Max. Power Consumption: 5W Mounting: Desktop or Wall-Mount Operating System: None Operating Temperature: -20°C to 50°C PoE Input: None PoE Output: 802.3af/at PoE on Ports 1~4 Power Input: 1x IEC Power Cord (Included) Serial Interface: None SFP Ports: 1x 1.25Gbps Supported Voltage Range: 100-240V
