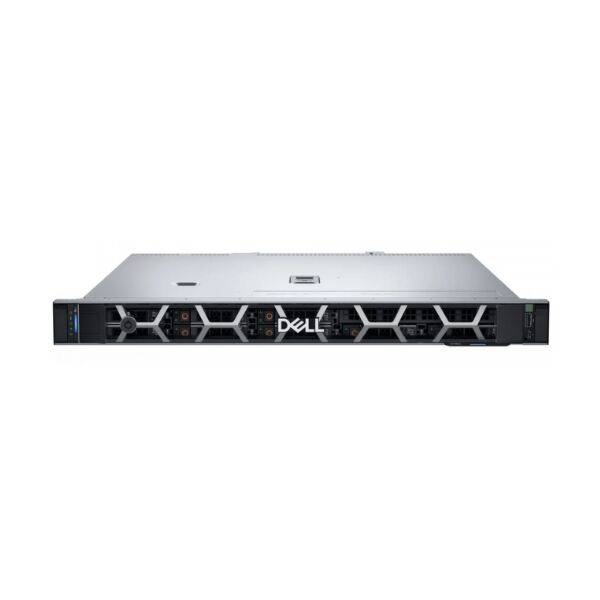

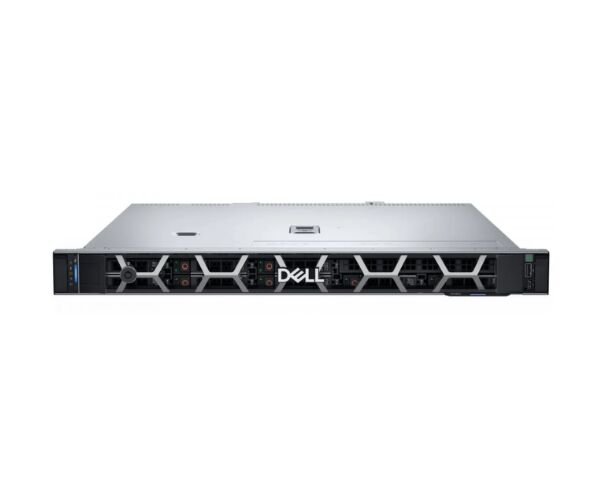

Dell PowerEdge R360 Barebone Server, Xeon E-2434, No RAM, No HDD, PERC H355, iDRAC9, 700W PSU
Important: Not Ready to Run
To be work-ready and ready to install, this product still requires the following components: Memory, Hard Drives.
If these items are not installed, we cannot guarantee a fully workable solution on delivery.
Recommended next steps:
- Memory-ready: Add matched DIMMs following channel population rules. We can validate POST, run memory tests, and baseline BIOS.
- Storage-ready: Add enterprise SSD/HDD with the correct caddies and a supported RAID/HBA.
The Dell PowerEdge R360 barebone 1U rack server provides a flexible foundation for custom memory and storage configurations. It ships with the core compute and management components installed—letting you tailor RAM, drives and operating system to your exact needs.
Key Features
Processor & Cooling: Intel Xeon E-2434 (4 cores/8 threads, 3.4 GHz Turbo, 12 MB cache, 55 W) with performance-optimized heatsink
Security & Boot: TPM 2.0 v3 module; UEFI BIOS with GPT partition support; power-saving BIOS profile
Chassis & Expansion: 2.5″ chassis supporting up to eight hot-plug HDD/SSD bays (no drives included); ReadyRails™ sliding-rail kit; no riser installed
Storage Controller: Dell PERC H355 front-mount RAID controller (RAID 0/1/5/10)
Remote Management: iDRAC9 Basic with 16 GB module; Broadcom 5720 dual-port 1 Gb LOM
Power & Cabling: Single non-redundant 700 W Titanium-efficiency PSU (200–240 Vac); 2 m C13–C14 power cord; no BOSS card, no OS, no media
Warranty & Compliance: Basic Next Business Day support (12 or 36 months); CE/CCC marking; regional shipping kit (EMEA1)
Overview
This barebone R360 is ideal for system integrators or in-house IT teams who need a standard 1U server platform but want to choose memory, drives and OS themselves. With robust RAID, secure TPM and built-in iDRAC remote management, it delivers Dell-quality reliability without forcing you into a fixed configuration.
Base Configuration Details of emea_per360spl2#M1C
| Form Factor | |
|---|---|
| Form Factor | Rackmount |
| CPU Details | |
| CPU | Intel Xeon E-2434 3.4G, 4C/8T, 12M Cache, Turbo, HT (55W) DDR5 |
| CPU - Max Qty | 1 |
| Installed CPU Cores | 4 |
| Memory Details | |
| Memory Installed | None |
| Memory Slots - Max Qty | 4 |
| Hard Drive Details | |
| Hard Drives Installed | None |
| Hard Drive Bays - Max Qty | 8 |
| Backplane | 2.5″ chassis supporting up to eight hot-plug drives |
| Power Supply Details | |
| Power Supply | Single, Hot-Plug, Power Supply, 700W MM HLAC Titanium, Non Redundant (1+0) |
| Power Supplies - Max Qty | 2 |
| Other Specifications | |
| Optical Drive Pre-Installed | Not Supplied |
| Raid Controller | Dell PERC H355 front-mount RAID controller (RAID 0/1/5/10) |
| Network | On-Board Broadcom 5720 Dual Port 1Gb LOM |
| Management | iDRAC9, Basic 16G |
| Warranty and Extras | |
| Warranty | 3 Year Basic / Next Business Day |
| Included with this Server | ReadyRails Sliding Rails Without Cable Management Arm |
PowerEdge R360 Server
Trusted Platform Module 2.0 V3
2.5" Chassis with up to 8 Hot Plug Hard Drives, Front PERC
Intel Xeon E-2434 3.4G, 4C/8T, 12M Cache, Turbo, HT (55W) DDR5
Heatsink
Performance Optimized
4800MT/s UDIMMs
No Memory
PERC H355 Controller Front
No HDD
Power Saving BIOS Setting
UEFI BIOS Boot Mode with GPT Partition
Single, Hot-Plug, Power Supply Non-Redundant (1+0), 700W MM HLAC (ONLY FOR 200-240Vac) Titanium
Rack Power Cord 2M (C13/C14 10A)
Riser Config 0, No Riser
PowerEdge R360 Motherboard with with Broadcom 5720 Dual Port 1Gb On-Board LOM
iDRAC9, Basic 16G
PowerEdge 1U Standard Bezel
No BOSS Card
iDRAC,Legacy Password
iDRAC Group Manager, Disabled
No Operating System
No Media Required
ReadyRails Sliding Rails Without Cable Management Arm
No Internal Optical Drive for 2/4 HD Chassis
No Systems Documentation, No OpenManage DVD Kit
PowerEdge R360 Shipping EMEA1 (English/French/German/Spanish/Russian/Hebrew)
PowerEdge R350/R360 Shipping Material for 2.5" Chassis
PowerEdge R360 CE and CCC Marking
Basic Next Business Day 12 Months, 12 Month(s)
Basic Next Business Day, 36 Month(s)
| Estimated Shipping Weight | 16.000000 |
|---|---|
| Estimated Shipping Length | 92 |
| Estimated Shipping Width | 60 |
| Estimated Shipping Height | 24 |
