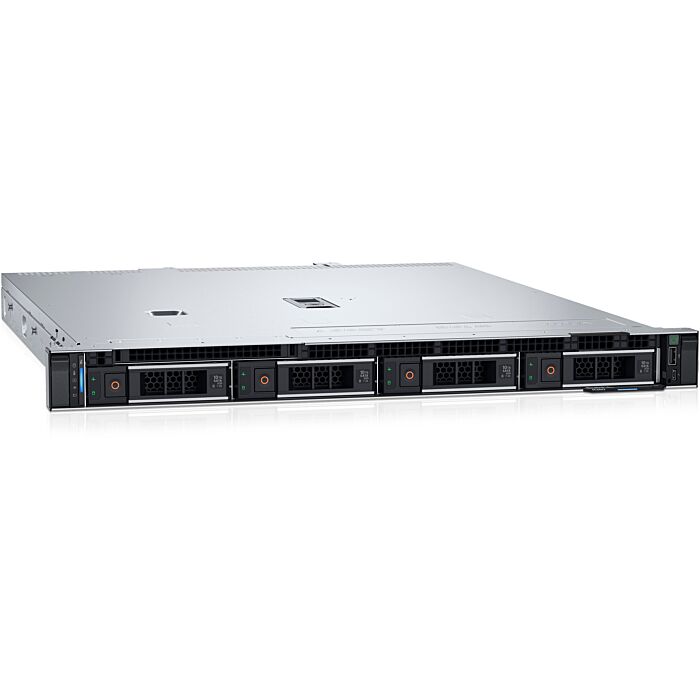

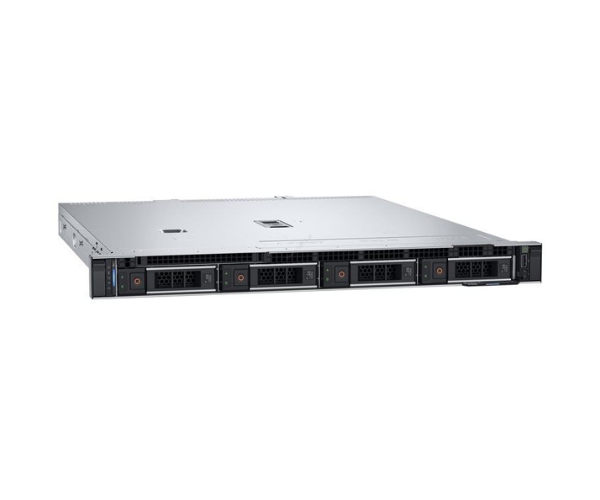

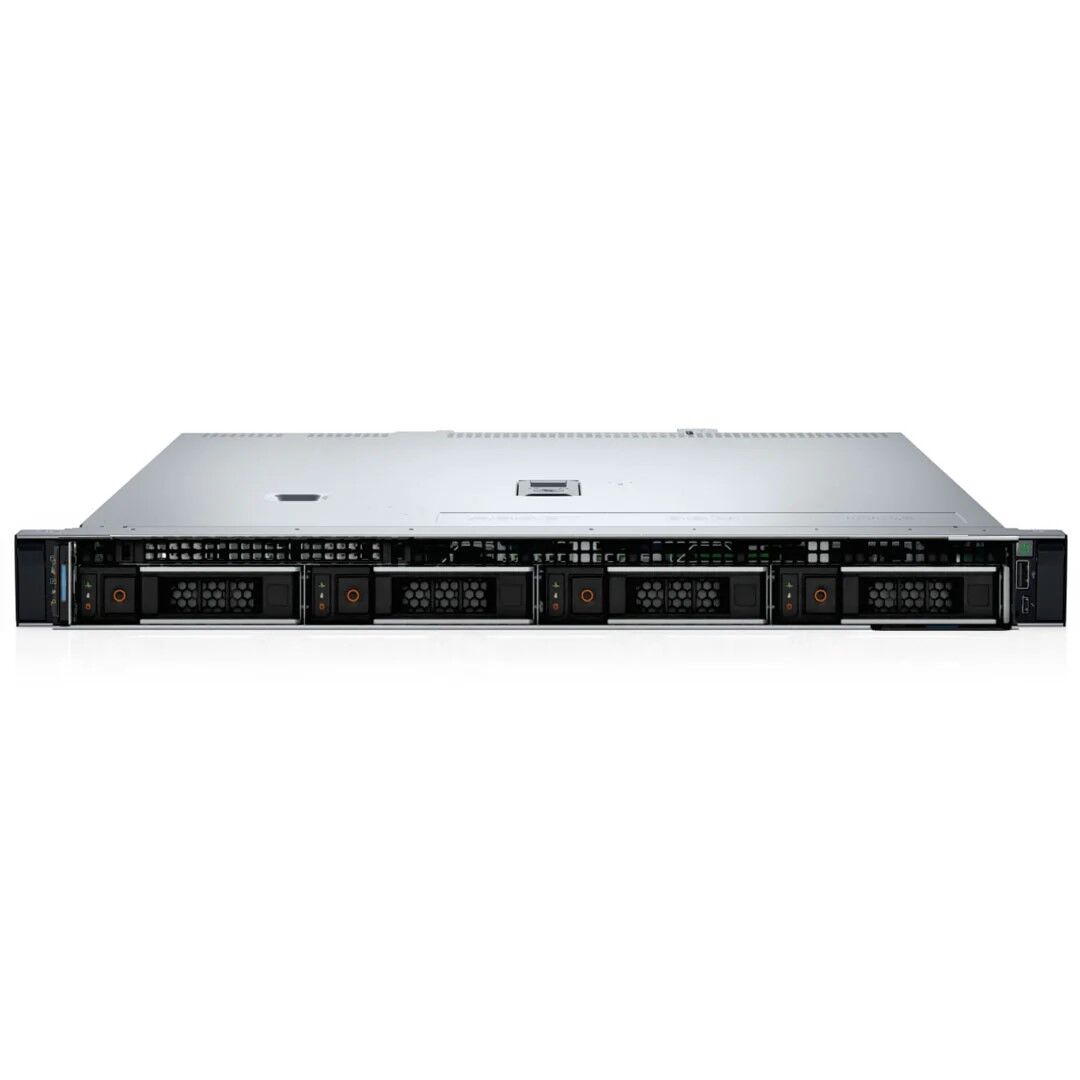

Dell PowerEdge R360 Server – Xeon E-2468, 16GB DDR5, 480GB SSD, Dual 700W PSU, PERC H755
Dell PowerEdge R360 Server - Xeon E-2468
Accelerate Your Business with Unmatched Performance
Optimized for demanding business applications, the robust Dell PowerEdge R360 Server combines cutting-edge technology and unrivaled reliability. Experience enhanced processing power, superior data management, and robust security to propel your business into the future.
Technical Specifications
Chassis & Build:
- 1U Rack Chassis with support for up to 4x 3.5" hot-plug hard drives
- Includes Front PERC 11 for optimized storage
Processor:
- Intel® Xeon® E-2468 equipped with 8 cores and 16 threads
- Base frequency at 2.6 GHz with Turbo capability
- 24MB Cache, Hyper-Threading support, 65W TDP
- DDR5 support for faster performance
Memory & Storage:
- 16GB (1x 16GB) 5600MT/s ECC UDIMM for data integrity
- 480GB SSD SATA offering swift data access, 6Gbps speed
- Unconfigured C7 RAID for mixed HDDs or SSDs
- Front PERC H755 Hardware RAID Controller
Power & Efficiency:
- Dual, fully redundant 700W Hot-Plug PSU
- Titanium Efficiency ensures reliable power management (200-240V only)
Networking & Connectivity:
- Broadcom 5720 Dual Port 1Gb On-Board LOM
Embedded Management:
- Equipped with iDRAC9 Basic for simplified remote management
Expansion & Features:
- UEFI Boot Mode with GPT Partition for superior data handling
- TPM 2.0 V3 for optimized security measures
- ReadyRails™ Sliding Rails for easy installation
- Standard 1U Bezel included
Power Cords & Accessories:
- Comes with 2x Rack Power Cord 2M (C13/C14, 10A)
Warranty & Support:
- 3 Years Basic Next Business Day Hardware Support
Experience efficiency redefined with the Dell PowerEdge R360 Server, expertly designed for modern enterprise environments, ensuring scalability and security.
Base Configuration Details of EMEA_PER360SPL4
| Form Factor | |
|---|---|
| Form Factor | Rackmount |
| CPU Details | |
| CPU | Intel® Xeon® E-2468 (8 cores, 16 threads, 2.6 GHz base frequency, 24MB Cache, Turbo, HT, 65W TDP, DDR5 support) |
| CPU - Max Qty | 1 |
| Installed CPU Cores | 8 |
| Memory Details | |
| Memory Installed | 16GB UDIMM, 5600MT/s, ECC |
| Memory Slots - Max Qty | 4 |
| Hard Drive Details | |
| Hard Drives Installed | 480GB SSD SATA (Read Intensive, 6Gbps, 512 block, 2.5in Hot-Plug in 3.5in Hybrid Carrier, 1 DWPD) |
| Hard Drive Bays - Max Qty | 4 |
| Backplane | 4x3.5" Hot-Plug Drives |
| Power Supply Details | |
| Power Supply | Dual, Fully Redundant (1+1) 700W Hot-Plug PSU, Titanium Efficiency (200-240V only) |
| Power Supplies - Max Qty | 2 |
| Other Specifications | |
| Optical Drive Pre-Installed | Not Supplied |
| Raid Controller | Front PERC H755 (Hardware RAID) |
| Network | Broadcom 5720 Dual Port 1Gb On-Board LOM |
| Management | iDRAC9 Basic (16G), Factory-Generated Password, Group Manager Disabled |
| Warranty and Extras | |
| Warranty | 3 Year Basic / Next Business Day |
| Included with this Server | ReadyRails™ Sliding Rails Without Cable Management Arm ReadyRails Static Rails for 2/4-post Racks |
Chassis: 1U Rack Chassis with up to 4x 3.5" Hot-Plug Hard Drives, Front PERC 11
Processor: Intel® Xeon® E-2468 (8 cores, 16 threads, 2.6 GHz base frequency, 24MB Cache, Turbo, HT, 65W TDP, DDR5 support)
Thermal Configuration: Standard Heatsink
Memory:
Type: 5600MT/s ECC UDIMM
Capacity: 16GB (1x 16GB module)
Storage:
Drive: 480GB SSD SATA (Read Intensive, 6Gbps, 512 block, 2.5in Hot-Plug in 3.5in Hybrid Carrier, 1 DWPD)
RAID Configuration: C7, Unconfigured RAID for mixed HDDs or SSDs
RAID Controller: Front PERC H755 (Hardware RAID)
Power Supply: Dual, Fully Redundant (1+1) 700W Hot-Plug PSU, Titanium Efficiency (200-240V only)
Networking: Broadcom 5720 Dual Port 1Gb On-Board LOM
Embedded Management: iDRAC9 Basic (16G), Factory-Generated Password, Group Manager Disabled
BIOS:
UEFI Boot Mode with GPT Partition
Power Saving BIOS Settings Enabled
Expansion:
PCIe Riser Config: No Riser
Fans: No Additional Fans for 3.5" Chassis
Rails: ReadyRails™ Sliding Rails without Cable Management Arm
Bezel: PowerEdge 1U Standard Bezel
Operating System: No Operating System Installed
Power Cords: 2x Rack Power Cord 2M (C13/C14, 10A)
Trusted Platform Module: TPM 2.0 V3
Warranty and Support
3 Years Basic Next Business Day Hardware Support
| Estimated Shipping Weight | 15.000000 |
|---|---|
| Estimated Shipping Length | 70 |
| Estimated Shipping Width | 65 |
| Estimated Shipping Height | 27 |
