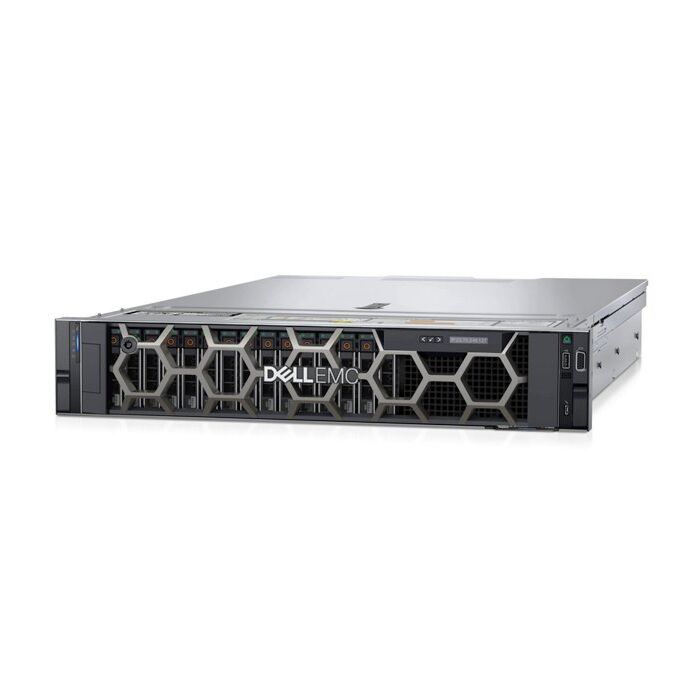

Dell PowerEdge R550 Server – Xeon Silver 4309Y, 16GB RAM, 480GB SSD, Dual 1100W PSU, PERC H755, 10GbE, 2U
Powerful Performance Meets Scalability
Introducing the Dell Server PowerEdge R550, known for its robust performance and versatility, designed to meet the demands of dynamic business environments. Powered by the advanced Intel® Xeon® Silver 4309Y processor, this server offers remarkable computing capabilities.
Key Features:
- Advanced architecture for optimized performance
- Seamless integration for uninterrupted operation
- Energy-efficient design with Titanium PSU
Technical Specifications:
- Chassis: 2U with support for 16x 2.5" Drives
- Processor: Intel® Xeon® Silver 4309Y 2.8GHz, 8-Core, 16-Thread
- Memory: 16GB RDIMM, 3200MT/s, Dual Rank
- Storage: 480GB SSD SATA Read Intensive 6Gbps
- RAID Controller: Front PERC H755, Rear Load Capability
- Network: Broadcom 57412 Dual Port 10GbE SFP+, OCP NIC 3.0
- Power Supply: Dual 1100W, Fully Redundant Hot-Plug Titanium PSU
- Management: iDRAC9, Enterprise 15G for enhanced remote management
- Expansion Slots: 1x16 LP + 1x8(x4 link) LP
- Backplane: Supports both SAS/SATA
- TPM 2.0 V3 security module for data protection
- Rack Power Cord: [x2] 2M (C13/C14 10A)
Why Choose Dell PowerEdge R550?
Experience the perfect balance of efficiency and power with Dell PowerEdge R550. Whether for virtual environments, large databases, or enterprise-applications, this server ensures your business keeps pace with growth. Easily manage workloads and reduce operational costs while enjoying reliable system management. Transform the way your business functions with the Dell Server PowerEdge R550 at its core.
Base Configuration Details of EMEA_PER550SPL2
| Form Factor | |
|---|---|
| Form Factor | Rackmount |
| CPU Details | |
| CPU | Intel® Xeon® Silver 4309Y 2.8G, 8C/16T, 10.4GT/s, 12M Cache, Turbo, HT (105W) DDR4-2666 |
| CPU - Max Qty | 2 |
| Installed CPU Cores | 8 |
| Memory Details | |
| Memory Installed | 16GB RDIMM, 3200MT/s, Dual Rank |
| Memory Slots - Max Qty | 16 |
| Hard Drive Details | |
| Hard Drives Installed | 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD |
| Hard Drive Bays - Max Qty | 16 |
| Backplane | 2.5" Chassis with up to 16 Hard Drives (SAS/SATA), 1 CPU, V3 |
| Power Supply Details | |
| Power Supply | Dual, Fully Redundant(1+1), Hot-Plug Power Supply,1100W MM(100-240Vac) Titanium |
| Power Supplies - Max Qty | 2 |
| Other Specifications | |
| Optical Drive Pre-Installed | None |
| Raid Controller | Front PERC H755 Rear Load |
| Network | Broadcom 57412 Dual Port 10GbE SFP+, OCP NIC 3.0 |
| Management | iDRAC9, Enterprise 15G |
| Warranty and Extras | |
| Warranty | 3 Year Basic / Next Business Day |
| Included with this Server | ReadyRails Sliding Rails Without Cable Management Arm |
PowerEdge R550 Server
Chassis with up to 16x2.5" Drives
SAS/SATA Backplane
Trusted Platform Module 2.0 V3
2.5" Chassis with up to 16 Hard Drives (SAS/SATA), 1 CPU, V3
Intel® Xeon® Silver 4309Y 2.8G, 8C/16T, 10.4GT/s, 12M Cache, Turbo, HT (105W) DDR4-2666
No Additional Processor
Standard Heatsink for 1 CPU configuration
16GB RDIMM, 3200MT/s, Dual Rank
C7, Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed)
Front PERC H755 Rear Load
480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive, 1 DWPD
UEFI BIOS Boot Mode with GPT Partition
iDRAC9, Enterprise 15G
Dual, Fully Redundant(1+1), Hot-Plug Power Supply,1100W MM(100-240Vac) Titanium
Power Cords
[x2]Rack Power Cord 2M (C13/C14 10A)
1 CPU, 1x16 LP+ 1x8(x4 link) LP
Broadcom 57412 Dual Port 10GbE SFP+, OCP NIC 3.0
PowerEdge 2U Standard Bezel
| Estimated Shipping Weight | 27.200000 |
|---|---|
| Estimated Shipping Length | 92 |
| Estimated Shipping Width | 67 |
| Estimated Shipping Height | 32 |
