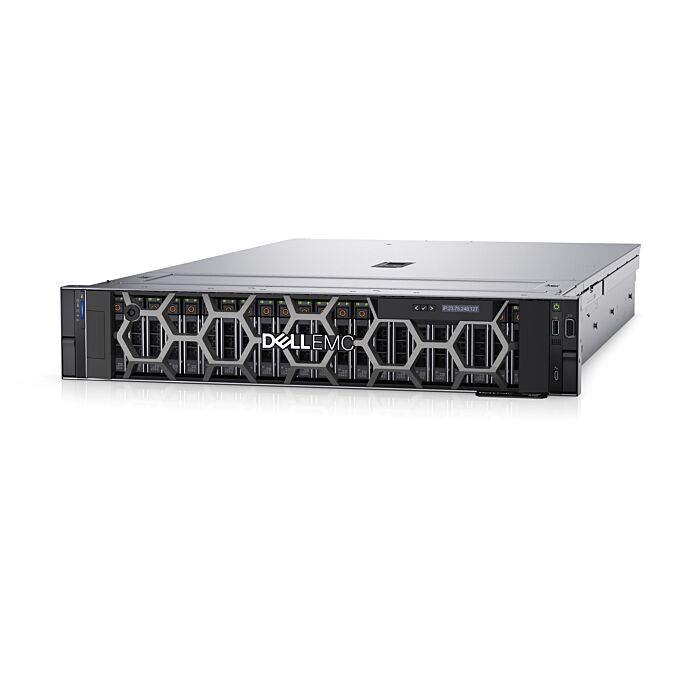

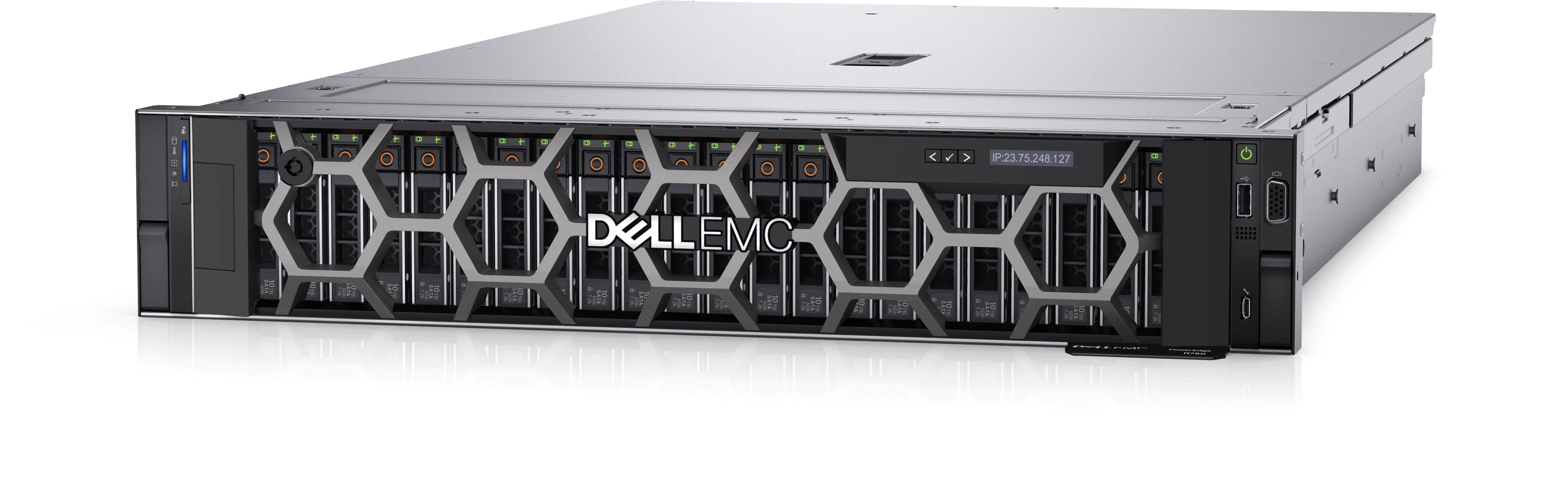

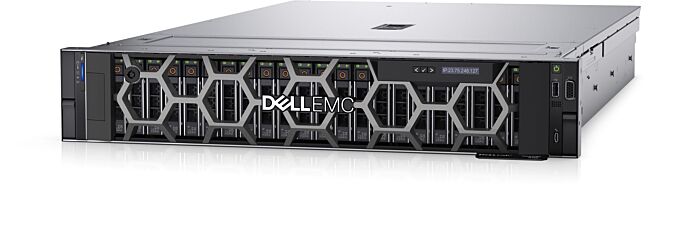

Dell PowerEdge R750XS Server Barebone (No CPU, Memory, or Storage)
PE R750XS/Chassis 16 x 2.5", Dual Intel Xeon Silver 4310 (18M Cache, 2.1GHz), 2x 32GB, 1x 1.2TB, Broadcom 57412 Dual Port 10GbE SFP, PERC H755 SAS, iDRAC9 Enterprise, Dual PSU 1100W
Base Configuration Details of emea_per750xs3spl
| Form Factor | |
|---|---|
| Form Factor | Rackmount |
| CPU Details | |
| CPU | 2 x Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666 |
| CPU - Max Qty | 2 |
| Installed CPU Cores | 24 |
| Memory Details | |
| Memory Installed | 2 x 32GB RDIMM, 3200MT/s, Dual Rank, 16Gb BASE x8 |
| Memory Slots - Max Qty | 16 |
| Hard Drive Details | |
| Hard Drives Installed | 1.2TB Hard Drive SAS 12Gbps 10k 512n 2.5in Hot-Plug |
| Hard Drive Bays - Max Qty | 16 |
| Backplane | SAS/SATA Backplane 16 x 2.5" Drive Bays |
| Power Supply Details | |
| Power Supply | Dual, Hot-Plug, Power Supply Fault Tolerant Redundant (1+1), 1100W MM (100-240Vac) Titanium, NAF |
| Power Supplies - Max Qty | 2 |
| Other Specifications | |
| Optical Drive Pre-Installed | Not Supplied |
| Raid Controller | PERC H755 Controller Adapter Full Height |
| Network | Broadcom 57412 Dual Port 10GbE SFP+, OCP NIC 3.0 + Broadcom 5720 Dual Port 1Gb On-Board LOM |
| Management | iDRAC9, Enterprise 15G |
| Warranty and Extras | |
| Warranty | 3Yr ProSupport and Next Business Day On-Site Service |
| Included with this Server | ReadyRails Sliding Rails Without Cable Management Arm |
PowerEdge R750xs Server
2.5 Chassis
SAS/SATA Backplane
No Rear Storage
2 CPU Configuration
Trusted Platform Module 2.0 V3
2.5" Chassis with up to 16 Hard Drives (SAS/SATA), 2 CPU, V3
Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666
Intel Xeon Silver 4310 2.1G, 12C/24T, 10.4GT/s, 18M Cache, Turbo, HT (120W) DDR4-2666
Additional Processor Selected
Standard Heatsink
Performance Optimized
3200MT/s RDIMMs
2x 32GB RDIMM, 3200MT/s, Dual Rank 16Gb BASE x8
Unconfigured RAID
PERC H755 SAS Front
Front PERC Mechanical Parts, rear load
1x 1.2TB Hard Drive SAS ISE 12Gbps 10k 512n 2.5in Hot-Plug
Power Saving BIOS Settings
Standard Fan x5
Dual, Hot-Plug, Power Supply Fault Tolerant Redundant (1+1), 1100W MM (100-240Vac) Titanium, NAF
C13 to C14, PDU Style, 10 AMP, 6.5 Feet (2m), Power Cord
Riser Config 0, Half Length, Low Profile, 5x16 + 1x4 slots
PowerEdge R750xs Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM
iDRAC9, Enterprise 15G
Broadcom 57412 Dual Port 10GbE SFP+, OCP NIC 3.0
PowerEdge 2U Standard Bezel
Dell EMC Luggage Tag R750xs
BOSS Blank
No Quick Sync
iDRAC,Factory Generated Password
iDRAC Group Manager, Disabled
No Operating System
No Media Required
ReadyRails Sliding Rails Without Cable Management Arm
No Systems Documentation, No OpenManage DVD Kit
Platinum PSU Configuration
No Internal Optical Drive
Basic Next Business Day 36 Months
ProSupport and Next Business Day Onsite Service Initial, 36 Month(s)
| Estimated Shipping Weight | 40.000000 |
|---|---|
| Estimated Shipping Length | 100 |
| Estimated Shipping Width | 65 |
| Estimated Shipping Height | 27 |
