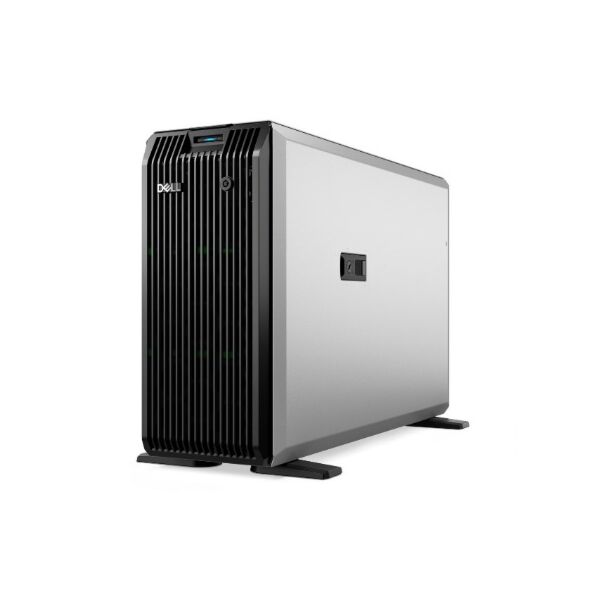

Dell PowerEdge T360 Server – Xeon E-2414, 3.5" 8-Bay, No RAM/HDD, PERC H355, 700W PSU
Important: Not Ready to Run
To be work-ready and ready to install, this product still requires the following components: Memory, Hard Drives.
If these items are not installed, we cannot guarantee a fully workable solution on delivery.
Recommended next steps:
- Memory-ready: Add matched DIMMs following channel population rules. We can validate POST, run memory tests, and baseline BIOS.
- Storage-ready: Add enterprise SSD/HDD with the correct caddies and a supported RAID/HBA.
Base Configuration Details of PET360SPL1-BASE
Form Factor | |
---|---|
Form Factor | Tower |
CPU Details | |
CPU | Intel® Xeon® E-2414 2.6G, 4C/4T, 12M Cache, Turbo, HT (55W) DDR5-4800 |
CPU - Max Qty | 1 |
Installed CPU Cores | 4 |
Memory Details | |
Memory Installed | None |
Memory Slots - Max Qty | 4 |
Hard Drive Details | |
Hard Drives Installed | None |
Hard Drive Bays - Max Qty | 8 |
Backplane | 3.5" Chassis with up to 8 Hot Plug Hard Drives and AIC PERC 11, hot-plug PSU |
Power Supply Details | |
Power Supply | 700 W Titanium 200-240 V AC or 700 W 240 V DC, hot swap redundant |
Power Supplies - Max Qty | 1 |
Other Specifications | |
Optical Drive Pre-Installed | Not Supplied |
Raid Controller | PERC H355 Controller, Adapter, Full Height |
Network | On-Board Broadcom 5720 Dual Port 1Gb LOM |
Management | iDRAC9, Basic 15G |
Warranty and Extras | |
Warranty | 3 Year Basic / Next Business Day |
PowerEdge T360 Server
Intel Xeon E-2414 2.6G, 4C/4T, 8M Cache, Turbo, HT (55W)
Chassis 8 x 3.5" Hot
NO HDD
NO RAM
iDRAC9 Enterprise 16G
PERC H355 Adapter, Full Height
No optical drive
PERC H355 Adapter, Full Height - Only RAID 1 and 10 possible
Rack Power Cord 2M (C13/C14 10A)
Single, Hot-Plug, Power Supply, 700W MM HLAC Titanium, Non Redundant (1+0)
On-Board Broadcom 5720 Dual Port 1Gb LOM
No Operating System
Security Bezel
3Yr Basic Onsite Warranty
Estimated Shipping Weight | 21.400000 |
---|---|
Estimated Shipping Length | 80 |
Estimated Shipping Width | 55 |
Estimated Shipping Height | 38 |
