Dell PowerEdge T550 Tower Server – Brand New | Xeon Silver 4309Y | 16GB DDR4 | 480GB SSD | PERC H755 | Dual 700W PSU | 8-Bay 3.5” Chassis | iDRAC9 Enterprise
R 84,186.00
Low Stock 2 left
Only 2 left
SKU
EMEA_PET550SPL2
Base Configuration Details of EMEA_PET550SPL2
| Form Factor | |
|---|---|
| Form Factor | Tower |
| CPU Details | |
| CPU | Intel Xeon Silver 4309Y 2.8G, 8C/16T, 10.4GT/s, 12M Cache, Turbo, HT (105W) DDR4-2666 |
| CPU - Max Qty | 2 |
| Installed CPU Cores | 8 |
| Memory Details | |
| Memory Installed | 16GB RDIMM, 3200MT/s, Dual Rank |
| Memory Slots - Max Qty | 16 |
| Hard Drive Details | |
| Hard Drives Installed | 1 x 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive,3.5in HYB CARR, 1 DWPD, |
| Hard Drive Bays - Max Qty | 8 |
| Backplane | 3.5" Chassis with up to 8 Hard Drives (SAS/SATA), 1 CPU |
| Power Supply Details | |
| Power Supply | Dual, Hot-Plug, Redundant (1+1), 700W Titanium |
| Power Supplies - Max Qty | 2 |
| Server Other Specifications | |
| Optical Drive Pre-Installed | Not Supplied |
| Raid Controller | PERC H755 with front load bracket |
| Network | Broadcom 5720 Dual Port 1Gb LOM |
| Management | iDRAC9, Enterprise 15G |
| Warranty and Extras | |
| Warranty | 3 Year Basic / Next Business Day |
- Empower your business with enterprise-grade performance
- Xeon Silver 4309Y processor ensures fast and reliable computing
- Speedy 16GB DDR4 memory handles complex tasks effortlessly
- 480GB SSD accelerates data access with robust storage
- Enhanced data protection with PERC H755 RAID controller
- Flexible expansion with 8-bay tower design
- Advanced management via iDRAC9 Enterprise
- Dual 700W PSU provides consistent power

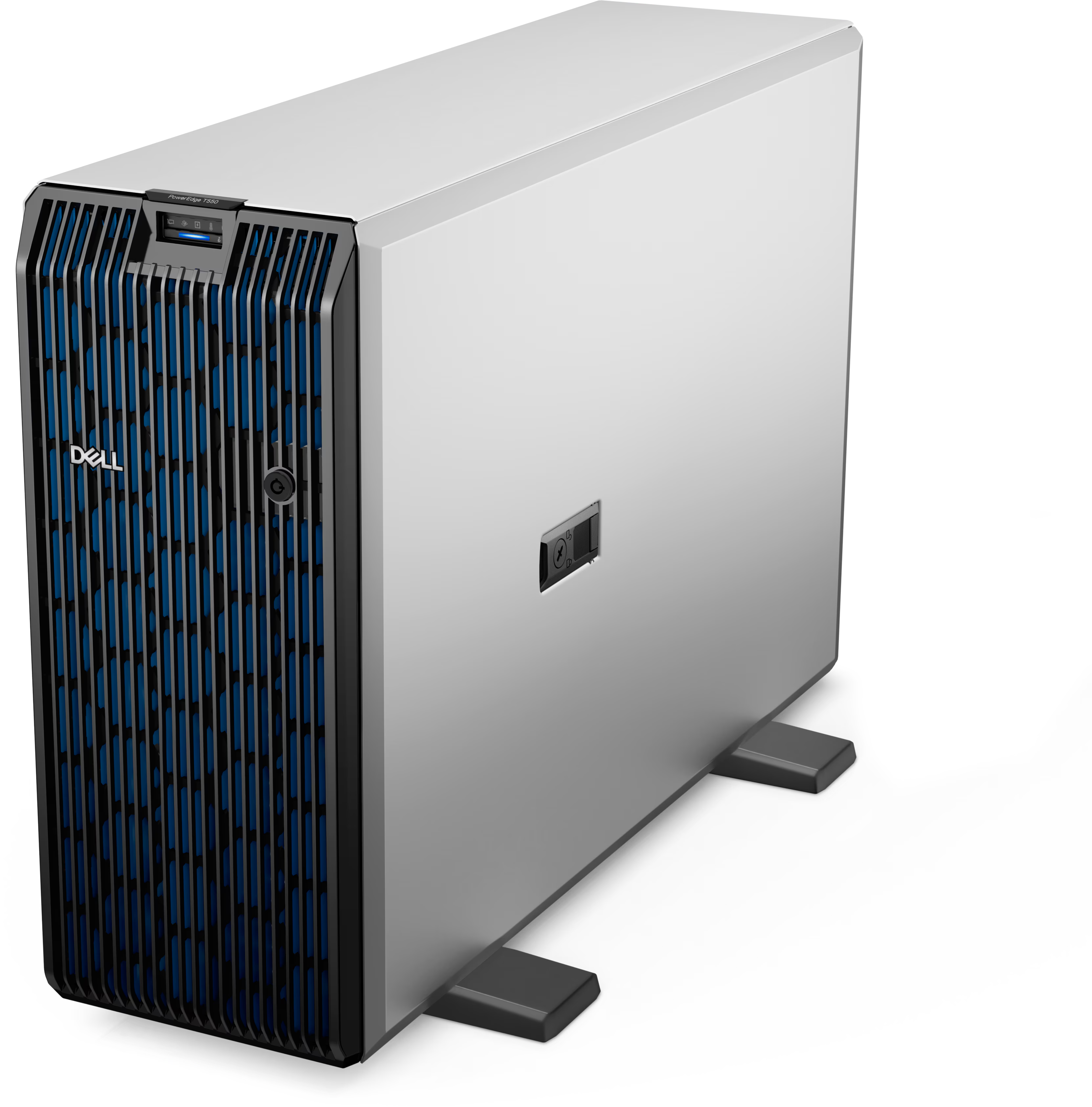

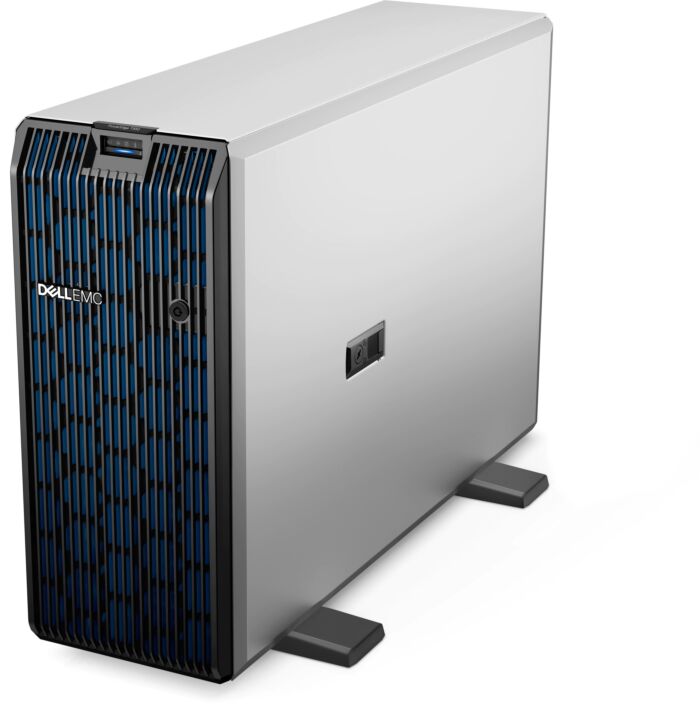

Dell PowerEdge T550 Server
Unleash unparalleled efficiency and reliability with the Dell PowerEdge T550 Server. Perfect for your growing business needs, this tower server combines power and manageability, offering a seamless experience.
Robust Specifications:
- Processor: Intel® Xeon® Silver 4309Y with 8 Cores / 16 Threads at a base frequency of 2.8 GHz
- Cache: 12MB with a TDP of 105W for optimal performance
- Memory: 16GB DDR4 RDIMM ECC with speeds up to 3200 MT/s
- Upgradeable to a max of 1TB DDR4 memory by utilizing up to 16 DIMM slots
- Storage: 480GB SATA SSD, easily adaptable with 3.5" SAS/SATA drive configuration supporting a mix of HDDs and SSDs
- RAID Controller: PERC H755 with RAID 0, 1, 5, 6, 10, 50, and 60 configurations
- Power: Dual 700W Hot-Plug redundant PSUs ensuring nonstop operation
Advanced Features:
- Management: Equipped with iDRAC9 Enterprise for advanced management capabilities
- Networking: Broadcom 5720 Dual Port 1Gb LOM for seamless connectivity
- Cooling: Standard fans to maintain optimal temperatures
- Chassis: Tower Type with up to 8 x 3.5" drive bays
- Expansion Options: Flexible with riser slots for future upgrades
- BIOS: Power Saving Mode with UEFI BIOS boot configuration
Dimensions and Support:
- Dimensions: Height - 430mm, Width - 218mm, Depth - 544mm
- Starting Weight: Approximately 22kg
- Reliable Support: Enjoy Basic Next Business Day Warranty for 36 Months with the possibility of upgrading to Mission Critical Support
Enhance your IT infrastructure with the Dell PowerEdge T550 – engineered to deliver high performance and capable growth scalability.
Processor
Model: Intel® Xeon® Silver 4309Y
Cores/Threads: 8 Cores / 16 Threads
Base Frequency: 2.8 GHz
Cache: 12MB
TDP: 105W
Memory Speed Support: DDR4-2666
Memory
Installed Memory: 16GB RDIMM
Memory Type: DDR4 RDIMM, ECC
Memory Speed: 3200 MT/s
Total Memory Slots: Up to 16 DIMM slots
Max Memory Capacity: 1TB (when fully populated with compatible DIMMs)
Storage
Storage Configuration:
480GB SATA SSD (Read Intensive, Hot-Plug)
**Hybrid 2.5-inch SSD with 3.5-inch carrier)
Supported Drives:
3.5” SAS/SATA drives (up to 8 bays)
Mix of HDDs and SSDs supported
Backplane: Supports SAS/SATA drives
RAID Controller
Model: PERC H755 (Front Load)
Interface: PCIe Gen4
Cache Memory: Supports RAID 0, 1, 5, 6, 10, 50, and 60 configurations
Chassis and Bays
Chassis Type: Tower
Drive Bays: Up to 8 x 3.5" SAS/SATA drives
Rear Storage: None configured
Power Supply
Type: Dual, Hot-Plug, Redundant (1+1)
Capacity: 700W Titanium
Voltage Range: 200-240V (HLAC)
Cooling
Fans: 3 Standard Fans (No redundancy)
Management
Embedded Management: iDRAC9 Enterprise (15G)
Group Manager: Disabled
Quick Sync: Not configured
Networking
Onboard NIC: Broadcom 5720 Dual Port 1Gb LOM
OCP 3.0 NIC Card: Blank Filler (No additional OCP NIC)
Operating System
OS Installed: None
Media Kits: Not included
BIOS Settings
Power Management: Power Saving BIOS Setting
Boot Mode: UEFI BIOS with GPT Partition
Expansion Slots
Riser Config: No PCIe riser
Total Slots: Dependent on configuration for future PCIe cards
Physical Dimensions
Form Factor: Tower Server
Approximate Dimensions:
Height: 430mm
Width: 218mm
Depth: 544mm
Weight: Varies by configuration (~22kg starting weight)
Warranty & Support
Standard Support: Basic Next Business Day (36 Months)
Upgrade Options:
ProSupport with Next Business Day Onsite
ProSupport Plus with 4-Hour Mission Critical Service
| Estimated Shipping Weight | 45.200000 |
|---|---|
| Estimated Shipping Length | 91 |
| Estimated Shipping Width | 64 |
| Estimated Shipping Height | 55 |
| New | New |
