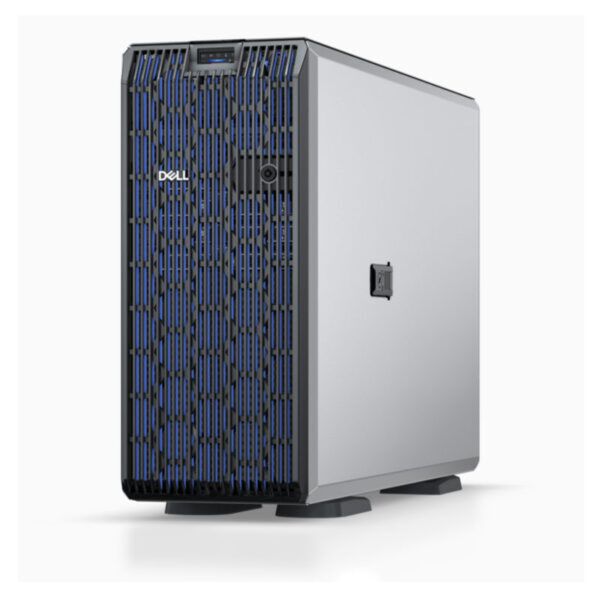

Dell PowerEdge T560 Server – Xeon Silver 4410Y, 16GB DDR5, 480GB SSD, Dual 700W PSU
Base Configuration Details of EMEA_PET560SPL1
| Form Factor | |
|---|---|
| Form Factor | Tower |
| CPU Details | |
| CPU | Intel Xeon Silver 4410Y 2G, 12C, 24T, 16GT, s, 30M Cache, Turbo, HT (150W) DDR5-4000 |
| CPU - Max Qty | 2 |
| Installed CPU Cores | 12 |
| Memory Details | |
| Memory Installed | 16GB RDIMM, 4800MT, s, Single Rank |
| Memory Slots - Max Qty | 16 |
| Hard Drive Details | |
| Hard Drives Installed | 480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive,3.5in HYB CARR, 1 DWPD, |
| Hard Drive Bays - Max Qty | 8 |
| Backplane | Hot-Plug 3.5" Chassis with up to 8 Hard Drives (SAS, SATA), 1 CPU, PERC 11 |
| Power Supply Details | |
| Power Supply | Dual, Hot-Plug, Power Supply, 700W MM HLAC Titanium, Redundant (1+1) |
| Power Supplies - Max Qty | 2 |
| Other Specifications | |
| Optical Drive Pre-Installed | None |
| Raid Controller | PERC H755 with front load bracket |
| Network | PowerEdge T560 Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM, V2 |
| Management | iDRAC9, Enterprise 15G |
| Warranty and Extras | |
| Warranty | 3 Year Parts / 3 Year Labour / 3 Year Onsite Next Business Day |
PowerEdge T560 Server
Chassis with up to 8x3.5" Drives
1 CPU Configuration
Trusted Platform Module 2.0 V3
3.5" Chassis with up to 8 Hard Drives (SAS, SATA), 1 CPU, PERC 11
Intel Xeon Silver 4410Y 2G, 12C, 24T, 16GT, s, 30M Cache, Turbo, HT (150W) DDR5-4000
No Additional Processor
Heatsink for 1 CPU configuration (CPU less than or equal to 150W)
Performance Optimized
4800MT, s RDIMMs
16GB RDIMM, 4800MT, s, Single Rank
Unconfigured Raid
PERC H755 with front load bracket
480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive,3.5in HYB CARR, 1 DWPD,
Power Saving BIOS Setting
Standard Fan x8 with Fan Redundancy
No OCP 3.0 mezzanine NIC card, Blank Filler Only
Dual, Hot-Plug, Power Supply, 700W MM HLAC Titanium, Redundant (1+1)
Rack Power Cord 2M (C13, C14 10A)
Riser Config0, No PCIe Riser, 1 CPU
PowerEdge T560 Motherboard with Broadcom 5720 Dual Port 1Gb On-Board LOM, V2
iDRAC9, Enterprise 15G
Parallax Security Bezel, Two Layer Door
BOSS S2 Blank
No Quick Sync, V2
iDRAC,Factory Generated Password
iDRAC Group Manager, Disabled
No Operating System
No Media Required
No Internal Optical Drive
No Systems Documentation, No OpenManage DVD Kit
PowerEdge T560 Shipping EMEA1
PowerEdge T560 Shipping Material
PowerEdge T560 CE, CCC Marking, No BIS Marking
Enterprise Order - EMEA
PowerEdge T560 SmartValue Bundle
Basic Next Business Day 36 Months, 36 Month(s)
| Estimated Shipping Weight | 48.000000 |
|---|---|
| Estimated Shipping Length | 91 |
| Estimated Shipping Width | 64 |
| Estimated Shipping Height | 54 |
