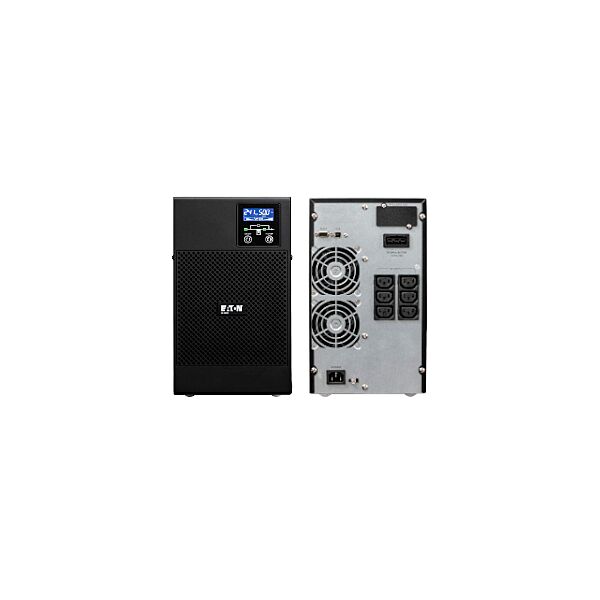

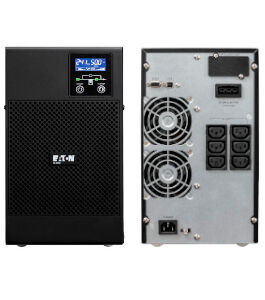

Eaton 9E UPS with 2000VA and 1600W Stable Power Supply - Tower Design, 2-Year Warranty | 9E2000I
R 13,275.00
Low Stock 3 left
Only 3 left
SKU
9E2000I
Eaton 9E Online Double Conversion (Essential) UPS Tower, 2000VA/ 2KVA, 1600W Input: C14 Output: C13 Outlets: 6 Mounting bracket: N/A Rack type N/A Network card: Optional Communication: USB/ RS232/ Network- Card Slot Battery included: Yes Extended EBM option 4 Battery type: lead acid Warranty: 2y
PRODUCT NAME
Eaton 9E UPS
CATALOG NUMBER
9E2000I
UPC
786689166571
PRODUCT LENGTH/DEPTH
399 mm
PRODUCT HEIGHT
330 mm
PRODUCT WIDTH
190 mm
PRODUCT WEIGHT
15.8 kg
COMPLIANCES
CE Marked
TUV
TUV
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
IEC/EN 62040-2
CE
EAC
BATTERY
BATTERY TYPE
Sealed, lead-acid
RUNTIME GRAPH
BATTERY REPLACEMENT
Replacable batteries
BATTERY QUANTITY
6
BATTERY MANAGEMENT
- Automatic battery test
- Deep discharge protection
BATTERY RATING
12 V / 7 Ah
EXTENDED BATTERY CAPABILITY
Yes
ELECTRICAL OUTPUT
RECEPTACLE
(6) C13
VOLTAGE
230V
WATTAGE
1600W
OUTPUT POWER FACTOR
0.8
OUTPUT VOLTAGE RANGE
220/230/240 V +/- 2%
OUTPUT WAVEFORM
Sine wave
OUTPUT NOMINAL VOLTAGE
230V default (220/230/240V)
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX
3
FEED TYPE
1
TOPOLOGY
Online/Double-conversion
VA RATING
2000 VA
ELECTRICAL INPUT
INPUT CONNECTION
C14
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
NOMINAL FREQUENCY
50/60 Hz
INPUT POWER FACTOR
>.99
INPUT VOLTAGE RANGE
176-300 V (100 V-300 V with derating)
INPUT FREQUENCY RANGE
40-70 Hz
COMMUNICATIONS
INCLUDES NETWORK CARD
No
COMMUNICATION
- USB port (HID compliant)
- Serial port (RS232)
- Communication slot
ETHERNET INTERFACE
No
USER INTERFACE
LCD Display
POTENTIAL FREE SWITCH CONTACT
No
EXPANSION SLOTS
One slot for optional communication card
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
TYPE OF INTERFACE
Other
ENVIRONMENTAL
ALTITUDE
3000 m
NOISE LEVEL
<37 dB at 1 meter
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
RELATIVE HUMIDITY
0-95% non-condensing
ADDITIONAL SPECIFICATIONS
CONSTRUCTION TYPE
Free standing model
PACKAGE CONTENTS
- UPS
- USB cable
- Serial cable
- Quickstart guide
- Safety instructions
PHASE (OUTPUT)
1
INTERNAL BYPASS
Yes
AUTO SHUTDOWN FUNCTION
Yes
COLOR
Black
EFFICIENCY
91
RACK MOUNTING KIT
No
PHASE (INPUT)
1
HOT SWAP POWER
No
| Estimated Shipping Weight | 24.060000 |
|---|---|
| Estimated Shipping Length | 49 |
| Estimated Shipping Width | 33 |
| Estimated Shipping Height | 45 |
| New | New |
