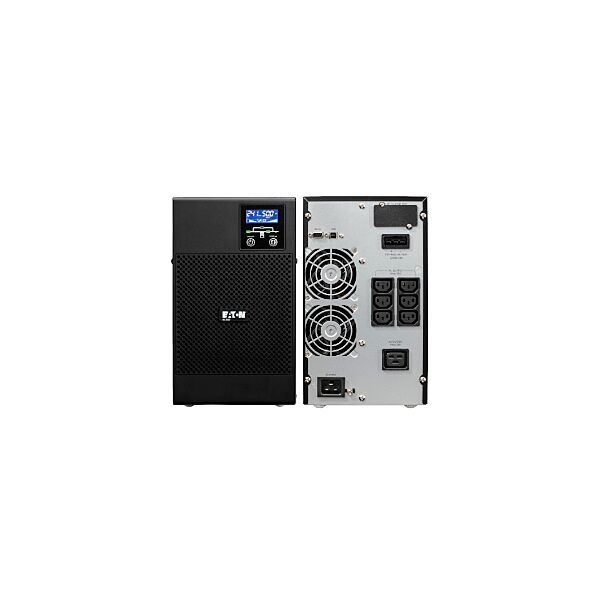

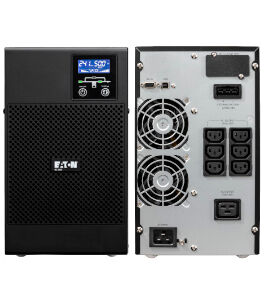

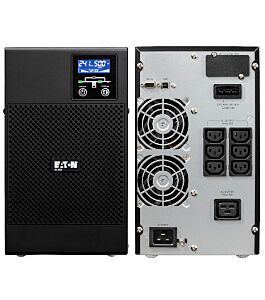

Eaton 9E UPS with 3000VA and 2400W Reliable Power Supply - 2-Year Warranty | 9E3000I
R 18,592.00
Out of Stock
SKU
9E3000I
Eaton 9E Online Double Conversion (Essential) UPS Tower, 3000VA/ 3kvA, 2400W Input: C20 Output: C13 & C19 Outlets: 6 & 1 Mounting bracket: N/A Rack type N/A Network card: Optional Communication: USB/ RS232/ Network- Card Slot Battery included: Yes Extended EBM option 4 Battery type: lead acid Warranty: 2y
PRODUCT NAME
Eaton 9E UPS
CATALOG NUMBER
9E3000I
UPC
786689166588
PRODUCT LENGTH/DEPTH
19 cm
PRODUCT HEIGHT
33 cm
PRODUCT WIDTH
39.9 cm
PRODUCT WEIGHT
24.2 kg
COMPLIANCES
CE Marked
TUV
TUV
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
IEC/EN 62040-2
CE
EAC
BATTERY
BATTERY TYPE
Sealed, lead-acid
RUNTIME GRAPH
BATTERY REPLACEMENT
Replacable batteries
BATTERY QUANTITY
6
BATTERY MANAGEMENT
- Automatic battery test
- Deep discharge protection
BATTERY RATING
12 V / 9 Ah
EXTENDED BATTERY CAPABILITY
Yes
ELECTRICAL OUTPUT
RECEPTACLE
(6) C13, (1) C19
VOLTAGE
230V
WATTAGE
2400 W
OUTPUT POWER FACTOR
0.8
OUTPUT VOLTAGE RANGE
220/230/240 V +/- 2%
OUTPUT WAVEFORM
Sine wave
OUTPUT NOMINAL VOLTAGE
230V default (220/230/240V)
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX
3
FEED TYPE
1
TOPOLOGY
Online/Double-conversion
VA RATING
3000 VA
ELECTRICAL INPUT
INPUT CONNECTION
C20
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
NOMINAL FREQUENCY
50/60 Hz
INPUT POWER FACTOR
>.99
INPUT VOLTAGE RANGE
176-300 V (100 V-300 V with derating)
INPUT FREQUENCY RANGE
40-70 Hz
COMMUNICATIONS
INCLUDES NETWORK CARD
No
COMMUNICATION
- USB port (HID compliant)
- Serial port (RS232)
- Communication slot
ETHERNET INTERFACE
No
USER INTERFACE
LCD Display
POTENTIAL FREE SWITCH CONTACT
No
EXPANSION SLOTS
One slot for optional communication card
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
TYPE OF INTERFACE
Other
ENVIRONMENTAL
ALTITUDE
3000 m
NOISE LEVEL
<37 dB at 1 meter
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
RELATIVE HUMIDITY
0-95% non-condensing
ADDITIONAL SPECIFICATIONS
CONSTRUCTION TYPE
Free standing model
PACKAGE CONTENTS
- UPS
- USB cable
- Serial cable
- Quickstart guide
- Safety instructions
PHASE (OUTPUT)
1
INTERNAL BYPASS
Yes
AUTO SHUTDOWN FUNCTION
Yes
COLOR
Black
EFFICIENCY
91
RACK MOUNTING KIT
No
PHASE (INPUT)
1
HOT SWAP POWER
No
| Estimated Shipping Weight | 26.460000 |
|---|---|
| Estimated Shipping Length | 50 |
| Estimated Shipping Width | 34 |
| Estimated Shipping Height | 46 |
| New | New |
