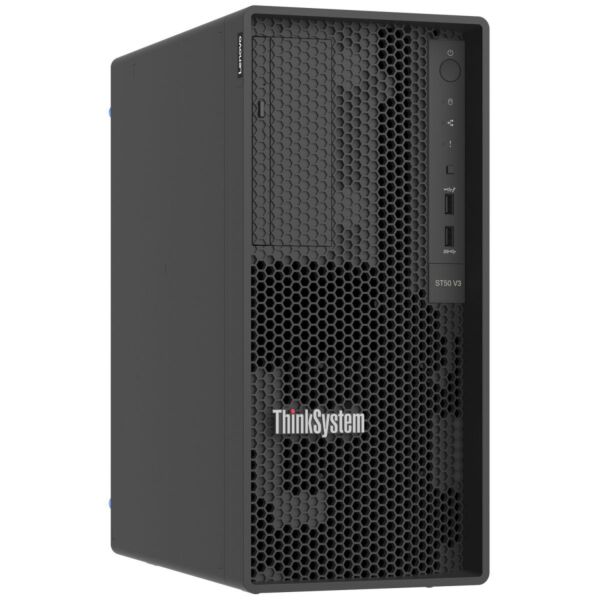

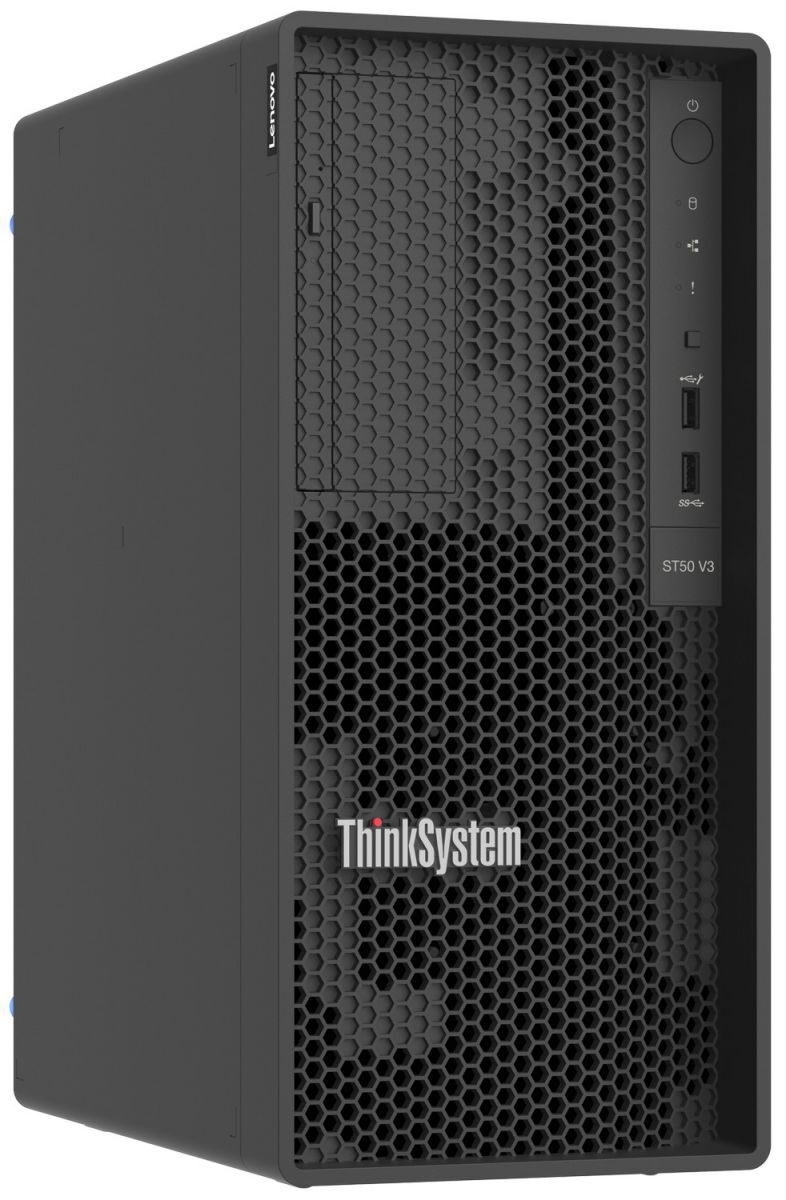

Lenovo ThinkSystem ST50 V3 – Xeon E-2414, 2x 960GB SSD, 16GB, 500W, 3Y Warranty
Important: Not Ready to Run
To be work-ready and ready to install, this product still requires the following components: Operating System.
If these items are not installed, we cannot guarantee a fully workable solution on delivery.
Recommended next steps:
- Operating System Ready: Add your preferred storage drives and RAID/HBA to create a bootable volume, so you can install your own operating system immediately after delivery. We will ensure all firmware is up to date and the system POSTs correctly.
Base Configuration Details of 7DF3A010EA
| Form Factor | |
|---|---|
| Form Factor | Tower |
| CPU Details | |
| CPU | Intel Xeon E-2414 (4 cores, 2.6GHz, 8MB Cache, 55W TDP) |
| CPU - Max Qty | 1 |
| Installed CPU Cores | 4 |
| Memory Details | |
| Memory Installed | 16GB DDR4 UDIMM (1 x 16GB module, ECC support) |
| Memory Slots - Max Qty | 4 |
| Hard Drive Details | |
| Hard Drives Installed | 2 x 960GB Micron 5400 Pro SSD |
| Hard Drive Bays - Max Qty | 4 |
| Backplane | Up to 4 x 3.5" or 2.5" drives supported (mix of HDD/SSD, depending on cage/backplane) |
| Power Supply Details | |
| Power Supply | 500W, 94% efficient, fixed (not hot-swap, not redundant) |
| Power Supplies - Max Qty | 1 |
| Other Specifications | |
| Optical Drive Pre-Installed | None |
| Raid Controller | Software RAID (supports RAID 0/1/5/10 with Intel RST) |
| Network | 1 x Gigabit Ethernet port (Intel I219-LM) |
| Operating System Installed | None |
| Warranty and Extras | |
| Warranty | 3 Year Basic / Next Business Day |
Chassis ThinkSystem ST50 V3 Mini-Tower, 4x 3.5" drive bays
CPU Intel Xeon E-2414, 4C/4T, 2.6GHz, 8MB, 55W
Memory 1x 16GB DDR5-4800 ECC UDIMM (max 128GB/4 slots)
Storage 2x 960GB 3.5" SATA SSDs, Read Intensive
Storage Cage 2nd HDD cage installed (enables >2 drives)
RAID Software RAID (0/1/5/10), onboard SATA, AHCI mode
Optical Slim ODD cage (drive not installed)
PSU 500W Platinum ATX, 230V/115V
Fan Rear system fan kit installed
Networking 1 x Gigabit Ethernet (onboard)
Security TPM 2.0, Chassis Intrusion Switch, IPMI-over-LAN disabled
Management Lenovo XClarity Pro 3yr, XCC2 Platinum upgrade
Environmental CO2 offset, 20 metric tonnes total
Service & Warranty 3yr Premier NBD onsite, Keep Your Drive Add-on
Accessories 2.8m power cord, EMEA compliant
| Estimated Shipping Weight | 16.000000 |
|---|---|
| Estimated Shipping Length | 60 |
| Estimated Shipping Width | 35 |
| Estimated Shipping Height | 60 |
| Operating System Installed | None |
