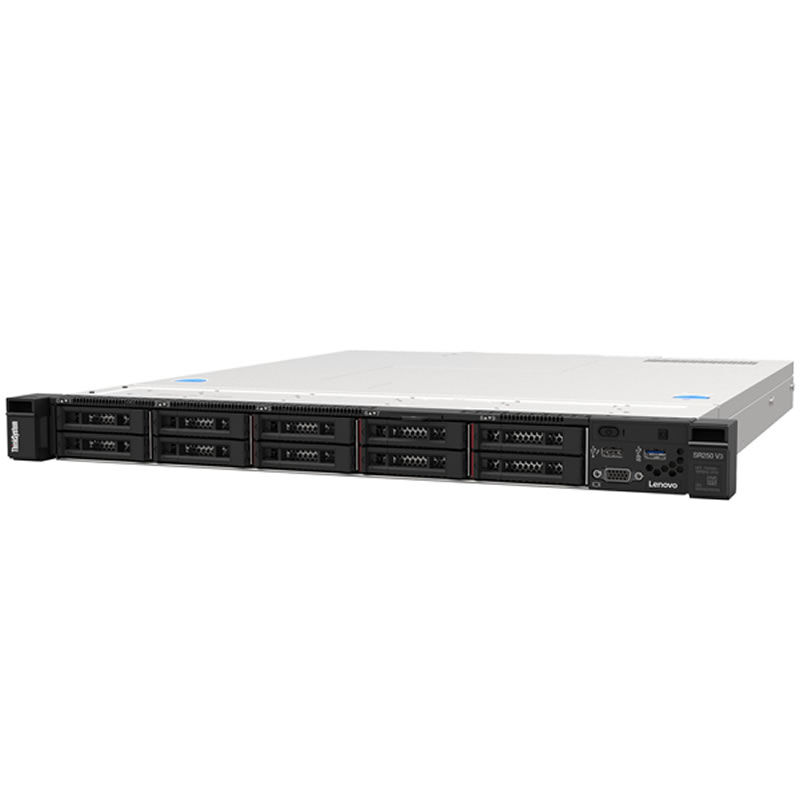

Lenovo ThinkSystem SR250 V3 Rack Server – Xeon E-2468, 32GB DDR5, RAID 5350-8i, 8x2.5" Backplane, XCC2 Platinum, 800W PSU
Important: Not Ready to Run
To be work-ready and ready to install, this product still requires the following components: Hard Drives, Operating System.
If these items are not installed, we cannot guarantee a fully workable solution on delivery.
Recommended next steps:
- Storage-ready: Add enterprise SSD/HDD with the correct caddies and a supported RAID/HBA.
- Operating System Ready: Add your preferred storage drives and RAID/HBA to create a bootable volume, so you can install your own operating system immediately after delivery. We will ensure all firmware is up to date and the system POSTs correctly.
Base Configuration Details of 7DCLA00TEA
| Form Factor | |
|---|---|
| Form Factor | Rackmount |
| CPU Details | |
| CPU | Intel Xeon E-2468 – 8 Cores / 16 Threads, 2.6GHz Base, 65W TDP |
| CPU - Max Qty | 1 |
| Installed CPU Cores | 8 |
| Memory Details | |
| Memory Installed | 32GB TruDDR5 4800MHz ECC UDIMM (2Rx8) |
| Memory Slots - Max Qty | 4 |
| Hard Drive Details | |
| Hard Drives Installed | None |
| Hard Drive Bays - Max Qty | 8 |
| Backplane | 8x 2.5" Hot-Swap SAS/SATA Backplane Kit (RAID/HBA v2 support) |
| Power Supply Details | |
| Power Supply | 800W Titanium Hot-Swap CRPS PSU (230V/115V, v1.4) |
| Power Supplies - Max Qty | 2 |
| Other Specifications | |
| Optical Drive Pre-Installed | Not Supplied |
| Raid Controller | ThinkSystem RAID 5350-8i PCIe Gen4, 12Gb SAS/SATA Internal Adapter |
| Network | 1x Integrated Intel I219-LM Gigabit Ethernet |
| Management | Lenovo XClarity Controller 2 (XCC2) – Platinum License (FOD) |
| Operating System Installed | None |
| Warranty and Extras | |
| Warranty | 3 Year Basic / Next Business Day |
| Included with this Server | Rack Mount Kit: Toolless Friction Rail Kit v2 |
Base
1x ThinkSystem SR250 2.5" Chassis(Standard)
Processors
1x ThinkSystem Intel Xeon E-2356G 6C 80W 3.2GHz Processor(Standard)
Memory
1x ThinkSystem 32GB TruDDR4 3200MHz (2Rx8, 1.2V) ECC UDIMM(Standard)
Storage
1x Select Storage devices - no configured RAID required(Standard)
1x ThinkSystem RAID 5350-8i PCIe 12Gb Adapter(Standard)
1x ThinkSystem SR250/SR250 V2 8x2.5" Hot Swap SAS/SATA Backplane Kit for X350/X40 RAID/HBA v2(Standard)
PCI
1x ThinkSystem SR250 V2 x8/x8 PCIe Gen4 Riser(Standard)
Power
1x ThinkSystem 450W 230V Titanium Hot-Swap Power Supply(Standard)
1x 1.5m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable(Standard)
Others
1x ThinkSystem XClarity Controller Standard to Enterprise Upgrade(Standard)
1x ThinkSystem SR250/SR150 Toolless Friction Rail(Standard)
Security
1x Enable TPM 2.0(Standard)
1x Disable IPMI-over-LAN(Standard)
| Estimated Shipping Weight | 15.000000 |
|---|---|
| Estimated Shipping Length | 65 |
| Estimated Shipping Width | 65 |
| Estimated Shipping Height | 15 |
