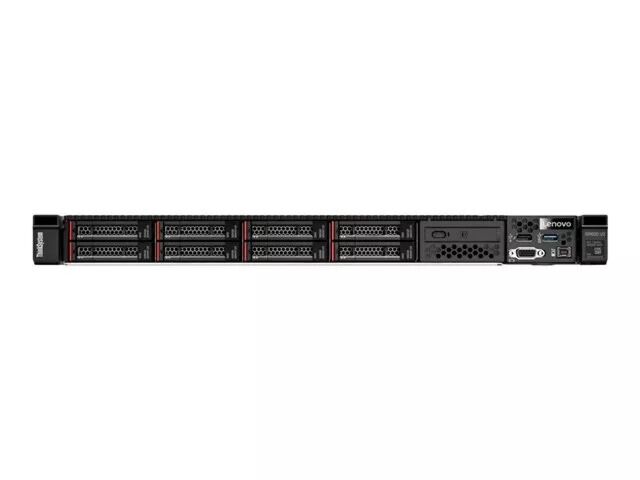

Lenovo ThinkSystem SR630 V3 Rack Server – Xeon Silver 4510, 32GB DDR5, RAID 9350-8i, 10x2.5" Chassis, XCC2 Platinum, 1100W PSU
Important: Not Ready to Run
To be work-ready and ready to install, this product still requires the following components: Hard Drives, Operating System.
If these items are not installed, we cannot guarantee a fully workable solution on delivery.
Recommended next steps:
- Storage-ready: Add enterprise SSD/HDD with the correct caddies and a supported RAID/HBA.
- Operating System Ready: Add your preferred storage drives and RAID/HBA to create a bootable volume, so you can install your own operating system immediately after delivery. We will ensure all firmware is up to date and the system POSTs correctly.
Base Configuration Details of 7D73A03VEA
| Form Factor | |
|---|---|
| Form Factor | Rackmount |
| CPU Details | |
| CPU | Intel Xeon Silver 4510 – 12 Cores / 24 Threads, 2.4GHz Base, 150W TDP |
| CPU - Max Qty | 2 |
| Installed CPU Cores | 12 |
| Memory Details | |
| Memory Installed | 32GB TruDDR5 4800MHz ECC RDIMM (1Rx4) |
| Memory Slots - Max Qty | 32 |
| Hard Drive Details | |
| Hard Drives Installed | None |
| Hard Drive Bays - Max Qty | 8 |
| Backplane | 1U 8x2.5" SAS/SATA Backplane (Hot-Swap) |
| Power Supply Details | |
| Power Supply | 1100W Titanium Hot-Swap Gen2 PSU (230V) |
| Power Supplies - Max Qty | 2 |
| Other Specifications | |
| Optical Drive Pre-Installed | Not Supplied |
| Raid Controller | RAID Controller: ThinkSystem RAID 9350-8i PCIe Gen4, 12Gb/s SAS/SATA, 2GB Flash Cache |
| Network | Integrated 1GbE ports (model-dependent, can be expanded with NIC options) |
| Management | Lenovo XClarity Controller 2 (XCC2) – Platinum Upgrade (FOD) |
| Operating System Installed | None |
| Warranty and Extras | |
| Warranty | 3 Year Basic / Next Business Day |
| Included with this Server | Toolless Slide Rail Kit v2 for fast deployment |
Base
1x Enable selection of latest options and features where available. Previous versions are disabled. To be able to select the previous versions, select None.(Standard)
1x ThinkSystem SR630 2.5" Chassis with 8 Bays v2(Standard)
Processors
1x ThinkSystem SR530/SR570/SR630 Intel Xeon Silver 4208 8C 85W 2.1GHz Processor Option Kit w/o FAN(Standard)
Memory
1x ThinkSystem 32GB TruDDR4 2933MHz (2Rx4 1.2V) RDIMM(Standard)
Storage
1x ThinkSystem SR530/SR630 2.5" SATA/SAS 8-Bay Backplane Kit v2(Standard)
1x Select Storage devices - no configured RAID required(Standard)
1x ThinkSystem RAID 9350-8i 2GB Flash PCIe 12Gb Adapter(Standard)
PCI
1x ThinkSystem SR530/SR570/SR630 x8/x16 PCIe LP+LP Riser 1 Kit(Standard)
Power
1x ThinkSystem 750W 230V Titanium Hot-Swap Power Supply(Standard)
1x 2.8m, 10A/100-250V, C13 to IEC 320-C14 Rack Power Cable(Standard)
Others
1x ThinkSystem XClarity Controller Standard to Enterprise Upgrade(Standard)
1x ThinkSystem Toolless Slide Rail(Standard)
Security
1x Enable TPM 2.0(Standard)
1x Disable IPMI-over-LAN(Standard)
| Estimated Shipping Weight | 25.000000 |
|---|---|
| Estimated Shipping Length | 100 |
| Estimated Shipping Width | 65 |
| Estimated Shipping Height | 15 |
| Operating System Installed | None |
