Lenovo ThinkSystem SR665 V3 Rack Server – AMD EPYC 9174F, 32GB DDR5, 24x SFF Bay, 1800W PSU
Important: Not Ready to Run
To be work-ready and ready to install, this product still requires the following components: Hard Drives, Raid Controller, Operating System.
If these items are not installed, we cannot guarantee a fully workable solution on delivery.
Recommended next steps:
- Storage-ready: Add enterprise SSD/HDD with the correct caddies and a supported RAID/HBA.
- RAID-ready: Add a supported RAID controller or HBA. We can configure RAID levels.
- Operating System Ready: Add your preferred storage drives and RAID/HBA to create a bootable volume, so you can install your own operating system immediately after delivery. We will ensure all firmware is up to date and the system POSTs correctly.

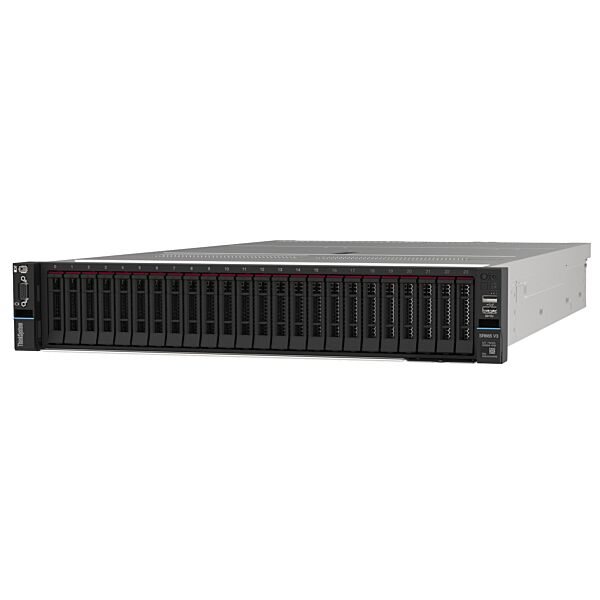

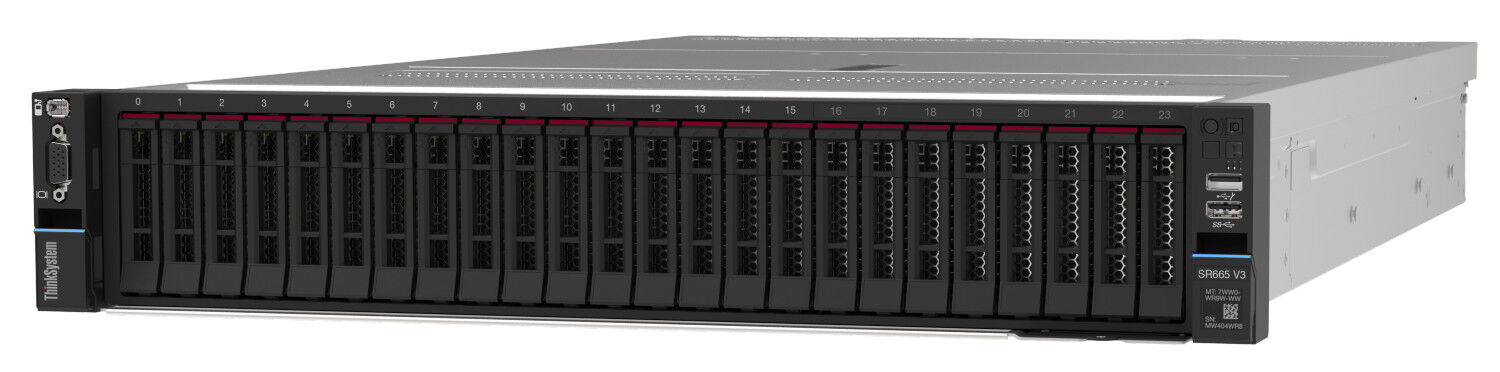

The Lenovo ThinkSystem SR665 V3 Rack Server is a high-performance 2U enterprise server powered by the AMD EPYC™ 9174F 16-core processor, 32GB DDR5 memory, and an ultra-efficient 1800W Titanium PSU. Designed for extreme performance workloads such as AI, HPC, analytics, and mission-critical enterprise applications.
Extreme performance CPU: AMD EPYC™ 9174F – 16 cores at 4.1GHz for unmatched speed.
Next-gen DDR5 memory: 32GB 4800MHz TruDDR5 for faster processing.
Massive storage capacity: Supports up to 24x 2.5" drives.
High-efficiency power: 1800W Titanium PSU for energy savings and stability.
Optimised cooling: Performance fan modules for heavy workloads.
Rapid deployment: Toolless rail kit for easy rack mounting.
Eco commitment: CO₂ offset package included.
Enterprise-grade support: 3-year Premier warranty with 24/7, 4-hour onsite repair.
Base Configuration Details of 7D9AA01QEA
| Form Factor | |
|---|---|
| Form Factor | Rackmount |
| CPU Details | |
| CPU | AMD EPYC™ 9174F – 16 cores running at a blazing 4.1GHz for top-tier performance in data-intensive workloads. |
| CPU - Max Qty | 2 |
| Installed CPU Cores | 16 |
| Memory Details | |
| Memory Installed | 32GB DDR5 TruDDR5 4800MHz – faster and more efficient than DDR4, enabling smooth multitasking and heavy workload handling. |
| Memory Slots - Max Qty | 24 |
| Hard Drive Details | |
| Hard Drives Installed | None |
| Hard Drive Bays - Max Qty | 24 |
| Backplane | 24x 2.5" SFF bays – ready for enterprise SSDs or SAS/SATA drives. |
| Power Supply Details | |
| Power Supply | 1800W Titanium-rated hot-swap PSU |
| Power Supplies - Max Qty | 2 |
| Other Specifications | |
| Optical Drive Pre-Installed | None |
| Raid Controller | None |
| Network | Integrated LAN ports for out-of-the-box connectivity. |
| Management | Lenovo XClarity Platinum – remote server management, monitoring, and updates. |
| Operating System Installed | None |
| Warranty and Extras | |
| Warranty | 3Yr ProSupport and Next Business Day On-Site Service |
| Included with this Server | Toolless Slide Rail Kit v2, 5x high-performance fan modules |
Size: 2U rack server – fits in standard server racks and supports up to 24x 2.5" drives.
Processor: AMD EPYC™ 9174F – 16 cores running at a blazing 4.1GHz for top-tier performance in data-intensive workloads.
Heatsink: High-performance heatsink included – ensures stable CPU cooling even at full load.
Memory: 32GB DDR5 TruDDR5 4800MHz – faster and more efficient than DDR4, enabling smooth multitasking and heavy workload handling.
Storage:
-
24x 2.5" SFF bays – ready for enterprise SSDs or SAS/SATA drives.
-
No RAID controller configured in this build (custom RAID options available).
Networking:
-
Integrated LAN ports for out-of-the-box connectivity.
-
Ready for optional 10GbE, 25GbE, or higher-speed NIC upgrades.
Power: 1800W Titanium-rated hot-swap PSU – maximum efficiency for high-performance components.
Cooling: 5x high-performance fan modules – optimised for heavy computational loads.
Management: Lenovo XClarity Platinum – remote server management, monitoring, and updates.
Security: TPM 2.0 – hardware-based encryption and tamper protection.
Rack Mounting: Toolless Slide Rail Kit v2 – quick installation into standard racks without tools.
Warranty: 3 Years Premier support with 24/7, 4-hour onsite response.
Extras: Keep Your Drive option and CO₂ offset package (40 metric tonnes).
| Estimated Shipping Weight | 50.000000 |
|---|---|
| Estimated Shipping Length | 100 |
| Estimated Shipping Width | 65 |
| Estimated Shipping Height | 15 |
| Operating System Installed | None |
