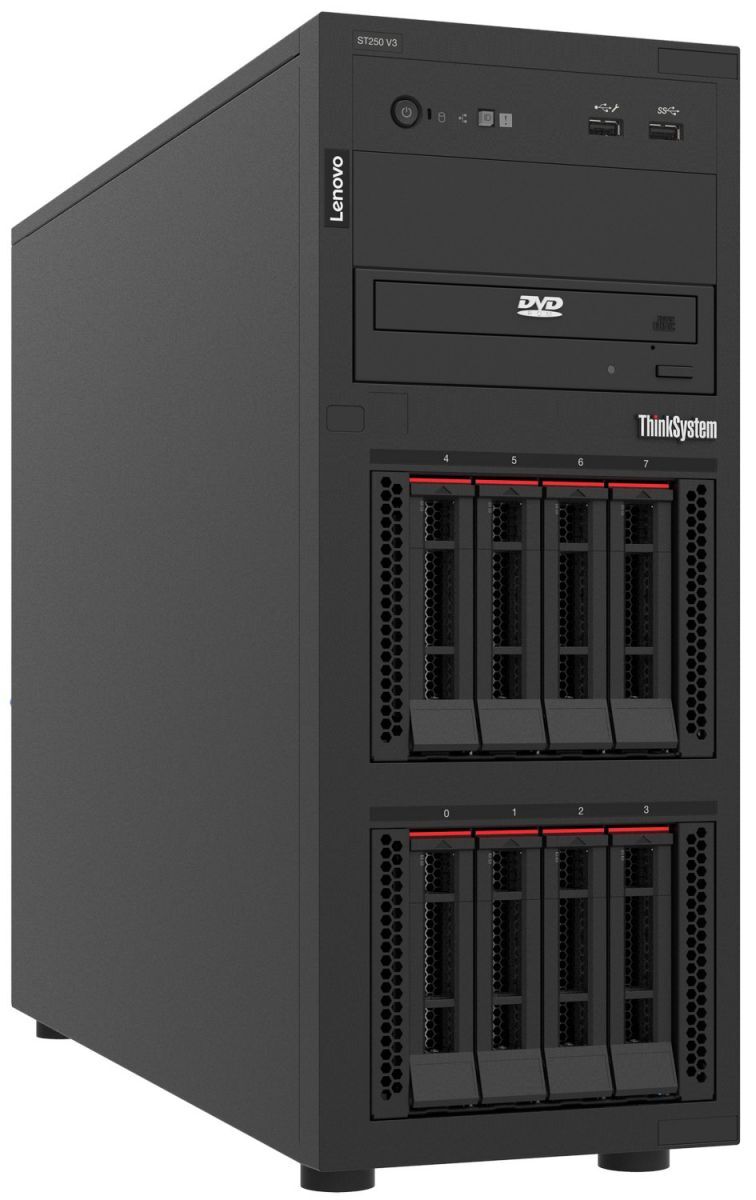

Lenovo ThinkSystem ST250 V3 Tower Server – Intel Xeon E-2436, 32GB DDR5, RAID 5350-8i, 8x2.5" Backplane, 800W PSU
Important: Not Ready to Run
To be work-ready and ready to install, this product still requires the following components: Hard Drives, Operating System.
If these items are not installed, we cannot guarantee a fully workable solution on delivery.
Recommended next steps:
- Storage-ready: Add enterprise SSD/HDD with the correct caddies and a supported RAID/HBA.
- Operating System Ready: Add your preferred storage drives and RAID/HBA to create a bootable volume, so you can install your own operating system immediately after delivery. We will ensure all firmware is up to date and the system POSTs correctly.
Base Configuration Details of 7DCEA02WEA
| Form Factor | |
|---|---|
| Form Factor | Tower |
| CPU Details | |
| CPU | Intel Xeon E-2436 (6 cores / 12 threads, 2.9GHz base, 65W TDP) |
| CPU - Max Qty | 1 |
| Installed CPU Cores | 6 |
| Memory Details | |
| Memory Installed | 32GB TruDDR5 4800MHz ECC UDIMM (2Rx8) |
| Memory Slots - Max Qty | 4 |
| Hard Drive Details | |
| Hard Drives Installed | None |
| Hard Drive Bays - Max Qty | 8 |
| Backplane | 8x 2.5" SAS/SATA hot-swap bays |
| Power Supply Details | |
| Power Supply | 800W Titanium Hot-Swap CRPS, 230V/115V (Eff. Mode: Performance) |
| Power Supplies - Max Qty | 2 |
| Other Specifications | |
| Optical Drive Pre-Installed | None |
| Raid Controller | ThinkSystem RAID 5350-8i PCIe Gen4, 12Gb/s SAS/SATA, supports up to 8 drives |
| Network | 1x Integrated Intel I219-LM Gigabit Ethernet port (RJ-45) |
| Management | Lenovo XClarity Controller (XCC) Standard |
| Operating System Installed | None |
| Warranty and Extras | |
| Warranty | 3 Year Basic / Next Business Day |
Lenovo ThinkSystem ST250 V3
Chassis: ST250 V3 Tower, 2.5" drive bay form factor
Processor: Intel Xeon E-2436 (6 cores / 12 threads, 2.9GHz base, 65W TDP)
Motherboard: ThinkSystem ST250 V3 board with ECC support
Memory: 32GB TruDDR5 4800MHz ECC UDIMM (2Rx8)
RAID Controller: ThinkSystem RAID 5350-8i PCIe Gen4, 12Gb/s SAS/SATA, supports up to 8 drives
Drive Backplane: 8x 2.5" SAS/SATA hot-swap bays
Power Supply: 800W Titanium Hot-Swap CRPS, 230V/115V (Eff. Mode: Performance)
Security: TPM 2.0 module, IPMI-over-LAN disabled
Intrusion Detection: Included via Intrusion Cable Kit
Power Cable: 2.8m, 10A/230V, C13 to CEE7-VII (EU)
| Estimated Shipping Weight | 25.000000 |
|---|---|
| Estimated Shipping Length | 70 |
| Estimated Shipping Width | 65 |
| Estimated Shipping Height | 25 |
